20K2R080A25-SRC20-A
20K2R080A25-SRC20-A
20K2R080A25-SRC20-A

20K2R080A25-SRC20-A

UGC DOR6756722
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$315.00 CAD - $315.00 CAD
$315.00 CAD
$315.00 CAD - $315.00 CAD
$315.00 CAD

Vendu en lots de : 1

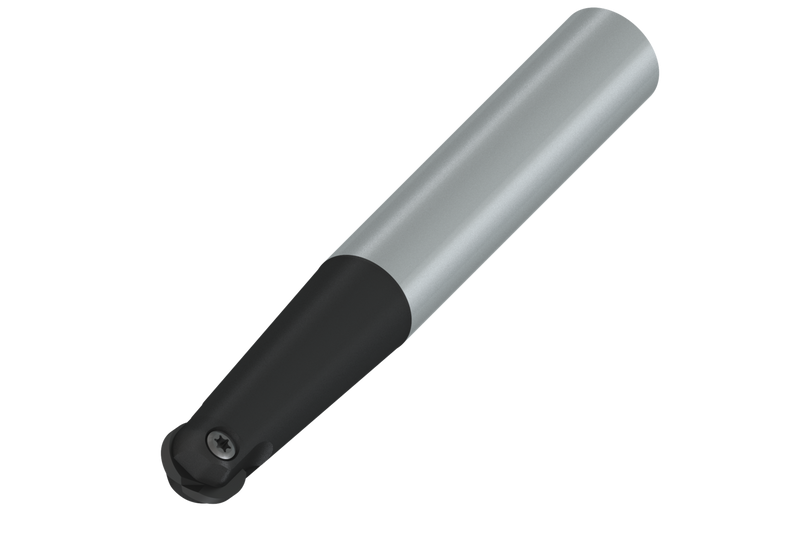

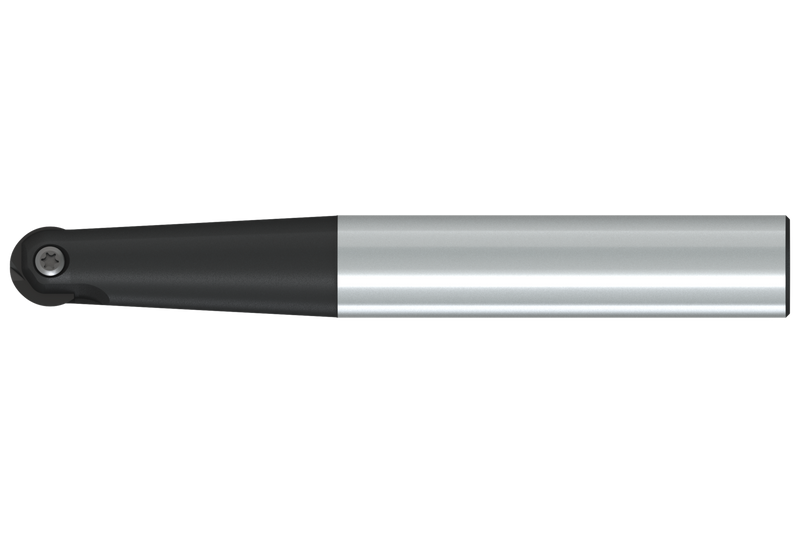

Fraise à copier qui utilise 1 plaquette simple face RC 20 ou RC 20-F, diamètre de coupe 20 mm avec queue cylindrique de 25 mm selon DIN 1835A, longueur fonctionnelle de 33,5 mm et longueur totale de 190 mm pour le fraisage par copiage avec une profondeur de coupe maximale de 0,6 à 3,2 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20K2R080A25-SRC20-A
Product Number6756722
Product FamilyK2-SRC

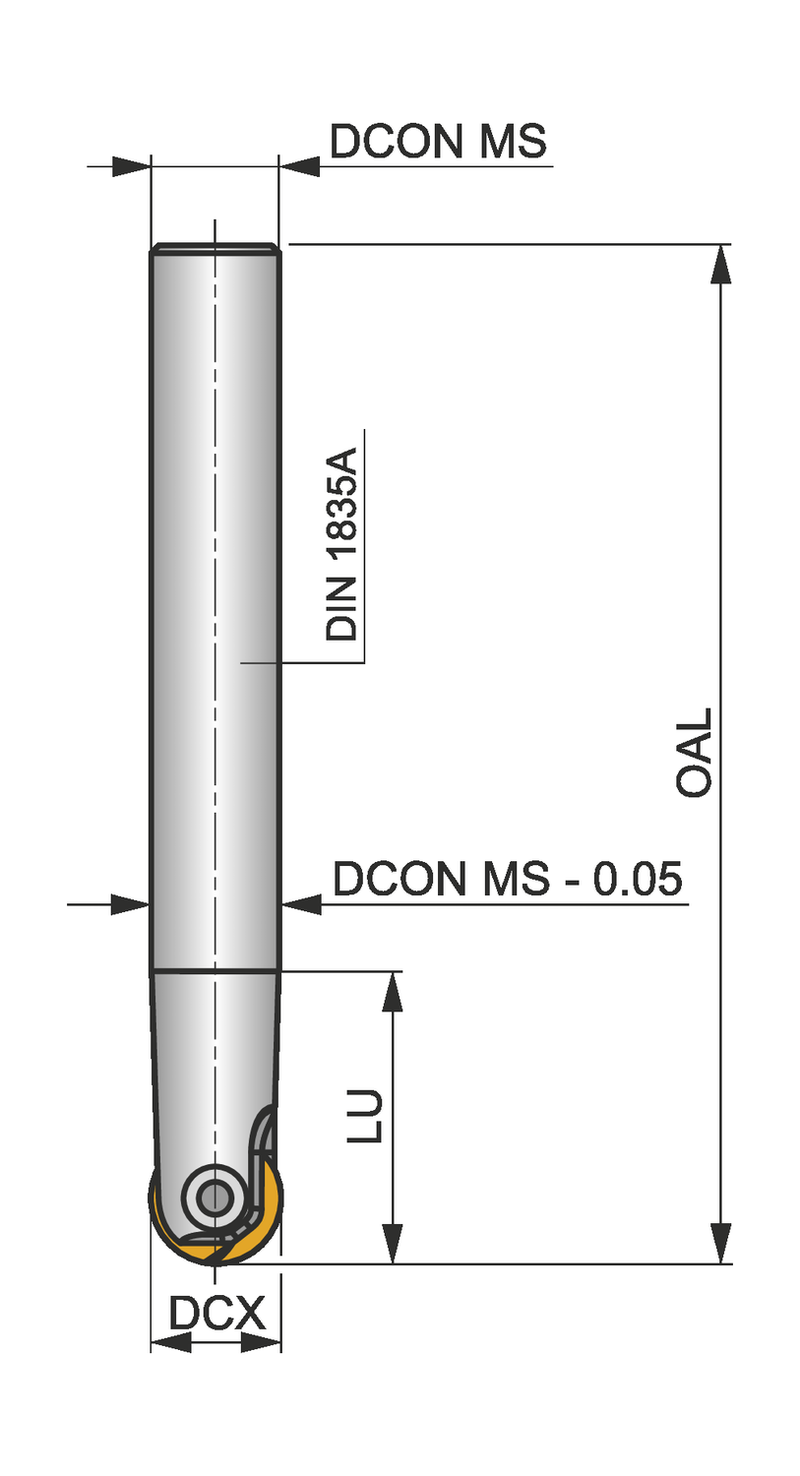

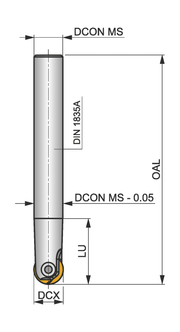

Dimensions
Overall Length — in (OAL)7.48"
Overall Length — mm (OAL)190.0 mm
Usable Length — mm (LU)33.5 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-SRC
ShankQueue cylindrique DIN 1835A
Direction of ToolGauche
Reference Numbers
EDP Number6756722
EAN3603602920881
File Type Download
20K2R080A25-SRC20-A — 3D Model STP Download
20K2R080A25-SRC20-A — Line Drawing PDF Download
