10K2R30M06-SRC10-A
10K2R30M06-SRC10-A
10K2R30M06-SRC10-A

10K2R30M06-SRC10-A

UGC DOR6757580
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$230.00 CAD - $230.00 CAD
$230.00 CAD
$230.00 CAD - $230.00 CAD
$230.00 CAD

Vendu en lots de : 1

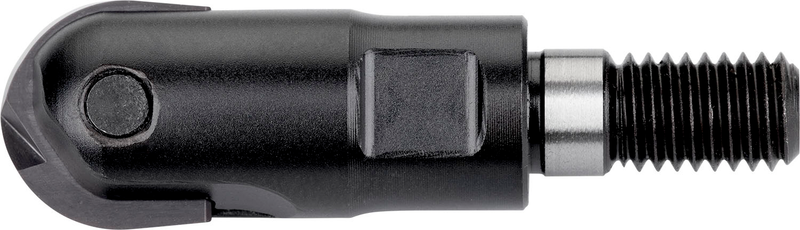

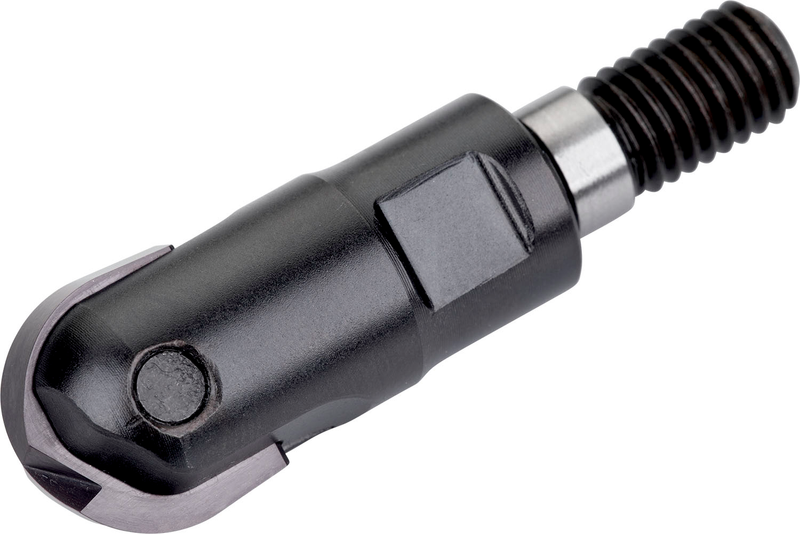

Fraise à copier utilisant 1 plaquette simple face RC 10 ou RC 10-F, diamètre de coupe de 10 mm avec queue filetée M6 pour porte-outils modulaires standards, longueur de projection de 30 mm pour le copiage avec une profondeur de coupe maximale de 0,6 à 3,2 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)10K2R30M06-SRC10-A
Product Number6757580
Product FamilyK2-SRC

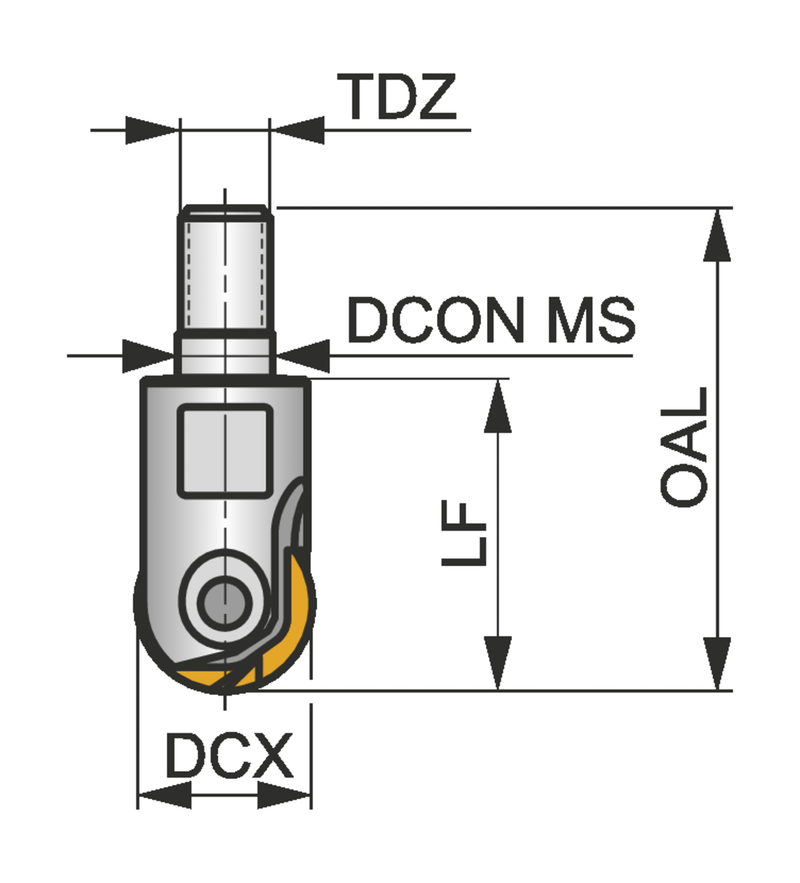

Dimensions
Overall Length — in (OAL)1.772"
Overall Length — mm (OAL)45.0 mm
Functional Length — mm (LF)30.0 mm
Connection Dia. — in (DCON)0.256"
Connection Dia. — mm (DCON)6.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M6
Tool Information
Tool DesignK2-SRC
ShankRaccord fileté
Direction of ToolGauche
Reference Numbers
EDP Number6757580
EAN3603602929365
File Type Download
10K2R30M06-SRC10-A — 3D Model STP Download
10K2R30M06-SRC10-A — Line Drawing PDF Download
