12K2R30M06-SRC12-A
12K2R30M06-SRC12-A
12K2R30M06-SRC12-A

12K2R30M06-SRC12-A

UGC DOR7051473
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$241.00 CAD - $241.00 CAD
$241.00 CAD
$241.00 CAD - $241.00 CAD
$241.00 CAD

Vendu en lots de : 1

Fraise à copier utilisant 1 plaquette simple face RC 12 ou RC 12-F, diamètre de coupe 12mm avec queue filetée M6 pour porte-outils modulaires standard, longueur de dépassement de 30mm pour le fraisage à copier avec une profondeur de coupe maximale de 0,6-3,2mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)12K2R30M06-SRC12-A
Product Number7051473
Product FamilyK2-SRC

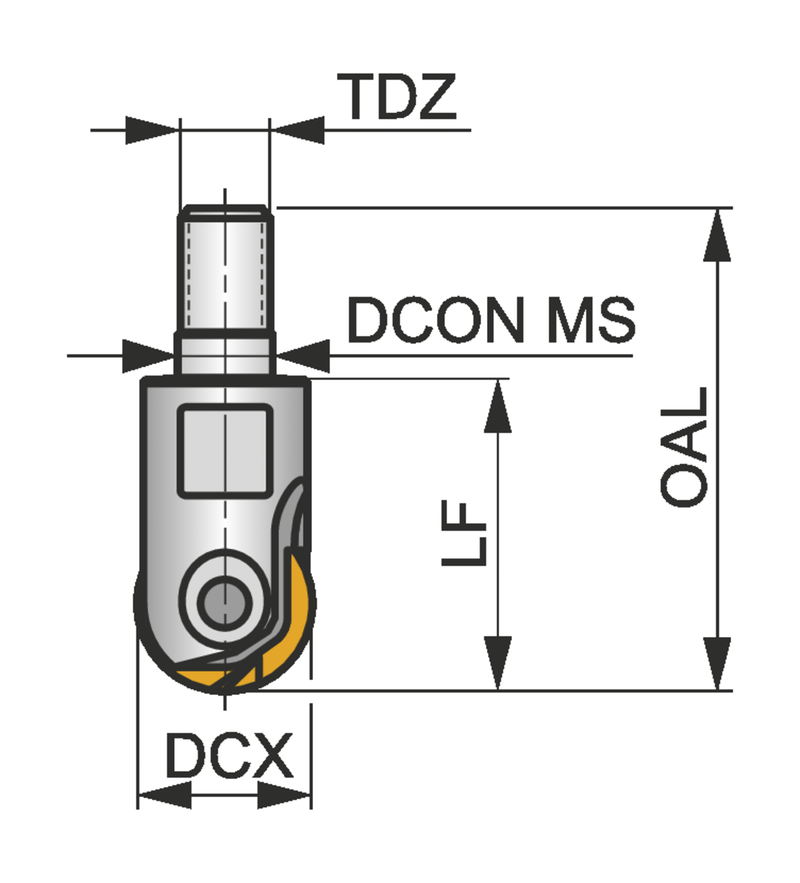

Dimensions
Overall Length — in (OAL)1.772"
Overall Length — mm (OAL)45.0 mm
Functional Length — mm (LF)30.0 mm
Connection Dia. — in (DCON)0.256"
Connection Dia. — mm (DCON)6.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M6
Tool Information
Tool DesignK2-SRC
ShankRaccord fileté
Reference Numbers
EDP Number7051473
EAN3603603117235
File Type Download
12K2R30M06-SRC12-A — 3D Model STP Download
12K2R30M06-SRC12-A — Line Drawing PDF Download
