100A08R-S45ON06-C
100A08R-S45ON06-C
100A08R-S45ON06-C

100A08R-S45ON06-C

UGC DOR8347588
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,335.00 CAD - $1,335.00 CAD
$1,335.00 CAD
$1,335.00 CAD - $1,335.00 CAD
$1,335.00 CAD

Vendu en lots de : 1

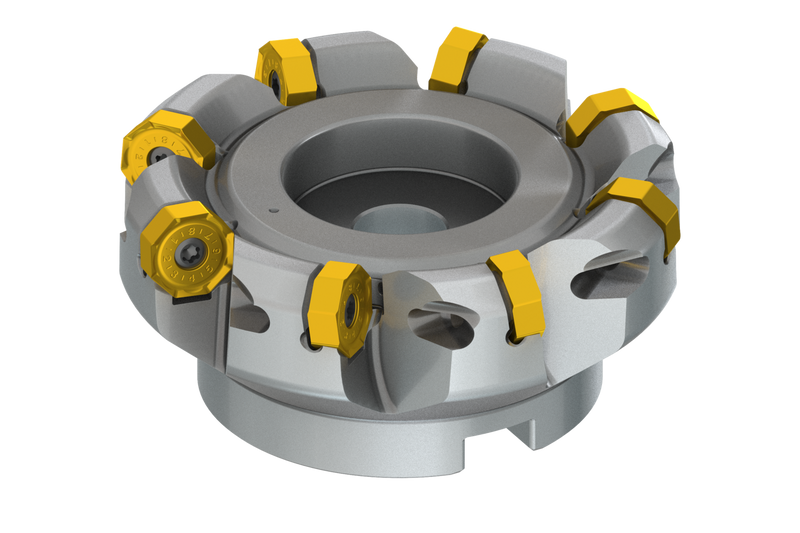

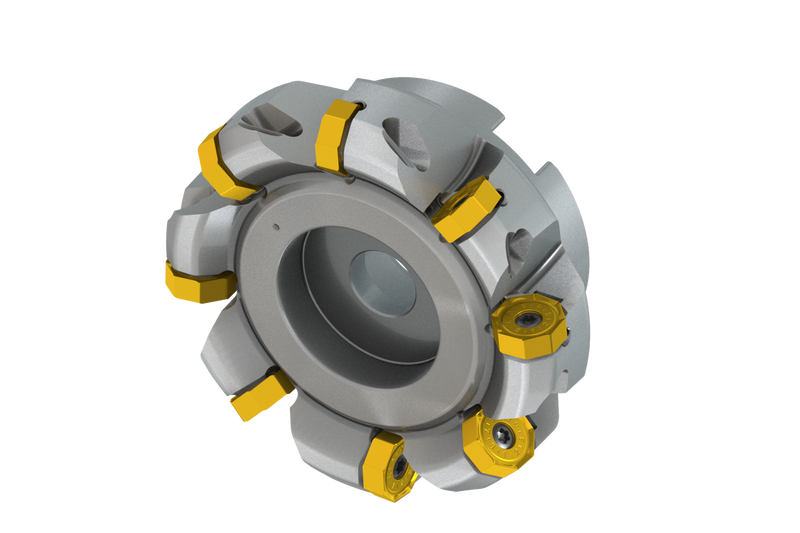

Fraise à surfacer à géométrie double négative utilisant 8 plaquettes double face ONMX 0605.., ONMX 0605..-W ou SNMX 1705.., diamètre de coupe de 100 mm à 110,8 mm maximum avec un angle d'approche de 43° et un alésage de raccordement de 32 mm selon DIN 8030-A, longueur fonctionnelle de 50 mm et, arrosage par l'intérieur et pas différentiel pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 4 mm pour ON.. et 7 mm pour SN..

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A08R-S45ON06-C
Product Number8347588
Product FamilySON06C
Insert Geometry
Depth of Cut Max — mm (APMX)4.0 mm

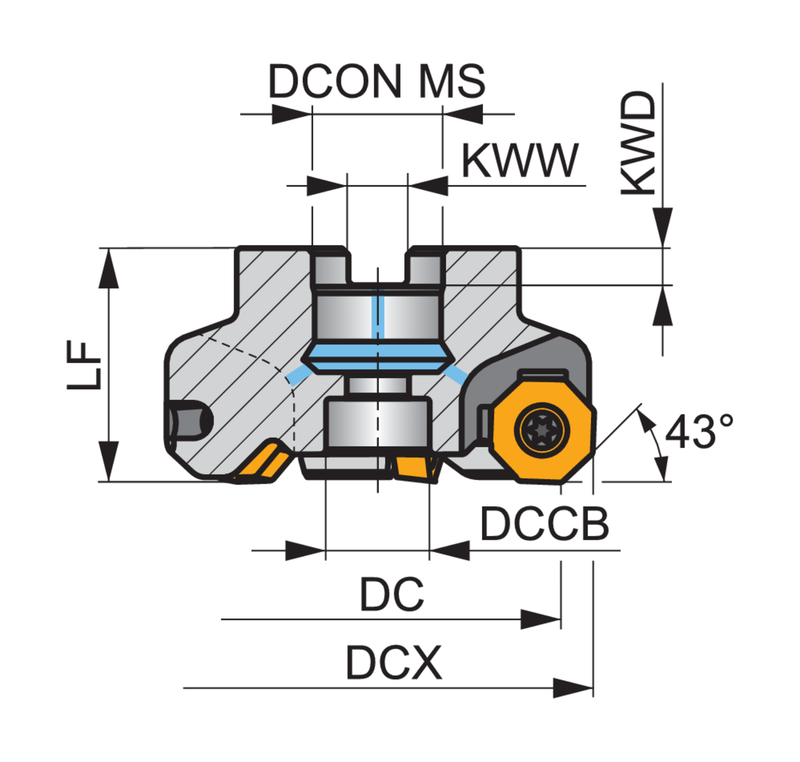

Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSON06C
ShankFraise hémisphérique DIN 8030 A
Through Coolant Yes
Reference Numbers
EDP Number8347588
EAN3603604105330
File Type Download
100A08R-S45ON06-C — 3D Model STP Download
100A08R-S45ON06-C — 2D Model DXF Download
100A08R-S45ON06-C — Line Drawing PDF Download
