250A05R-IS19PD09-C
250A05R-IS19PD09-C
250A05R-IS19PD09-C

250A05R-IS19PD09-C

UGC DOR6792980
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$895.00 CAD - $895.00 CAD
$895.00 CAD
$895.00 CAD - $895.00 CAD
$895.00 CAD

Vendu en lots de : 1

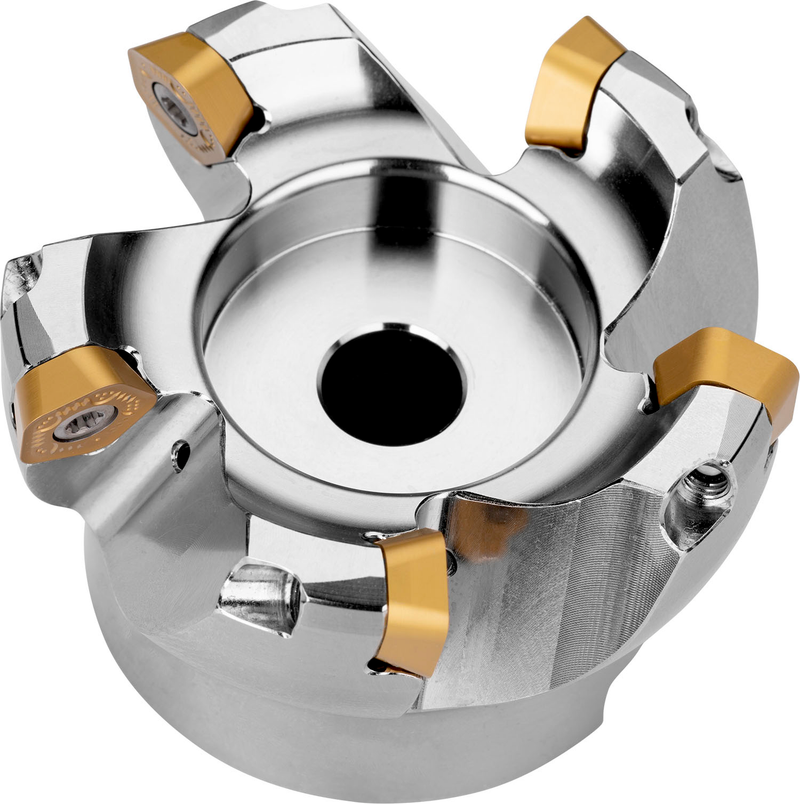

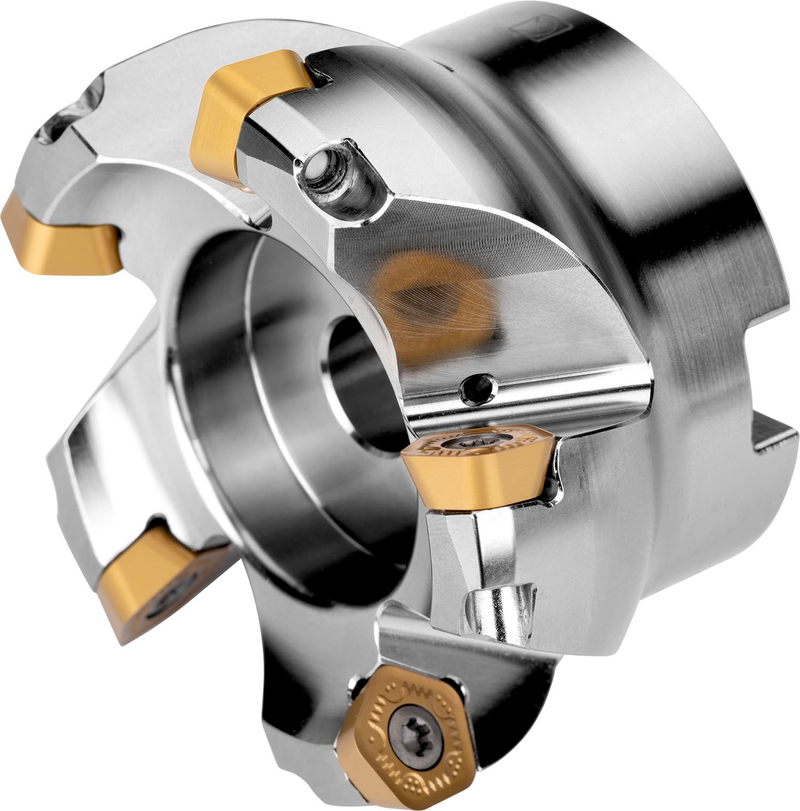

Fraise à avance rapide à géométrie positive/négative utilisant 5 plaquettes simple-face PD.X 09, PDKT 09 ou PDMW 09, diamètre de coupe de 2,500'', angle d'attaque de 19° et alésage de raccordement de 0,750'' selon DIN 8030-A, longueur de dépassement de 1,575'', arrosage central pour le surfaçage avec une profondeur de coupe maximale de 0,079''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250A05R-IS19PD09-C
Product Number6792980
Product FamilyISPD09

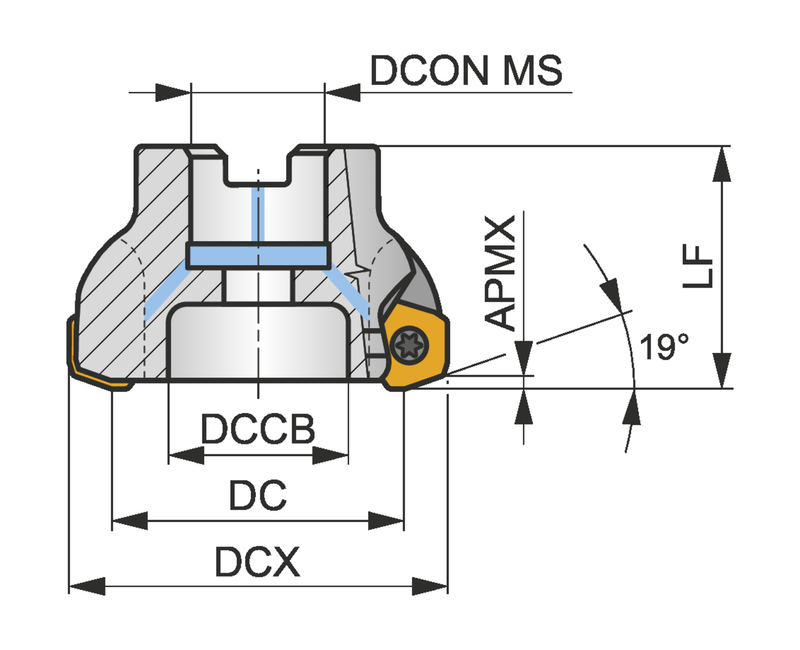

Dimensions
Cutting Diameter — in (DC)1.931"
Cutting Diameter — mm (DC)49.0 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSPD09
ShankFraise-scie DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6792980
EAN3603602988089
File Type Download
250A05R-IS19PD09-C — 3D Model STP Download
250A05R-IS19PD09-C — 2D Model DXF Download
250A05R-IS19PD09-C — Line Drawing PDF Download
