100A07R-S45SN12Z-C
100A07R-S45SN12Z-C
100A07R-S45SN12Z-C

100A07R-S45SN12Z-C

UGC DOR6758342
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$937.00 CAD - $937.00 CAD
$937.00 CAD
$937.00 CAD - $937.00 CAD
$937.00 CAD

Vendu en lots de : 1

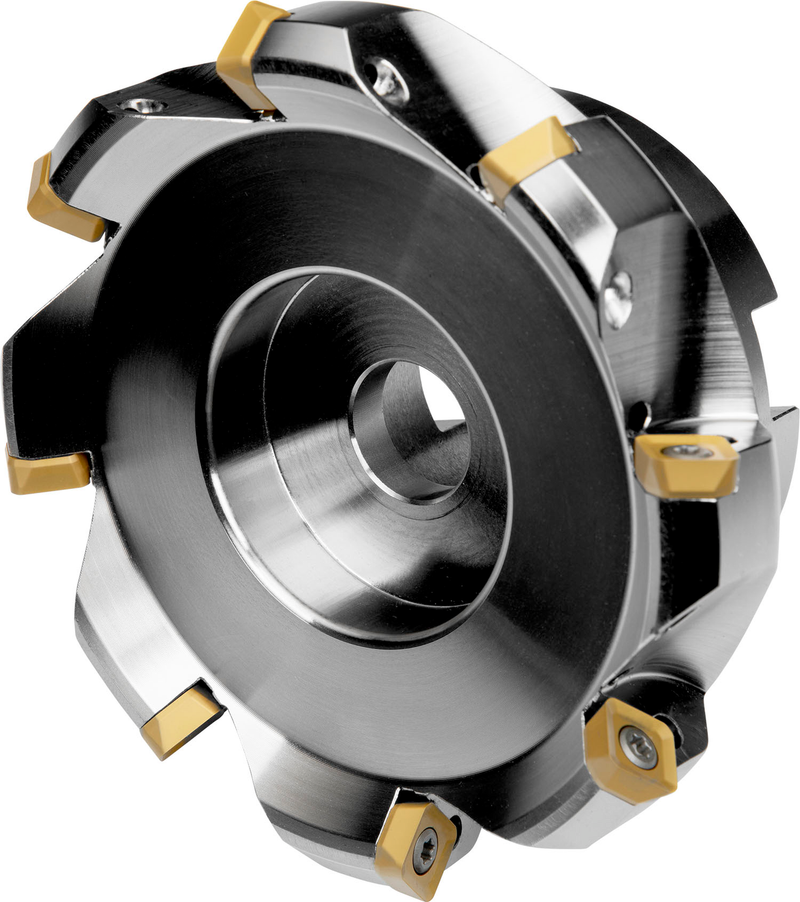

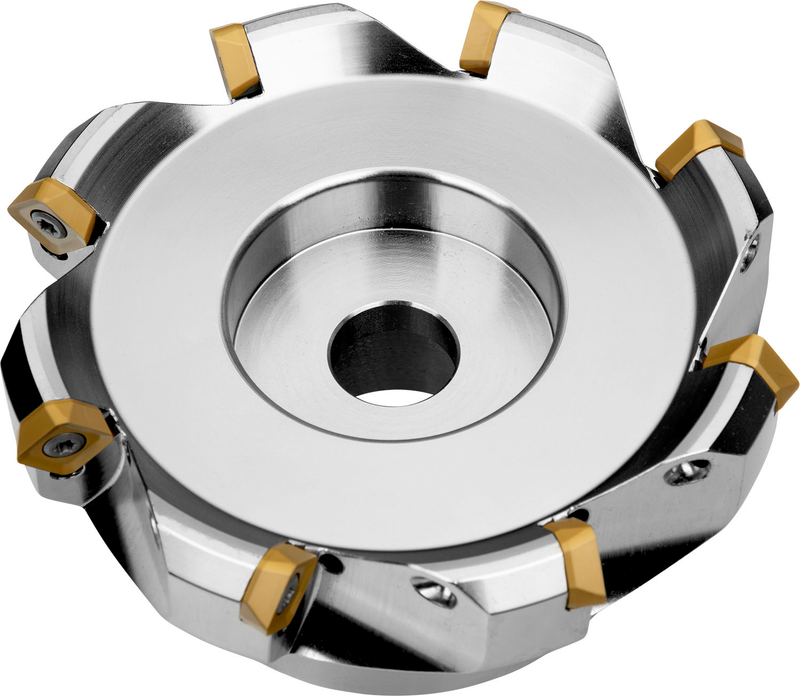

Fraise à surfacer à géométrie positive/négative utilisant 7 plaquettes double face SNKT 1205AZ... ou SNMT 1205AZ..., diamètre de coupe de 100 à 115 mm maximum avec un angle d'approche de 45° et un alésage de connexion de 32 mm selon DIN 8030-A, longueur de dépassement de 50 mm, arrosage central pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 6,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A07R-S45SN12Z-C
Product Number6758342
Product FamilySSN12Z
Insert Geometry
Depth of Cut Max — mm (APMX)6.5 mm

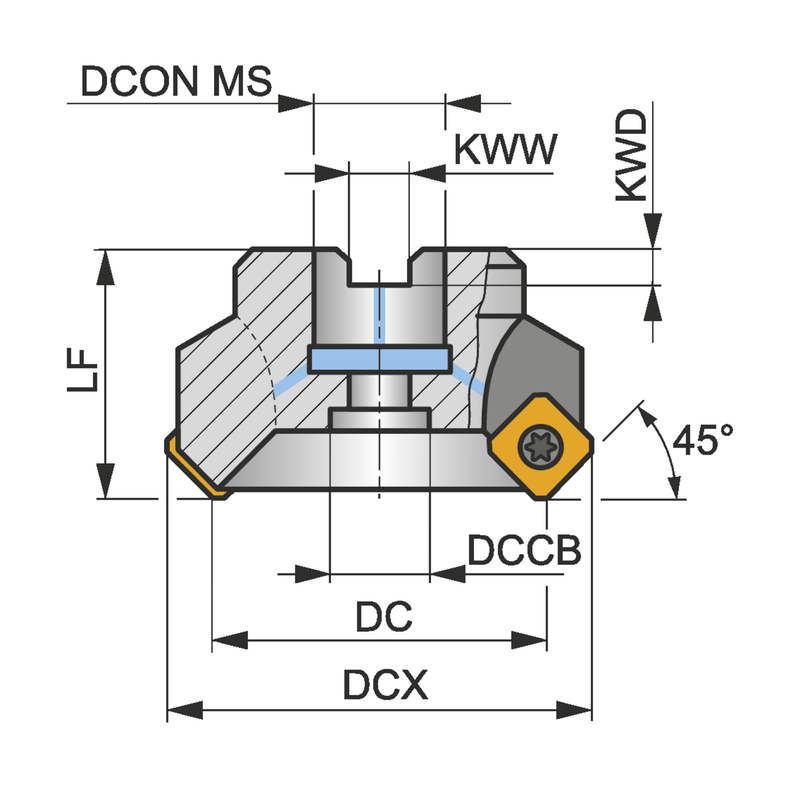

Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)7
Tool Information
Tool DesignSSN12Z
ShankFraise hémisphérique DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6758342
EAN3603602936882
File Type Download
100A07R-S45SN12Z-C — 3D Model STP Download
100A07R-S45SN12Z-C — 2D Model DXF Download
100A07R-S45SN12Z-C — Line Drawing PDF Download
