FGR-10B-L
FGR-10B-L

FGR-10B-L

UGC PRE7466381
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.39 CAD - $35.39 CAD
$35.39 CAD
$35.39 CAD - $35.39 CAD
$35.39 CAD

Vendu en lots de : 1

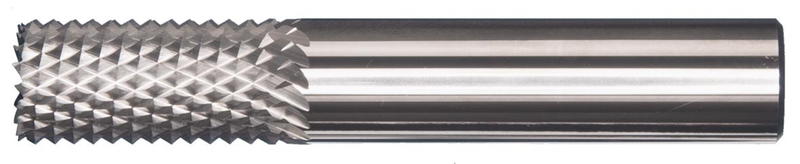

Défonceuse avec coupe frontale de type fraise, diamètre 1/4" avec longueur de coupe de 1", longueur totale de 3" et queue de 1/4", carbure monobloc avec finition brillante, style de cannelure diamantée GRP avec bords espacés moyens pour le contournage, le ponçage des angles droits et la découpe de formes dans les polymères renforcés de fibre de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)FGR-10B-L
GradeLumineux
Product Number7466381
Product FamilyGRF-B

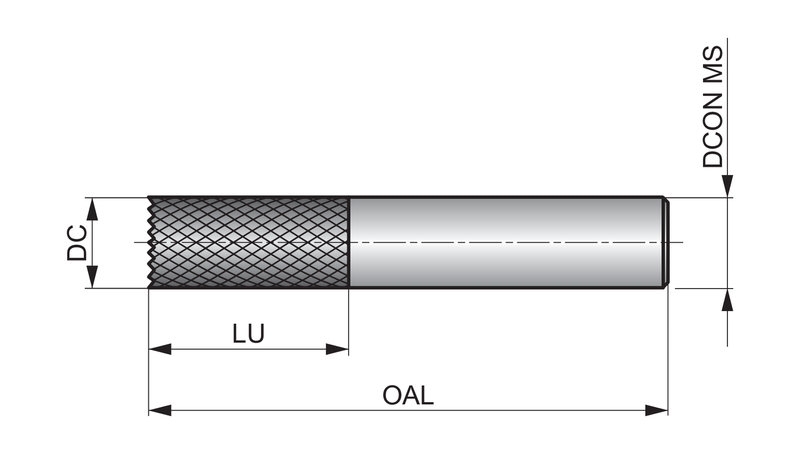

Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Drill Point Angle (SIG)180°
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466381
EAN7320760788516
File Type Download
FGR-10B-L — Line Drawing PDF Download
