R101/8-T
R101/8-T

R101/8-T

UGC PRE7652421
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.80 CAD - $3.80 CAD
$3.80 CAD
$3.80 CAD - $3.80 CAD
$3.80 CAD

Vendu en lots de : 12

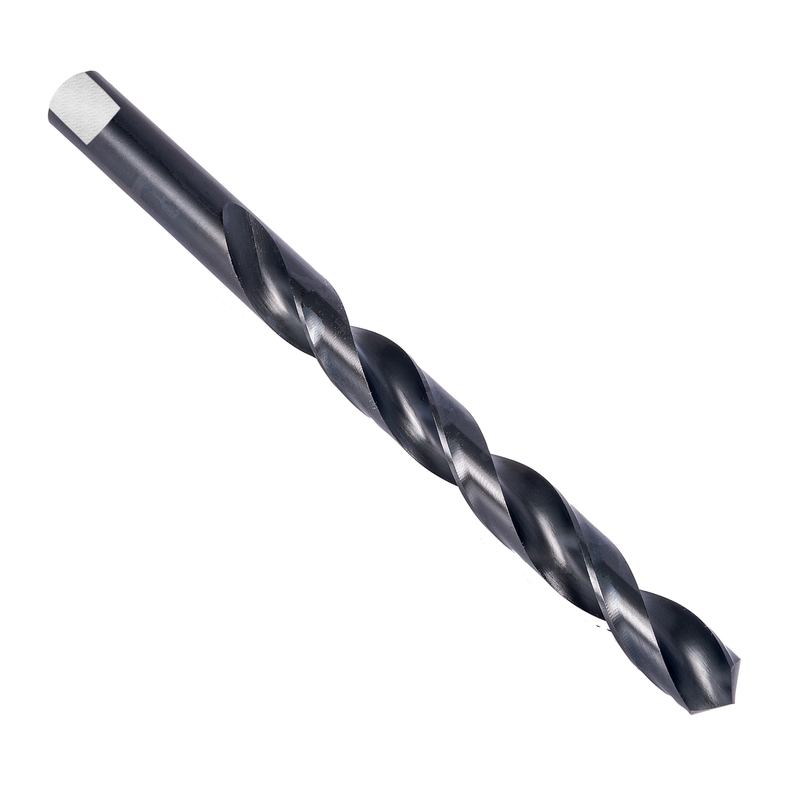

Foret série courte à queue cylindrique et carré d’entraînement, diamètre 0,1250" (1/8) d’une longueur totale de 2.3/4" et d’une longueur de goujure de 1.5/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition de revenu à la vapeur pour perçage 4xD sans débourrage dans l’acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R101/8-T
GradeTrempé à la vapeur
Product Number7652421
Product FamilyR10
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Flute Length — in (LCF)1.625"
Flute Length — mm (LCF)41.28 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique avec soie
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number7652421
EAN7320760850435
File Type Download
R101/8-T — 3D Model STP Download
R101/8-T — Line Drawing PDF Download
