R1017/64-T
R1017/64-T

R1017/64-T

UGC PRE7652422
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.74 CAD - $8.74 CAD
$8.74 CAD
$8.74 CAD - $8.74 CAD
$8.74 CAD

Vendu en lots de : 12

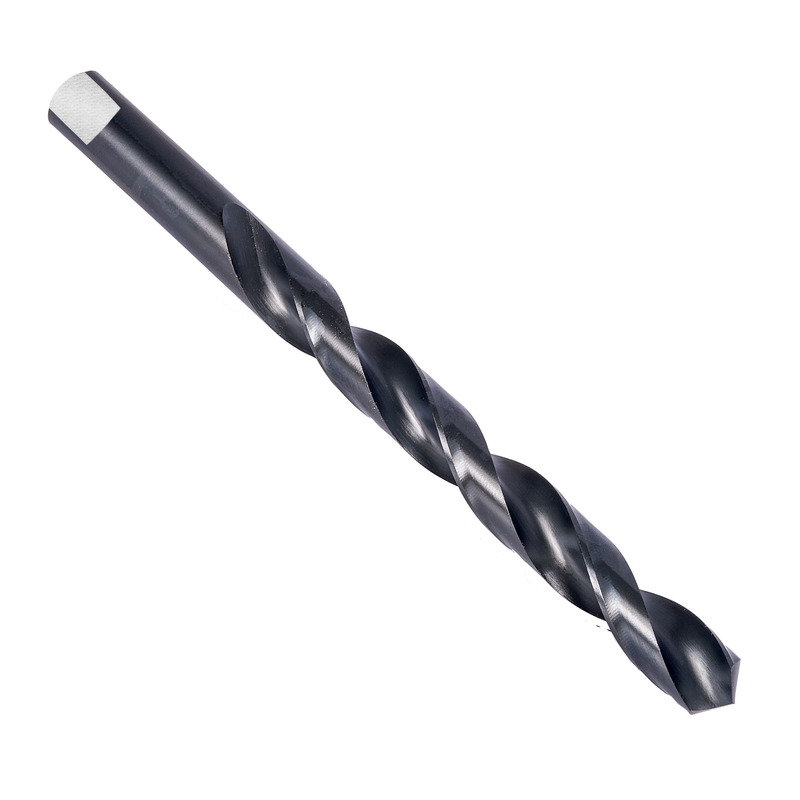

Foret jobber à queue cylindrique avec tenon, diamètre 0,2656" (17/64) avec une longueur totale de 4,1/8" et une longueur de goujure de 2,7/8" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R1017/64-T
GradeTrempé à la vapeur
Product Number7652422
Product FamilyR10
Dimensions
Cutting Diameter — in (DC)0.2656"
Cutting Diameter — mm (DC)6.75 mm
Cutting Diameter — Fractional17/64
Overall Length — in (OAL)4.125"
Overall Length — mm (OAL)104.78 mm
Flute Length — in (LCF)2.875"
Flute Length — mm (LCF)73.03 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2656"
Connection Dia. — mm (DCON)6.75 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique avec soie
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number7652422
EAN7320760850442
File Type Download
R1017/64-T — 3D Model STP Download
R1017/64-T — Line Drawing PDF Download
