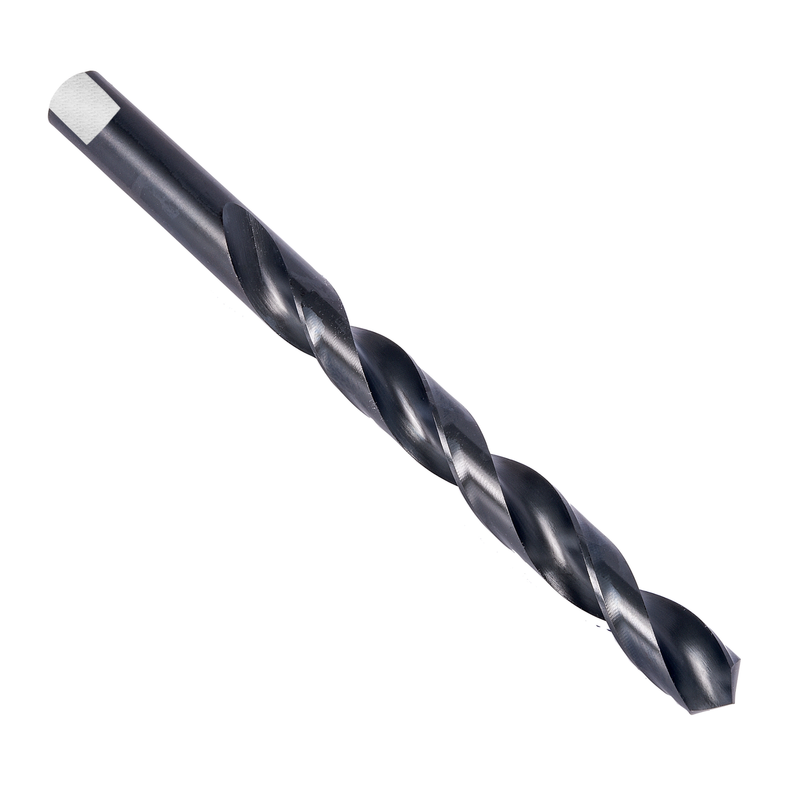

R103/8-T
R103/8-T

R103/8-T

UGC PRE7652424
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.64 CAD - $14.64 CAD
$14.64 CAD
$14.64 CAD - $14.64 CAD
$14.64 CAD

Vendu en lots de : 6

Foret jobber à queue cylindrique avec tenon, diamètre 0,3750" (3/8) avec une longueur totale de 5" et une longueur de coupe de 3.5/8" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R103/8-T
GradeTrempé à la vapeur
Product Number7652424
Product FamilyR10
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)5.0"
Overall Length — mm (OAL)127.0 mm
Flute Length — in (LCF)3.625"
Flute Length — mm (LCF)92.08 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique avec soie
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number7652424
EAN7320760850466
File Type Download
R103/8-T — 3D Model STP Download
R103/8-T — Line Drawing PDF Download
