P6138.0X6.0
P6138.0X6.0
P6138.0X6.0

P6138.0X6.0

UGC DOR7059530
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$40.46 CAD - $40.46 CAD
$40.46 CAD
$40.46 CAD - $40.46 CAD
$40.46 CAD

Vendu en lots de : 1

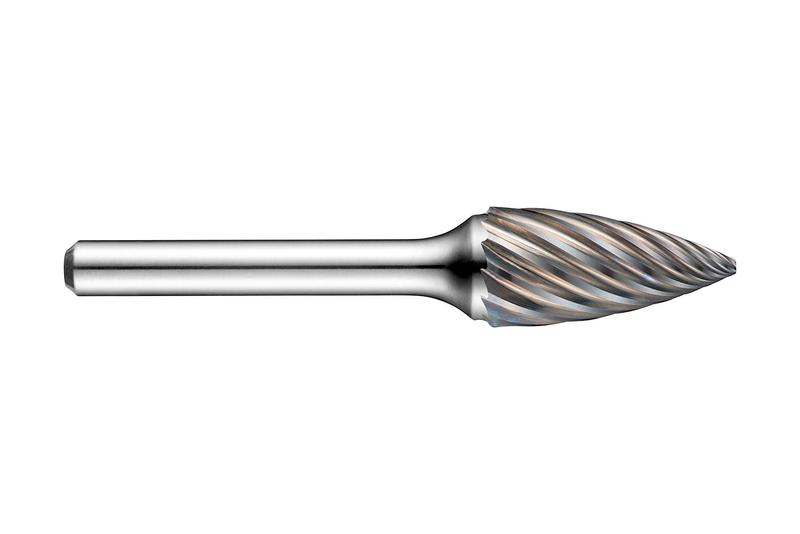

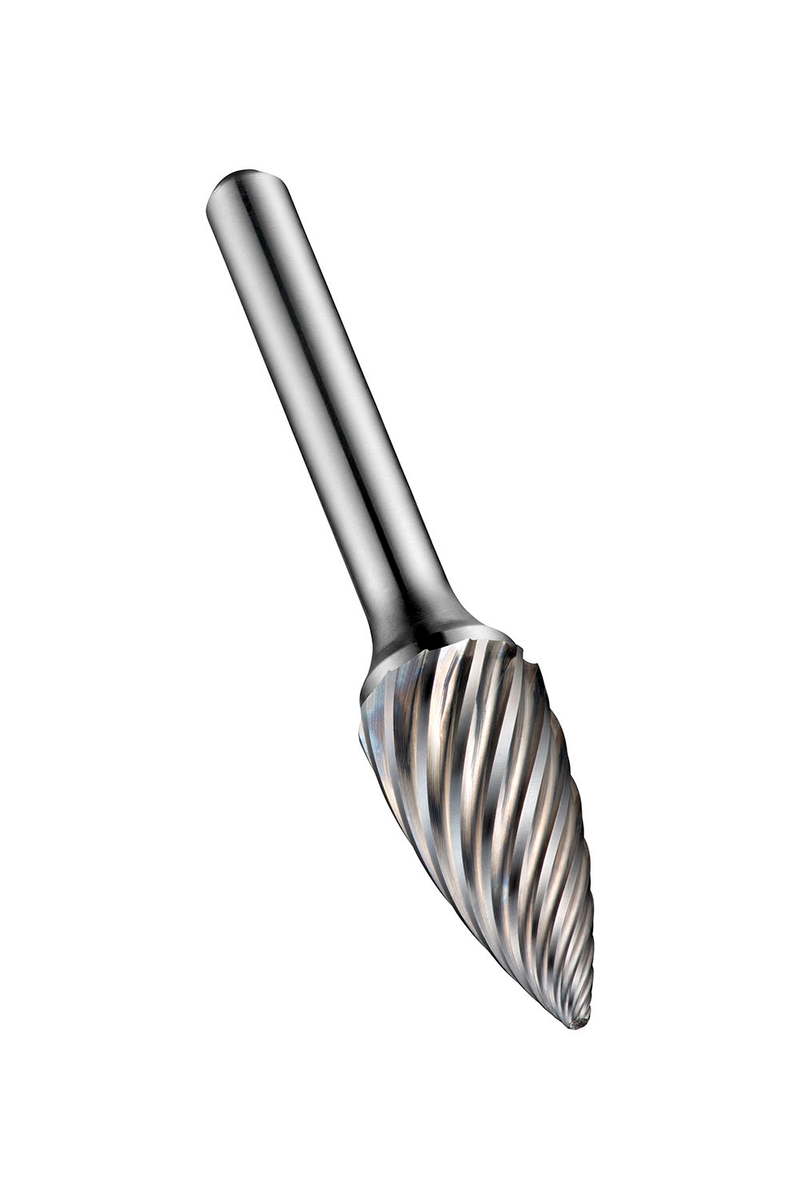

Fraise-lime conique (forme G), diamètre 8 mm, longueur de coupe 19 mm, longueur totale 64 mm et queue 6 mm, carbure monobloc avec queue en acier trempé et revenu et finition brillante, lime-fraise à denture unique VA avec bords moyennement espacés pour un contournage multi-angle et la coupe d'angles étroits dans des zones difficiles d'accès en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P6138.0X6.0
GradeLumineux
Product Number7059530
Product FamilyP613
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number47059530
EAN7320760693063
File Type Download

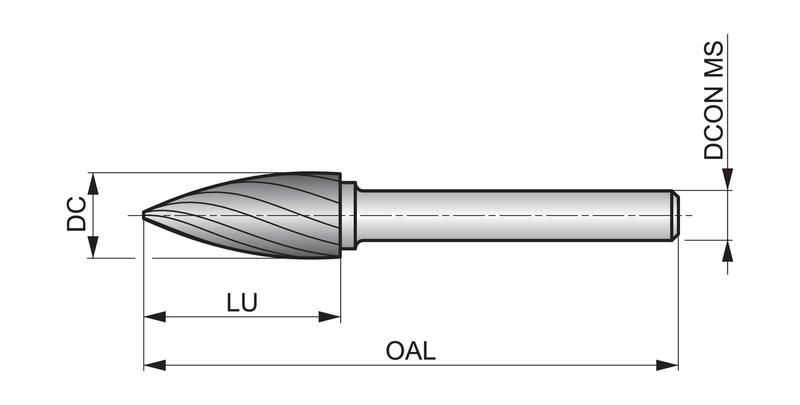

P6138.0X6.0 — Line Drawing PDF Download
