SN-10SDC
SN-10SDC

SN-10SDC

UGC PRE7466372
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.96 CAD - $13.96 CAD
$13.96 CAD
$13.96 CAD - $13.96 CAD
$13.96 CAD

Vendu en lots de : 1

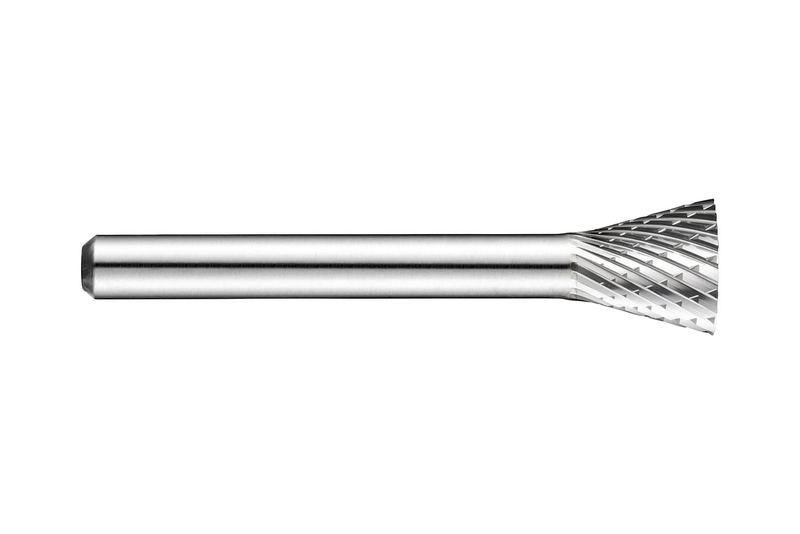

Fraise conique inversée (forme N), diamètre 1/4" avec longueur de coupe 1/4", longueur totale 1,3/4" et queue 1/8", à pointe en carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure à double taille DC avec bords rapprochés pour la réalisation de coupes en V inversées et de chanfreins arrière dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SN-10SDC
GradeLumineux
Product Number7466372
Product FamilySN-DC
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)1.75"
Overall Length — mm (OAL)44.45 mm
Usable Length — mm (LU)6.35 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)10°
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466372
EAN7320760788424
File Type Download

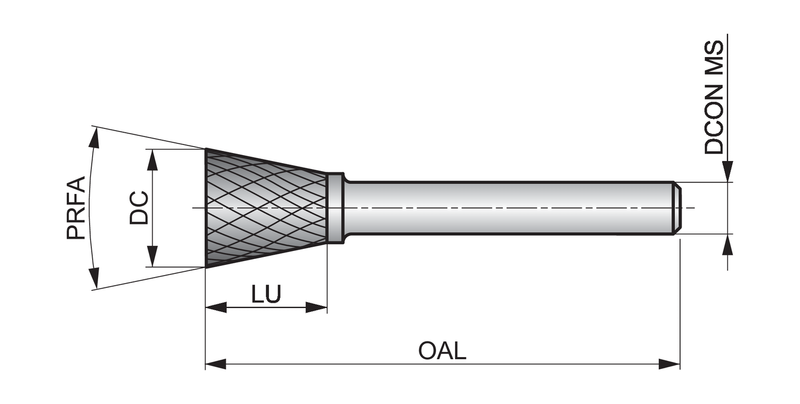

SN-10SDC — Line Drawing PDF Download
