P1009.3
P1009.3
P1009.3

P1009.3

UGC DOR7806114
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.86 CAD - $28.86 CAD
$28.86 CAD
$28.86 CAD - $28.86 CAD
$28.86 CAD

Vendu en lots de : 1

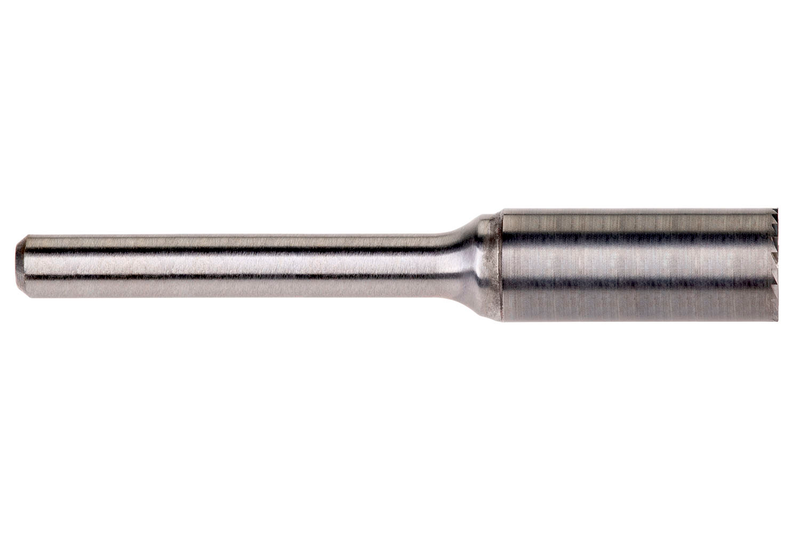

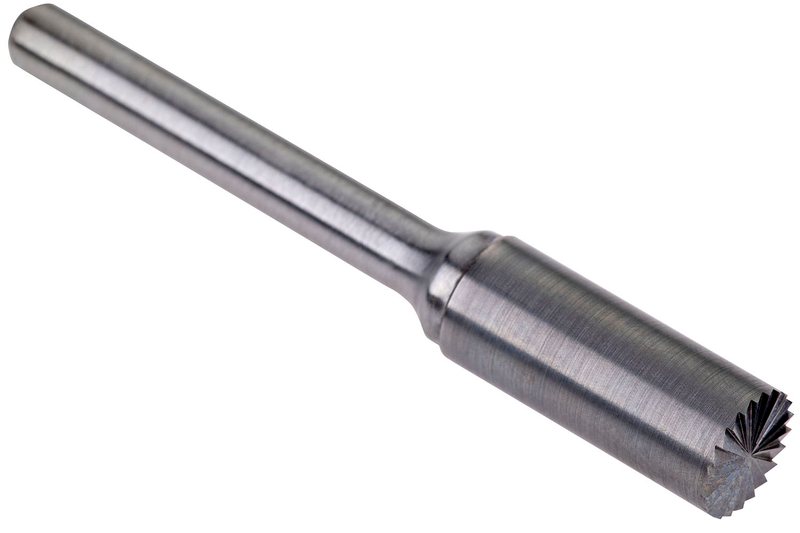

Fraise-lime à bout coupé, diamètre 9,3 mm, longueur totale 65 mm et tige de 6 mm, à pointe en carbure avec tige en acier trempé et durci et finition brillante, à une seule lèvre avec des bords moyennement espacés pour meuler à plat la surface d'un boulon cassé dans l'acier et l'acier moulé et l'acier inoxydable ferritique, martensitique et austénitique

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P1009.3
GradeLumineux
Product Number7806114
Product FamilyP100
Dimensions
Cutting Diameter — in (DC)0.3661"
Cutting Diameter — mm (DC)9.3 mm
Overall Length — in (OAL)2.5591"
Overall Length — mm (OAL)65.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardNorme de travail
Reference Numbers
EDP Number7806114
EAN7320760886236
File Type Download

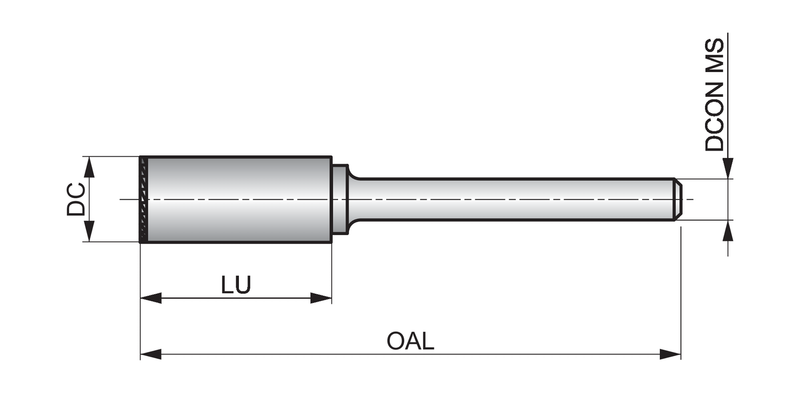

P1009.3 — Line Drawing PDF Download
