P1016.4
P1016.4
P1016.4

P1016.4

UGC DOR7806117
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.20 CAD - $29.20 CAD
$29.20 CAD
$29.20 CAD - $29.20 CAD
$29.20 CAD

Vendu en lots de : 1

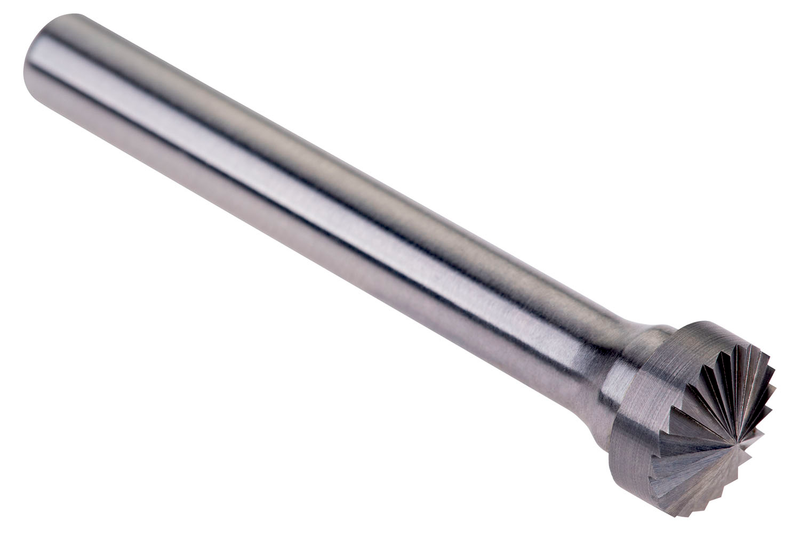

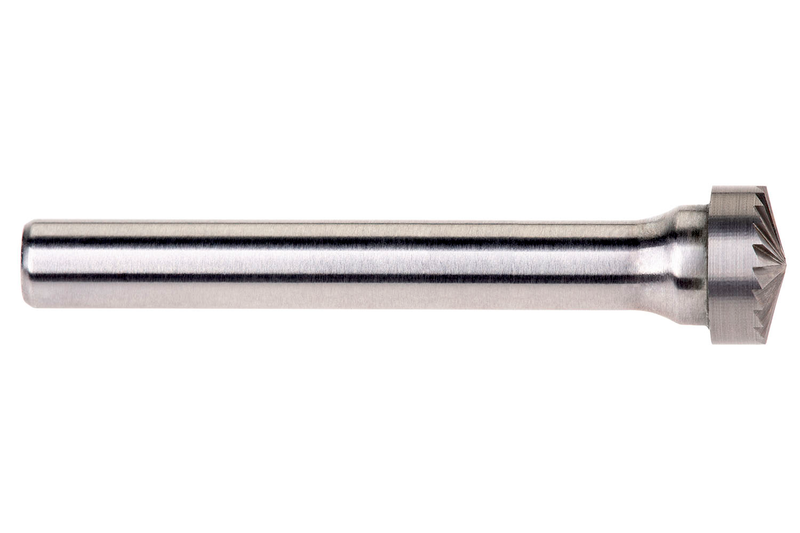

Fraise à chanfreiner 150°, diamètre 6,4 mm, longueur totale 50 mm et queue de 6 mm, à pointe carbure avec queue en acier trempé et revenu et finition brillante, à une seule taille avec des arêtes espacées pour meuler un logement de chanfrein dans la surface aplatie d'un boulon cassé dans l'acier et l'acier moulé et l'acier inoxydable ferritique, martensitique et austénitique

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P1016.4
GradeLumineux
Product Number7806117
Product FamilyP101

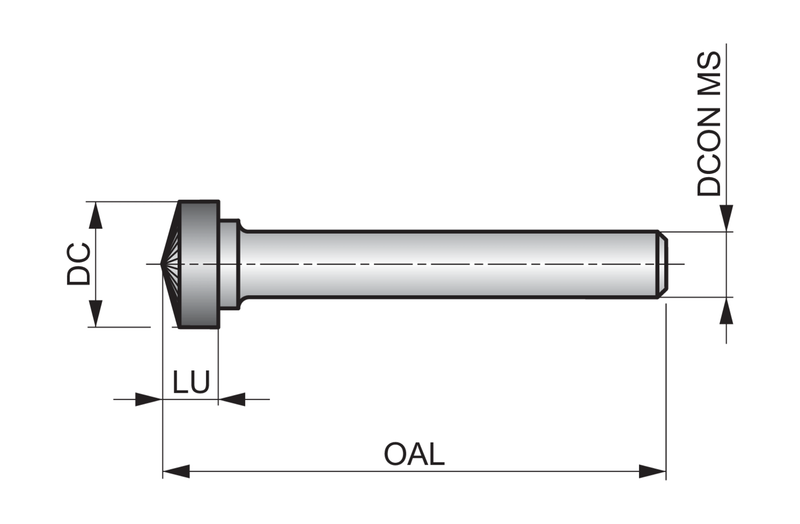

Dimensions
Cutting Diameter — in (DC)0.252"
Cutting Diameter — mm (DC)6.4 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)5.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)150°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number7806117
EAN7320760886267
File Type Download
P1016.4 — Line Drawing PDF Download
