63A03R-S90SN11N5
63A03R-S90SN11N5
63A03R-S90SN11N5

63A03R-S90SN11N5

UGC DOR6758323
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,310.00 CAD - $1,310.00 CAD
$1,310.00 CAD
$1,310.00 CAD - $1,310.00 CAD
$1,310.00 CAD

Vendu en lots de : 1

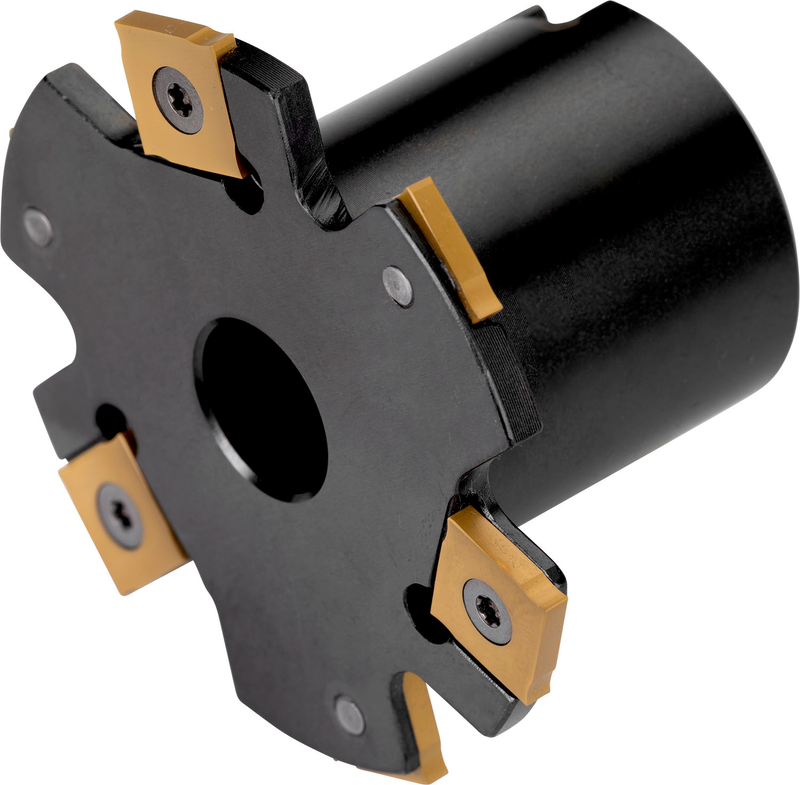

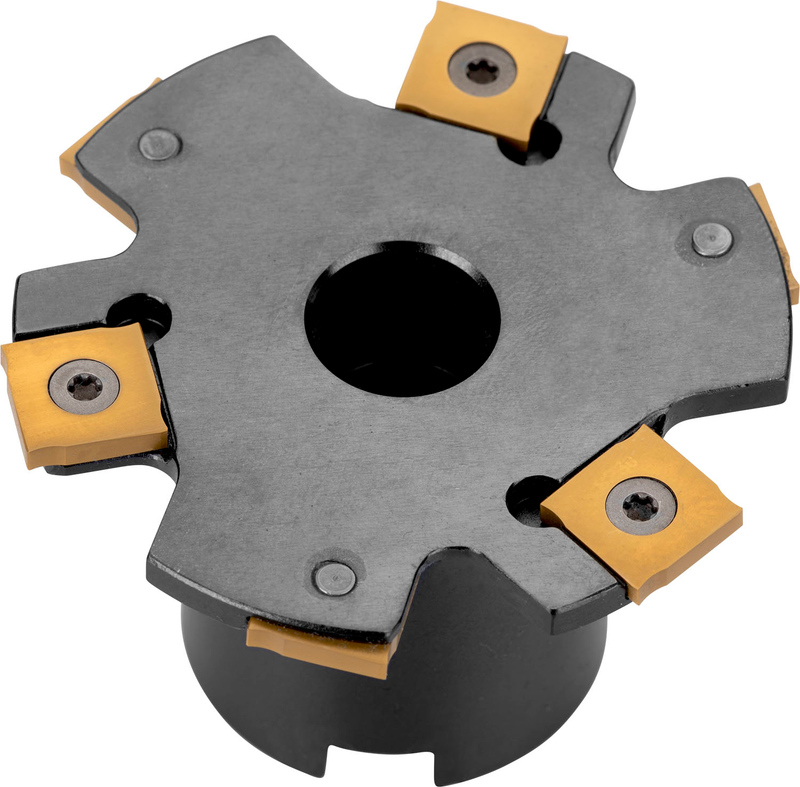

Fraise à disque à géométrie positive/négative qui utilise 6 plaquettes SNHQ 1103.. double-face, diamètre de coupe de 63 mm avec un angle d'attaque de 90° et un alésage de raccordement de 16 mm selon DIN 8030-A, longueur de saillie de 40 mm pour le fraisage de rainures profondes avec une largeur de coupe de 5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A03R-S90SN11N5
Product Number6758323
Product FamilyS90SN

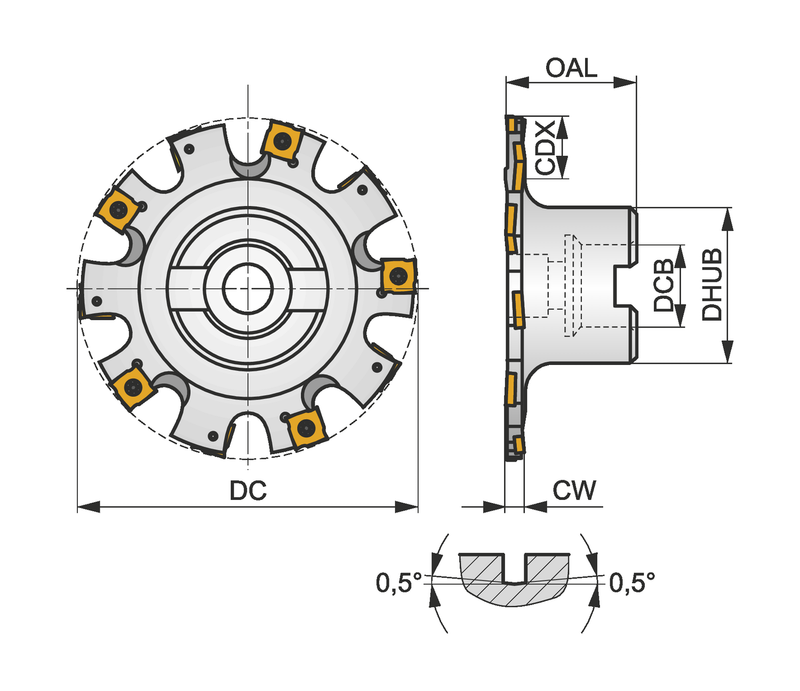

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Overall Length — in (OAL)1.575"
Overall Length — mm (OAL)40.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignS90SN
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolGauche
Reference Numbers
EDP Number6758323
EAN3603602936691
File Type Download
63A03R-S90SN11N5 — 3D Model STP Download
63A03R-S90SN11N5 — 2D Model DXF Download
63A03R-S90SN11N5 — Line Drawing PDF Download
