63A03R-S90SN12N6
63A03R-S90SN12N6
63A03R-S90SN12N6

63A03R-S90SN12N6

UGC DOR6758324
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,310.00 CAD - $1,310.00 CAD
$1,310.00 CAD
$1,310.00 CAD - $1,310.00 CAD
$1,310.00 CAD

Vendu en lots de : 1

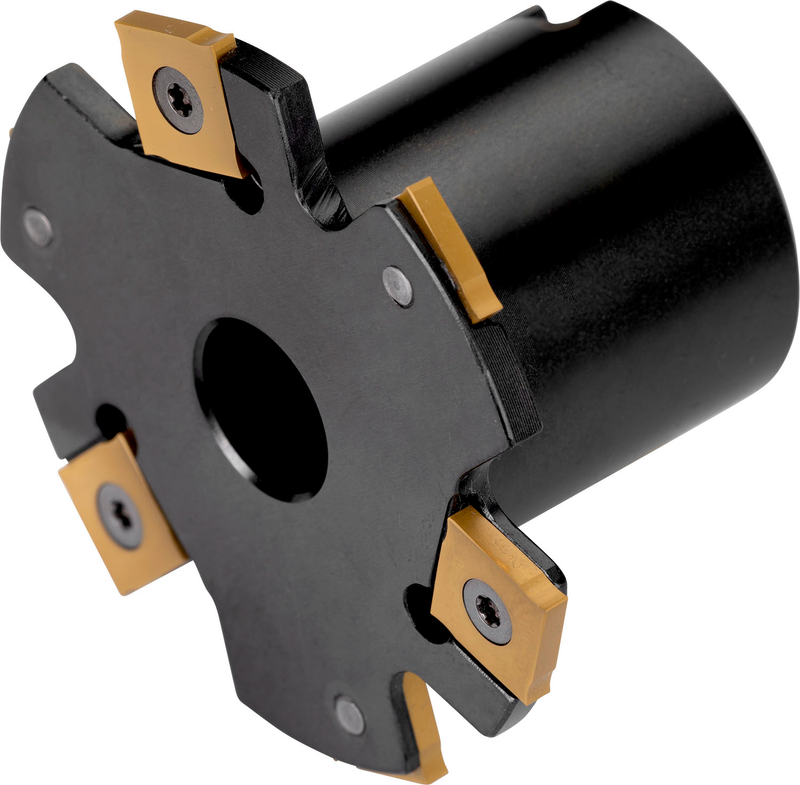

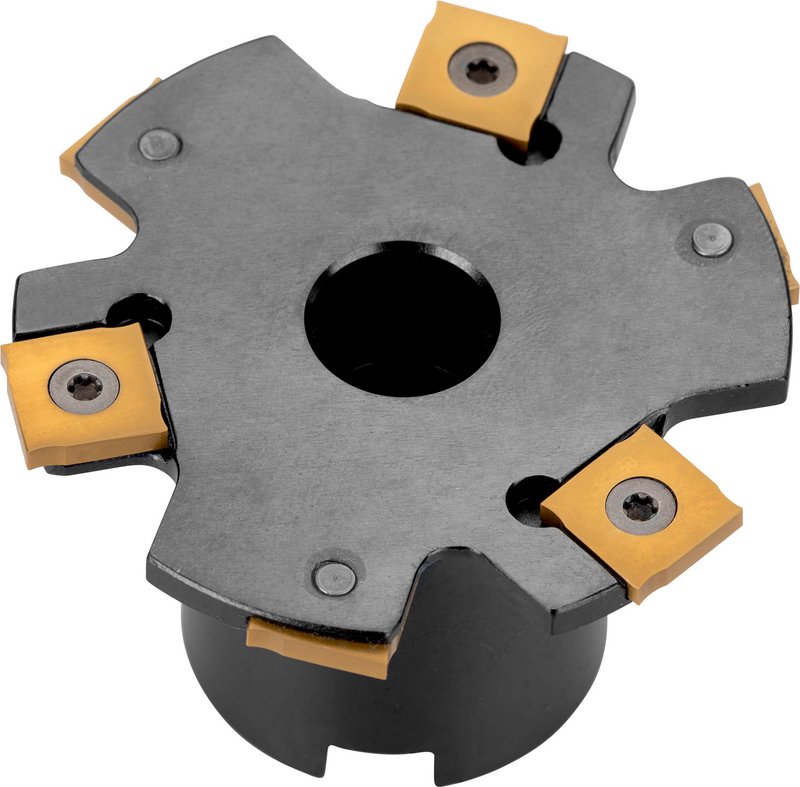

Fraise à disque à géométrie positive/négative utilisant 6 plaquettes double face SNHQ 1203.., diamètre de coupe 63 mm avec un angle d'attaque de 90° et un alésage de raccordement de 16 mm selon DIN 8030-A, longueur de dépassement de 40 mm pour le fraisage de gorges profondes avec une largeur de coupe de 6 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A03R-S90SN12N6
Product Number6758324
Product FamilyS90SN

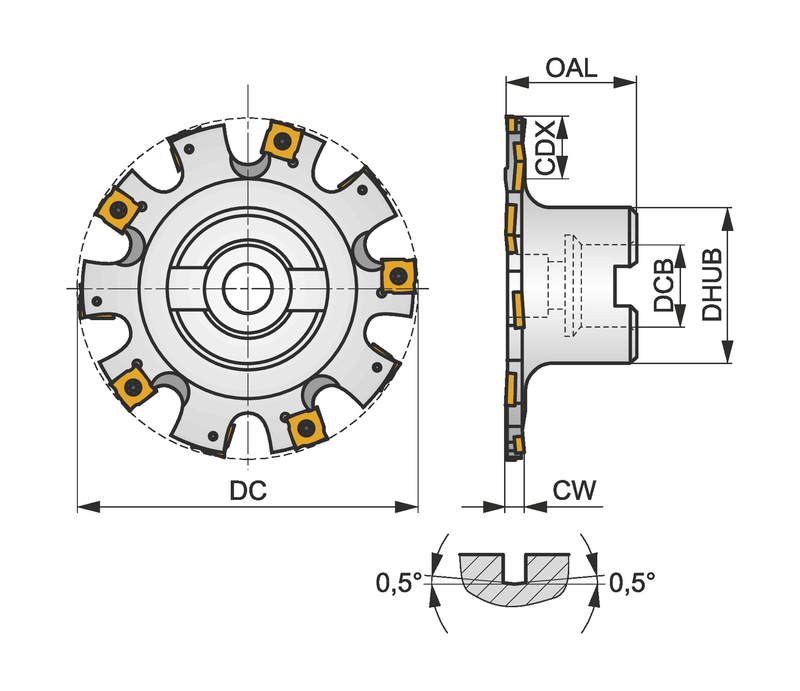

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Overall Length — in (OAL)1.575"
Overall Length — mm (OAL)40.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignS90SN
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolGauche
Reference Numbers
EDP Number6758324
EAN3603602936707
File Type Download
63A03R-S90SN12N6 — 3D Model STP Download
63A03R-S90SN12N6 — 2D Model DXF Download
63A03R-S90SN12N6 — Line Drawing PDF Download
