125B06R-S90SN12N6
125B06R-S90SN12N6
125B06R-S90SN12N6

125B06R-S90SN12N6

UGC DOR6758328
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,737.00 CAD - $1,737.00 CAD
$1,737.00 CAD
$1,737.00 CAD - $1,737.00 CAD
$1,737.00 CAD

Vendu en lots de : 1

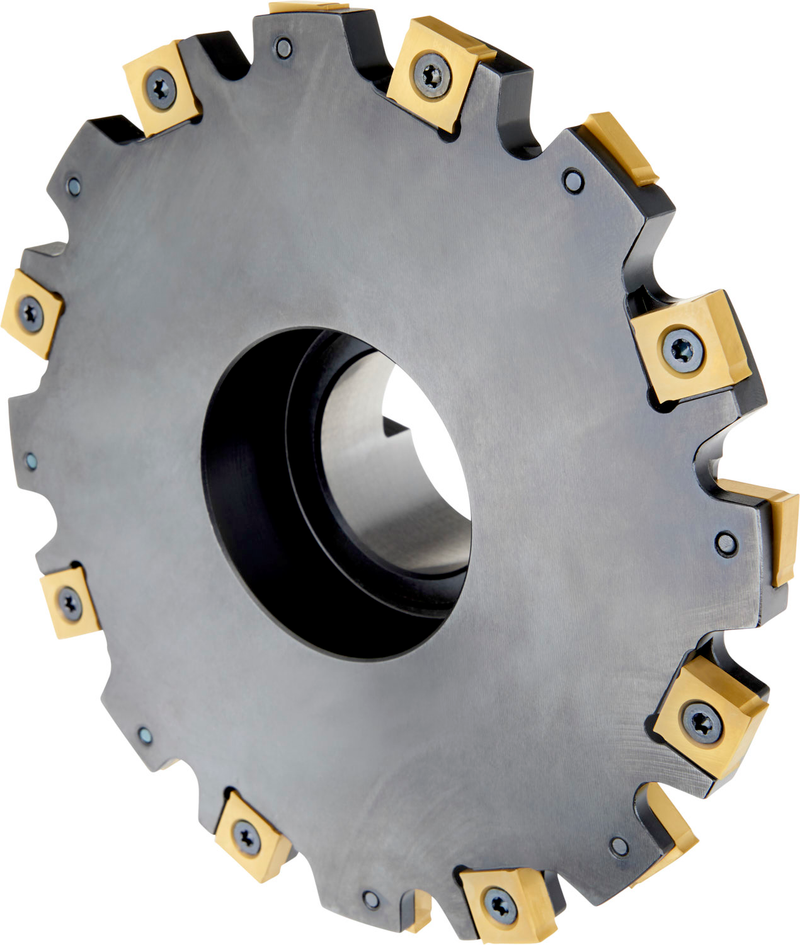

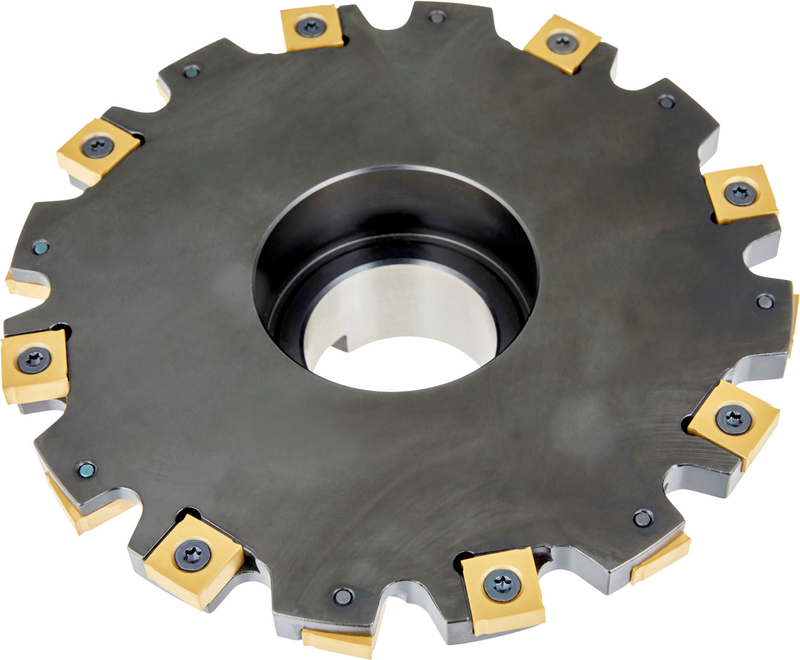

Fraise à disque à géométrie positive/négative utilisant 12 plaquettes double-face SNHQ 1203.., diamètre de coupe 125mm avec angle d'approche 90° et alésage de connexion 40mm selon DIN 8030-B, longueur de dépassement 50mm pour fraisage de rainures profondes avec une largeur de coupe de 6mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125B06R-S90SN12N6
Product Number6758328
Product FamilyS90SN

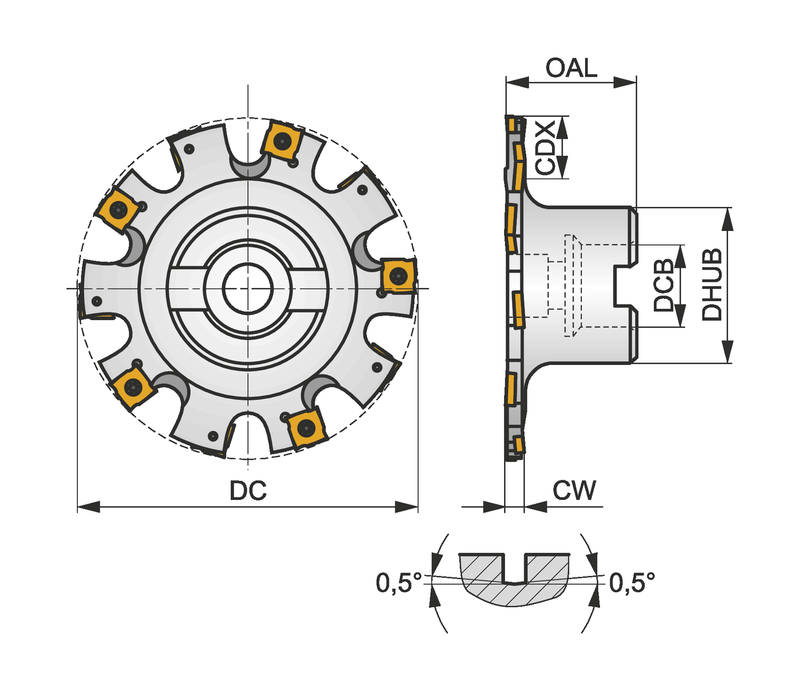

Dimensions
Cutting Diameter — in (DC)4.921"
Cutting Diameter — mm (DC)125.0 mm
Overall Length — in (OAL)1.969"
Overall Length — mm (OAL)50.0 mm
Number of Flutes (NOF)12
Tool Information
Tool DesignS90SN
ShankFraise à surfacer-dresser DIN 8030 B
Direction of ToolD'accord
Reference Numbers
EDP Number6758328
EAN3603602936745
File Type Download
125B06R-S90SN12N6 — 3D Model STP Download
125B06R-S90SN12N6 — 2D Model DXF Download
125B06R-S90SN12N6 — Line Drawing PDF Download
