160H16N-S90SN12N8
160H16N-S90SN12N8
160H16N-S90SN12N8

160H16N-S90SN12N8

UGC DOR6758380
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,145.00 CAD - $2,145.00 CAD
$2,145.00 CAD
$2,145.00 CAD - $2,145.00 CAD
$2,145.00 CAD

Vendu en lots de : 1

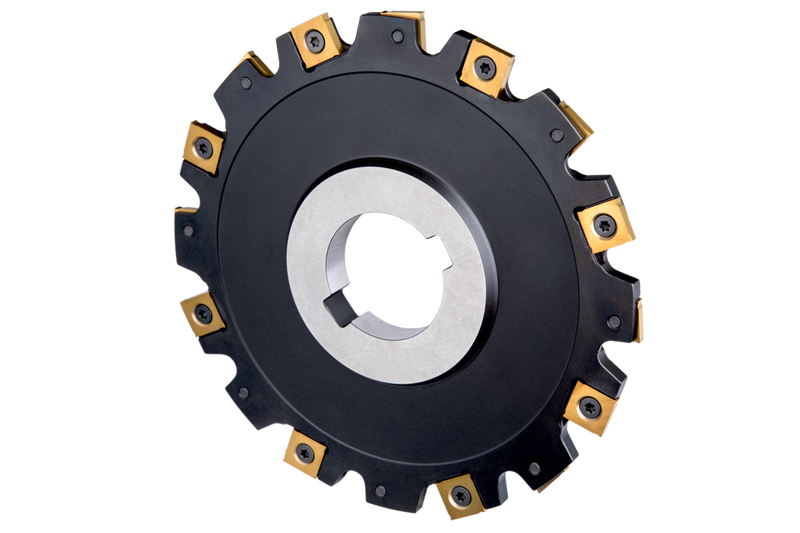

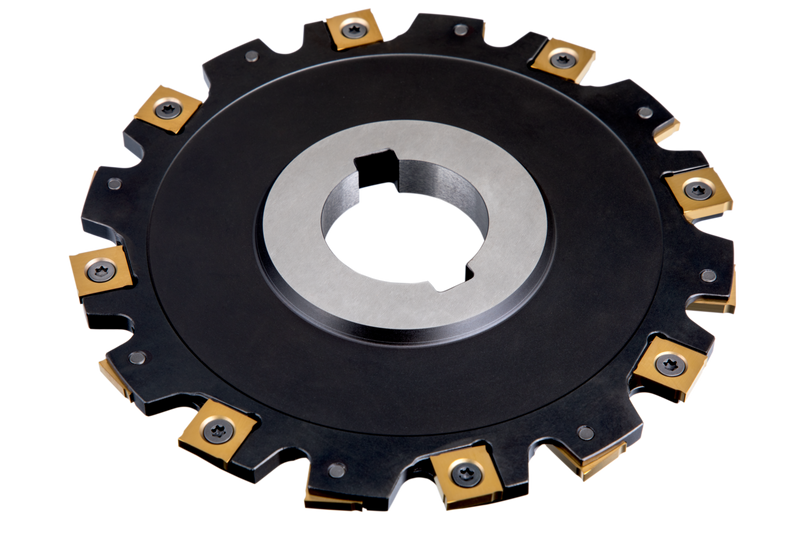

Fraise à disque de géométrie positive/négative qui utilise 16 plaquettes double face SNHQ 1204.., diamètre de coupe 160 mm avec un angle d'attaque de 90° et un alésage de connexion de 40 mm selon DIN 8030, pour le fraisage de gorges profondes avec une largeur de coupe de 8 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)160H16N-S90SN12N8
Product Number6758380
Product FamilyS90SN
Dimensions
Cutting Diameter — in (DC)6.299"
Cutting Diameter — mm (DC)160.0 mm
Number of Flutes (NOF)16
Tool Information
Tool DesignS90SN
ShankFraise à surfacer-dresser DIN 8030 – fraise-scie
Direction of ToolGauche
Reference Numbers
EDP Number6758380
EAN3603602937261
File Type Download
160H16N-S90SN12N8 — 3D Model STP Download
160H16N-S90SN12N8 — 2D Model DXF Download
160H16N-S90SN12N8 — Line Drawing PDF Download
