200J18N-S90SN12N14
200J18N-S90SN12N14
200J18N-S90SN12N14

200J18N-S90SN12N14

UGC DOR6758457
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,482.00 CAD - $2,482.00 CAD
$2,482.00 CAD
$2,482.00 CAD - $2,482.00 CAD
$2,482.00 CAD

Vendu en lots de : 1

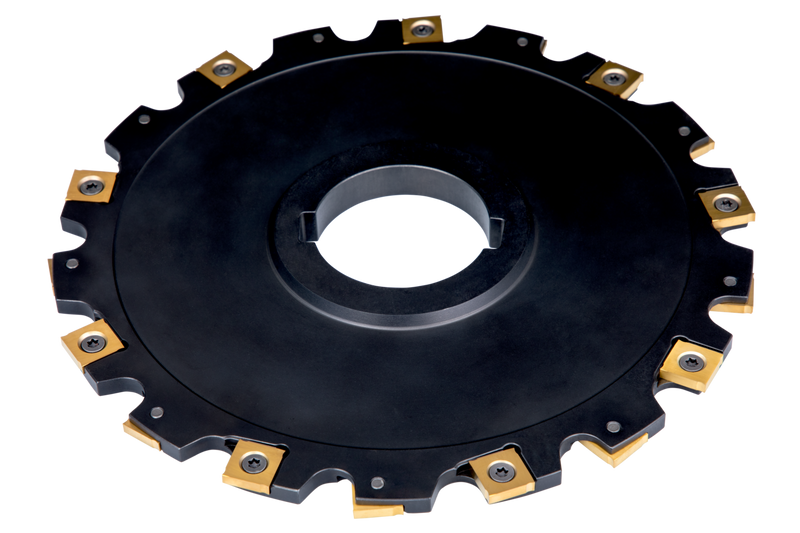

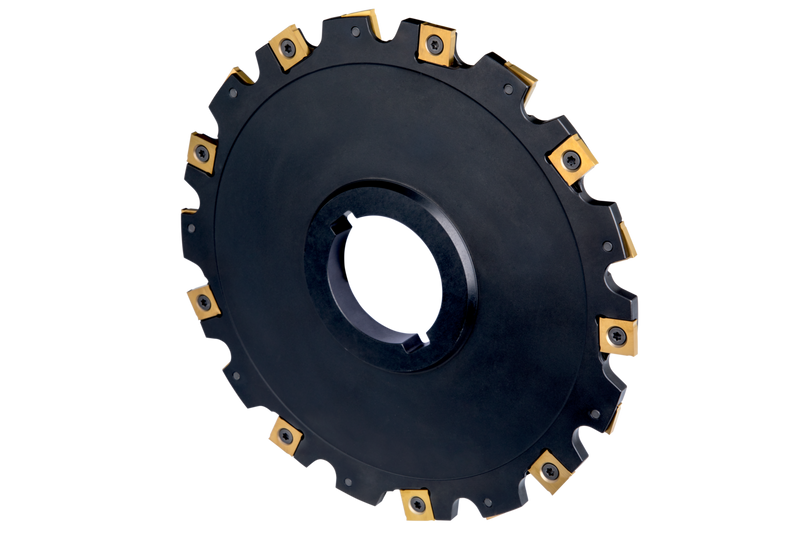

Fraise à surfacer-dresser avec géométrie positive/négative qui utilise 18 plaquettes double face SNHQ 1207.., diamètre de coupe de 200 mm avec un angle d'attaque de 90° et un alésage de raccordement de 50 mm selon la norme DIN 8030, pour le fraisage de rainures profondes avec une largeur de coupe de 14 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200J18N-S90SN12N14
Product Number6758457
Product FamilyS90SN

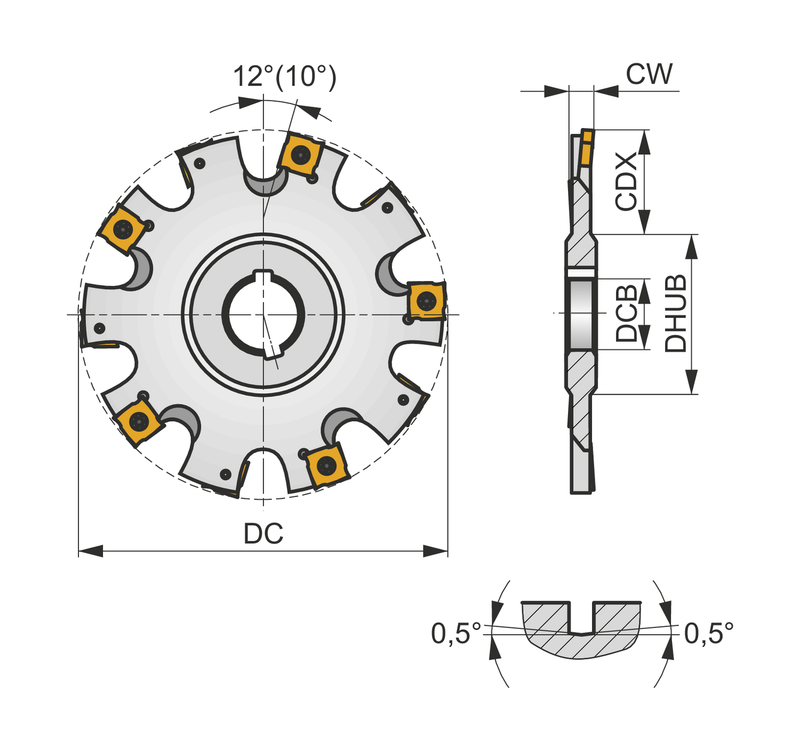

Dimensions
Cutting Diameter — in (DC)7.874"
Cutting Diameter — mm (DC)200.0 mm
Number of Flutes (NOF)18
Tool Information
Tool DesignS90SN
ShankFraise cloche DIN 8030 – fraise à disque
Direction of ToolGauche
Reference Numbers
EDP Number6758457
EAN3603602938039
File Type Download
200J18N-S90SN12N14 — 3D Model STP Download
200J18N-S90SN12N14 — 2D Model DXF Download
200J18N-S90SN12N14 — Line Drawing PDF Download
