ADMX 070208SR-M:M9340
ADMX 070208SR-M:M9340

ADMX 070208SR-M:M9340

UGC DOR6798625
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.73 CAD - $12.73 CAD
$12.73 CAD
$12.73 CAD - $12.73 CAD
$12.73 CAD

Vendu en lots de : 10

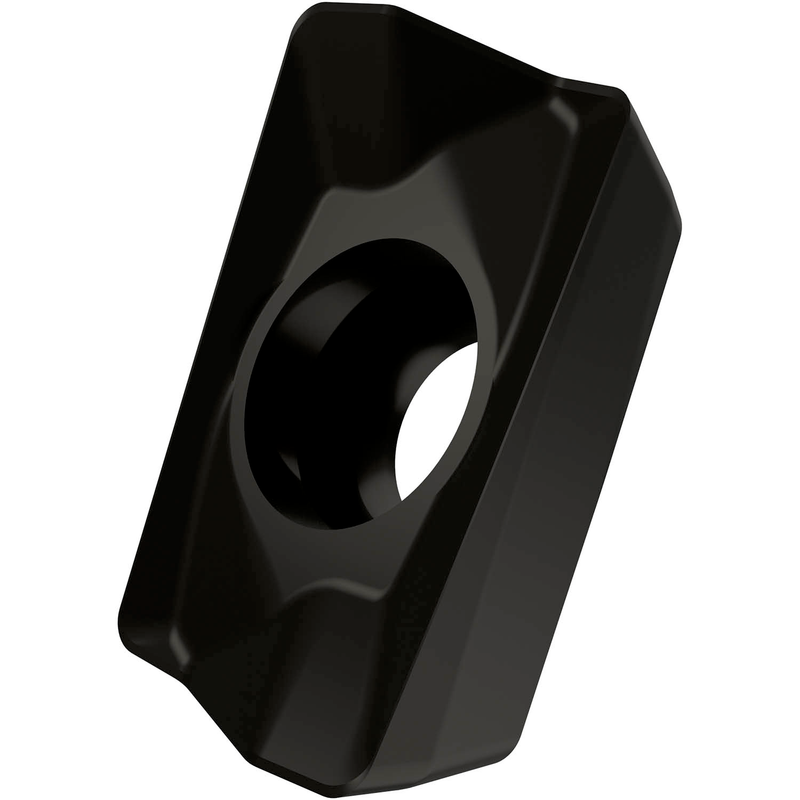

Plaquette de fraisage simple face ADMX 0702, parallélogramme à 85° pour une profondeur de coupe maximale de 5 mm, avec un rayon de coin de 0,8 mm, une précision d'indexation selon la classe de tolérance ISO M et une géométrie M avec arêtes de coupe et facette arrondies, en carbure WC-Co revêtu MT-CVD M9340, dans la gamme de nuances ISO M30-M40 pour l'usinage d'acier inoxydable avec les fraises à épaulement SAD07D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ADMX 070208SR-M:M9340
GradeM9340
Chipbreaker (CBMD)M
Product Number6798625
Product FamilyADMX 07

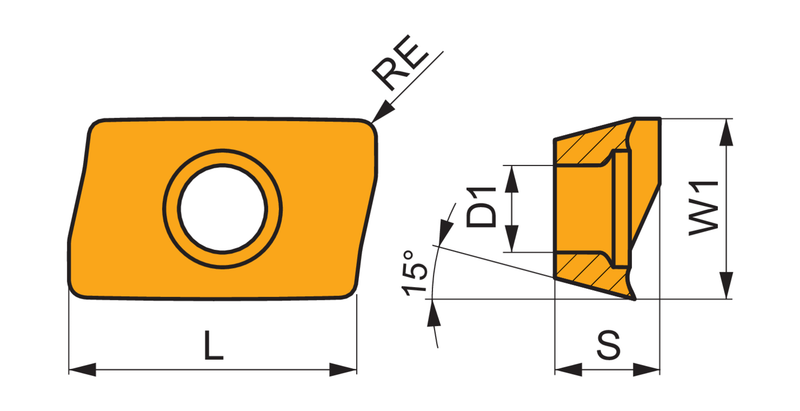

Insert Geometry
Insert DesignADMX
Insert Shape Code (SC)A - parallélogramme angle inclus de 85°
Insert Thickness — in (S)0.098"
Insert Thickness — mm (S)2.48 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6798625
EAN3603602992635
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
ADMX 070208SR-M:M9340 — Line Drawing PDF Download
