ADMX 070220SR-M:M8330
ADMX 070220SR-M:M8330

ADMX 070220SR-M:M8330

UGC DOR7447801
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.73 CAD - $12.73 CAD
$12.73 CAD
$12.73 CAD - $12.73 CAD
$12.73 CAD

Vendu en lots de : 10

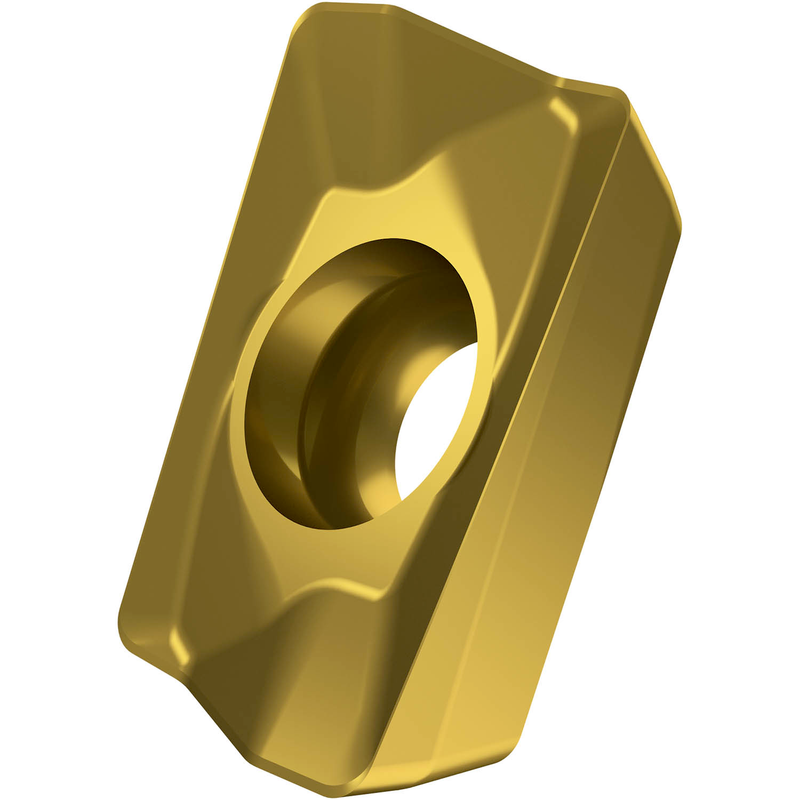

Plaquette de fraisage simple face ADMX 0702, parallélogramme 85° pour une profondeur de coupe maximale de 5 mm, avec un rayon de coin de 2 mm, une précision de positionnement selon la classe de tolérance ISO-M et une géométrie M avec arêtes de coupe arrondies et facette, carbure WC-Co à grain fin revêtu PVD M8330 dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec des fraises à épaulement SAD07D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ADMX 070220SR-M:M8330
GradeM8330
Chipbreaker (CBMD)M
Product Number7447801
Product FamilyADMX 07

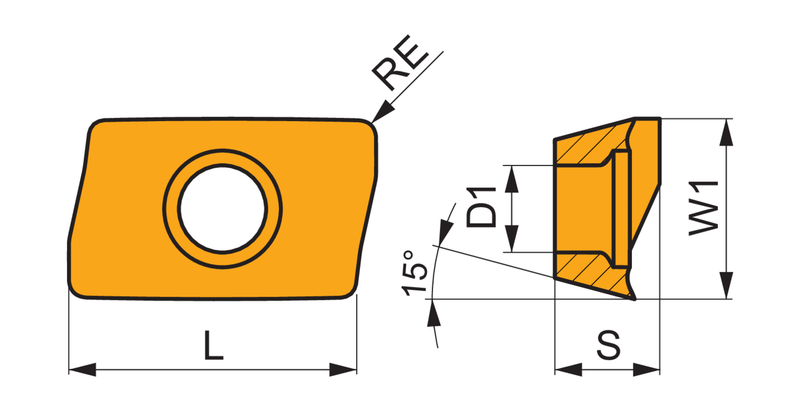

Insert Geometry
Insert DesignADMX
Insert Shape Code (SC)A - parallélogramme angle compris 85°
Insert Thickness — in (S)0.098"
Insert Thickness — mm (S)2.48 mm
Corner Radius — in (RE)0.079"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number7447801
EAN3603603385153
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage possible
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
ADMX 070220SR-M:M8330 — Line Drawing PDF Download
