050A2R071C050-ISAD07D-C
050A2R071C050-ISAD07D-C
050A2R071C050-ISAD07D-C

050A2R071C050-ISAD07D-C

UGC DOR8017218
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$257.00 CAD - $257.00 CAD
$257.00 CAD
$257.00 CAD - $257.00 CAD
$257.00 CAD

Vendu en lots de : 1

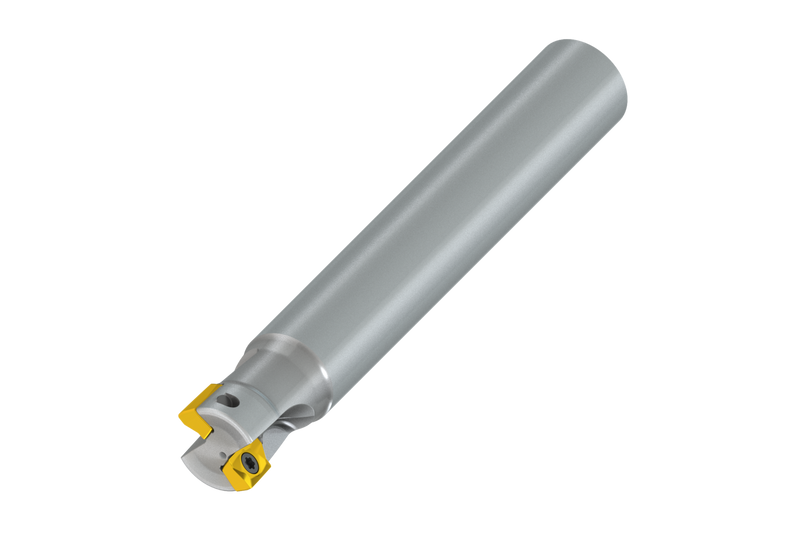

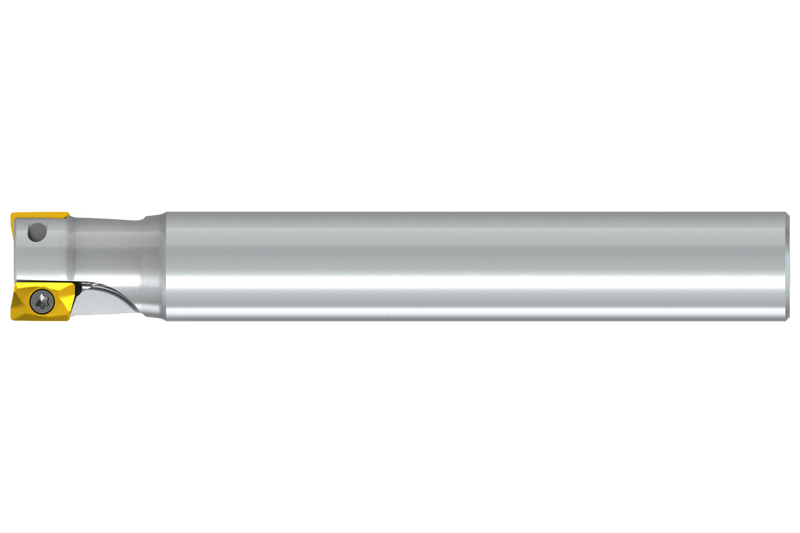

Fraise à épaule avec géométrie positive/négative utilisant 2 plaquettes simple face ADMX 0702.. ou ADEX 0702.., diamètre de coupe 12,7mm 0,500" avec angle d'attaque de 90° et queue cylindrique de 12,7mm 0,500" selon DIN 1835A, longueur utile de 18mm 0,709" et longueur totale de 90mm 3,543", arrosage central pour le surfaçage d'épaulements peu profonds, le fraisage en plongée, le fraisage de rainures peu profondes, l'interpolation hélicoïdale axiale, le fraisage progressif en plongée et le fraisage hélicoïdal

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)050A2R071C050-ISAD07D-C
Product Number8017218
Product FamilyISAD07D

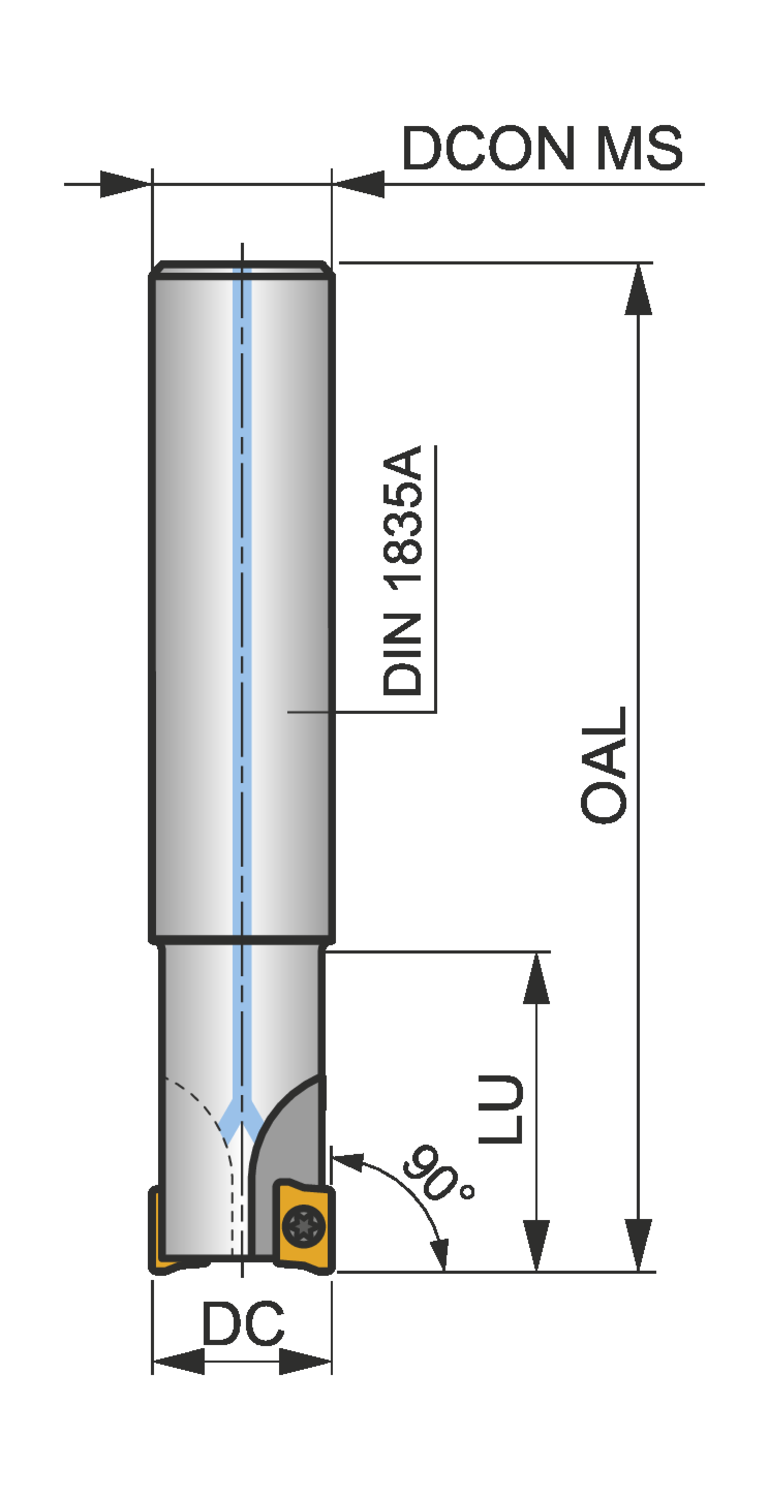

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)3.543"
Overall Length — mm (OAL)90.0 mm
Usable Length — in (LU)0.709"
Usable Length — mm (LU)18.01 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSAD07D
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8017218
EAN3603603842557
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Déconseillé
File Type Download
050A2R071C050-ISAD07D-C — 3D Model STP Download
050A2R071C050-ISAD07D-C — 2D Model DXF Download
050A2R071C050-ISAD07D-C — Line Drawing PDF Download
