062A4R075C062-ISAD07D-C
062A4R075C062-ISAD07D-C
062A4R075C062-ISAD07D-C

062A4R075C062-ISAD07D-C

UGC DOR8017581
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$291.00 CAD - $291.00 CAD
$291.00 CAD
$291.00 CAD - $291.00 CAD
$291.00 CAD

Vendu en lots de : 1

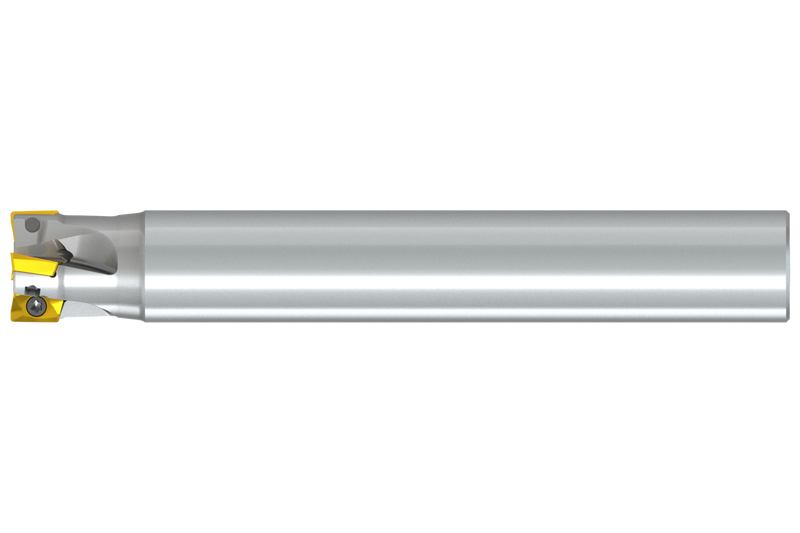

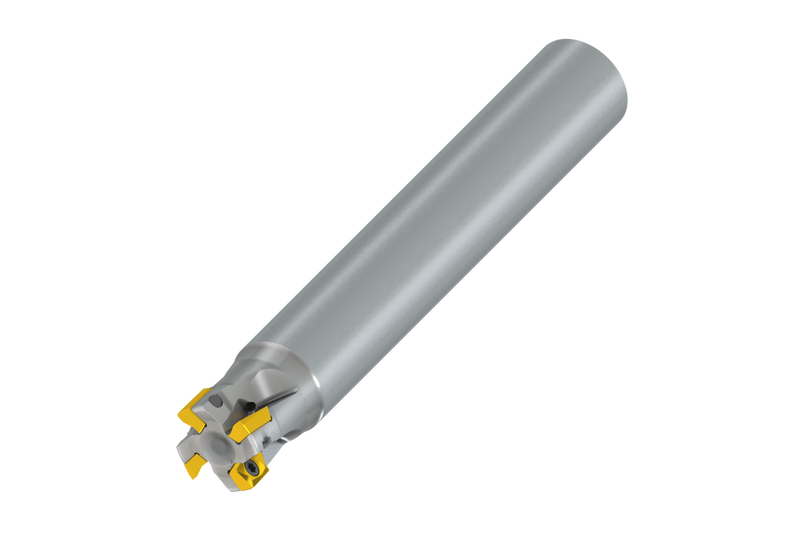

Fraise à épaulement à géométrie positive/négative qui utilise 4 plaquettes simple face ADMX 0702.. ou ADEX 0702.., diamètre de coupe 0,6252" avec un angle d'attaque de 90° et une queue cylindrique de 0,625" selon DIN 1835A, longueur utile 0,748" et longueur totale 4,330", arrosage interne pour le fraisage d'épaulements peu profonds, le fraisage en plongée, le fraisage de rainures peu profondes, l'usinage en ramping, le fraisage en plongée progressive et le fraisage hélicoïdal

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)062A4R075C062-ISAD07D-C
Product Number8017581
Product FamilyISAD07D

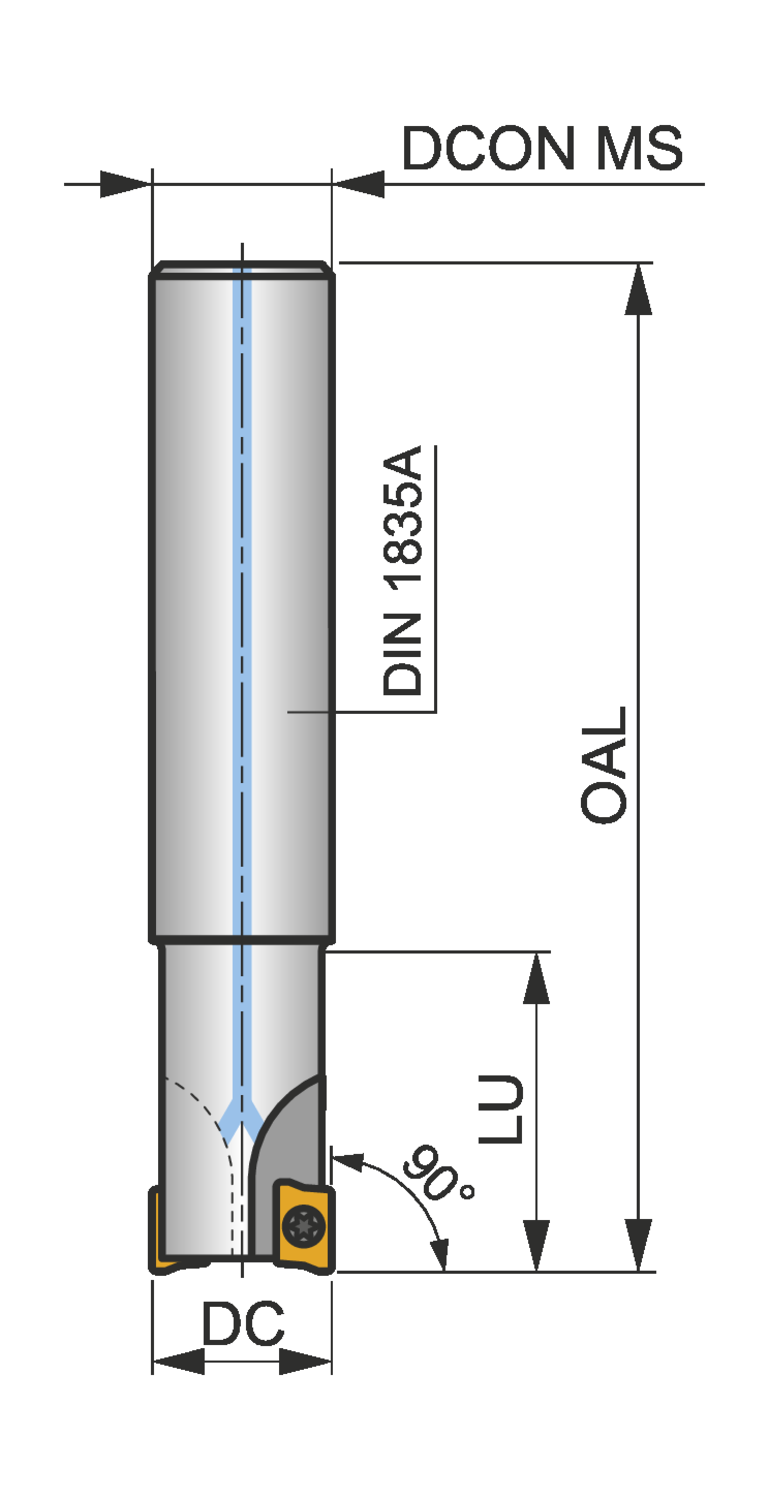

Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.9 mm
Overall Length — in (OAL)4.33"
Overall Length — mm (OAL)110.0 mm
Usable Length — in (LU)0.748"
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.9 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSAD07D
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8017581
EAN3603603842588
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Déconseillé
File Type Download
062A4R075C062-ISAD07D-C — 3D Model STP Download
062A4R075C062-ISAD07D-C — 2D Model DXF Download
062A4R075C062-ISAD07D-C — Line Drawing PDF Download
