12A3R020A12-SAD07D-CF
12A3R020A12-SAD07D-CF
12A3R020A12-SAD07D-CF

12A3R020A12-SAD07D-CF

UGC DOR7607334
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$260.00 CAD - $260.00 CAD
$260.00 CAD
$260.00 CAD - $260.00 CAD
$260.00 CAD

Vendu en lots de : 1

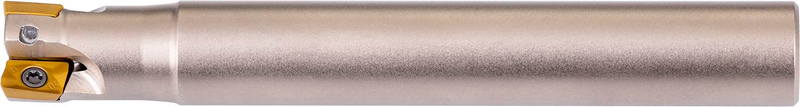

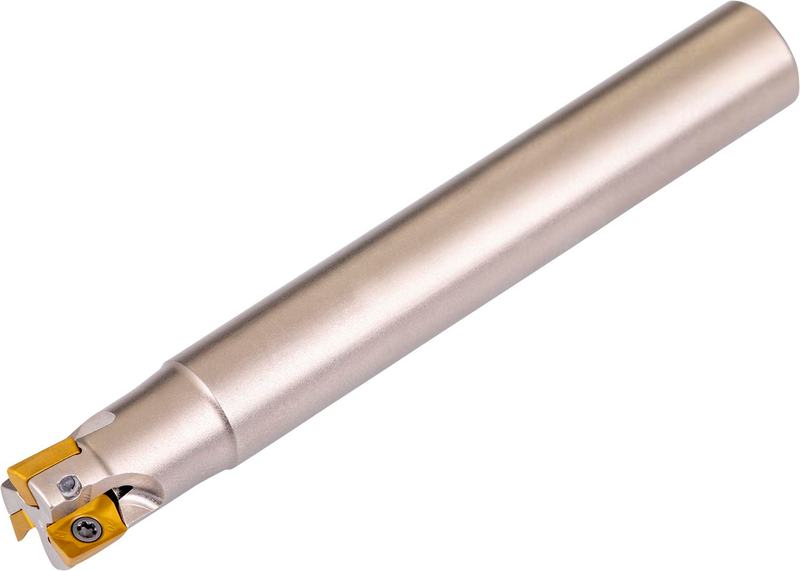

Fraise à épaule avec géométrie positive/négative qui utilise 3 plaquettes simple face ADMX 0702.. ou ADEX 0702.., diamètre de coupe 12 mm avec un angle d'attaque de 90° et une queue cylindrique de 12 mm selon DIN 1835A, longueur fonctionnelle de 20 mm et longueur totale de 90 mm, arrosage par l'intérieur pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, l'interpolation hélicoïdale, le fraisage en hélice, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)12A3R020A12-SAD07D-CF
Product Number7607334
Product FamilySAD07D
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

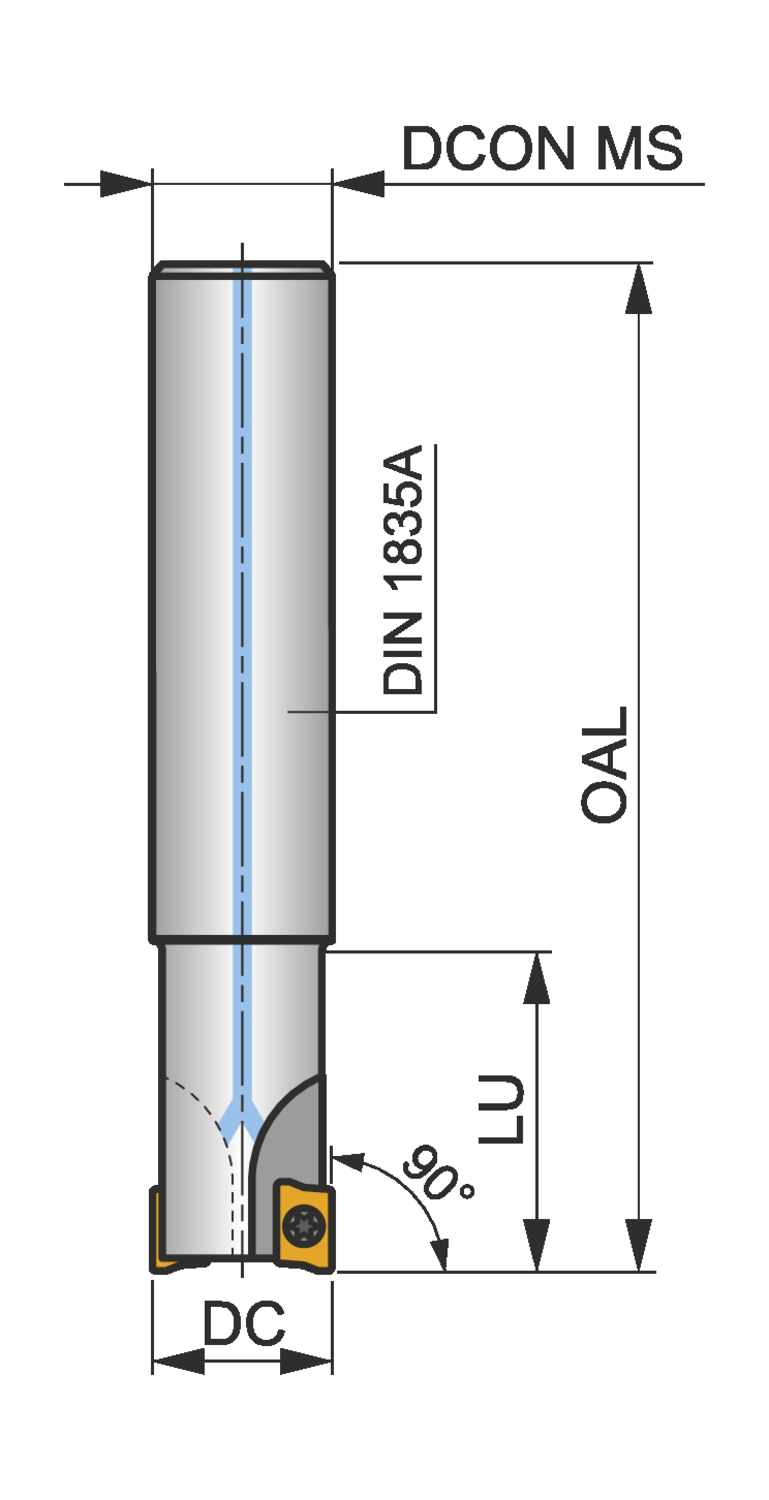

Dimensions
Cutting Diameter — in (DC)0.472"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.543"
Overall Length — mm (OAL)90.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSAD07D
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7607334
EAN3603603519237
File Type Download
12A3R020A12-SAD07D-CF — 3D Model STP Download
12A3R020A12-SAD07D-CF — 2D Model DXF Download
12A3R020A12-SAD07D-CF — Line Drawing PDF Download
