150J3R276W125-ISAD11E220
150J3R276W125-ISAD11E220
150J3R276W125-ISAD11E220

150J3R276W125-ISAD11E220

UGC DOR6790022
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,188.00 CAD - $1,188.00 CAD
$1,188.00 CAD
$1,188.00 CAD - $1,188.00 CAD
$1,188.00 CAD

Vendu en lots de : 1

Fraise à épaulement à géométrie positive/négative qui utilise 18 plaquettes simple face ADMX 11T3.. ou ADEX 11T3.., diamètre de coupe 1.500'' avec angle d'attaque de 90° et queue Weldon de 1.250'' selon DIN 1835B, longueur fonctionnelle de 2.205'' et longueur totale de 5.295'', arrosage central pour le fraisage de copiage, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)150J3R276W125-ISAD11E220
Product Number6790022
Product FamilyJ(T)-ISAD11E
Insert Geometry
Depth of Cut Max — in (APMX)2.205"

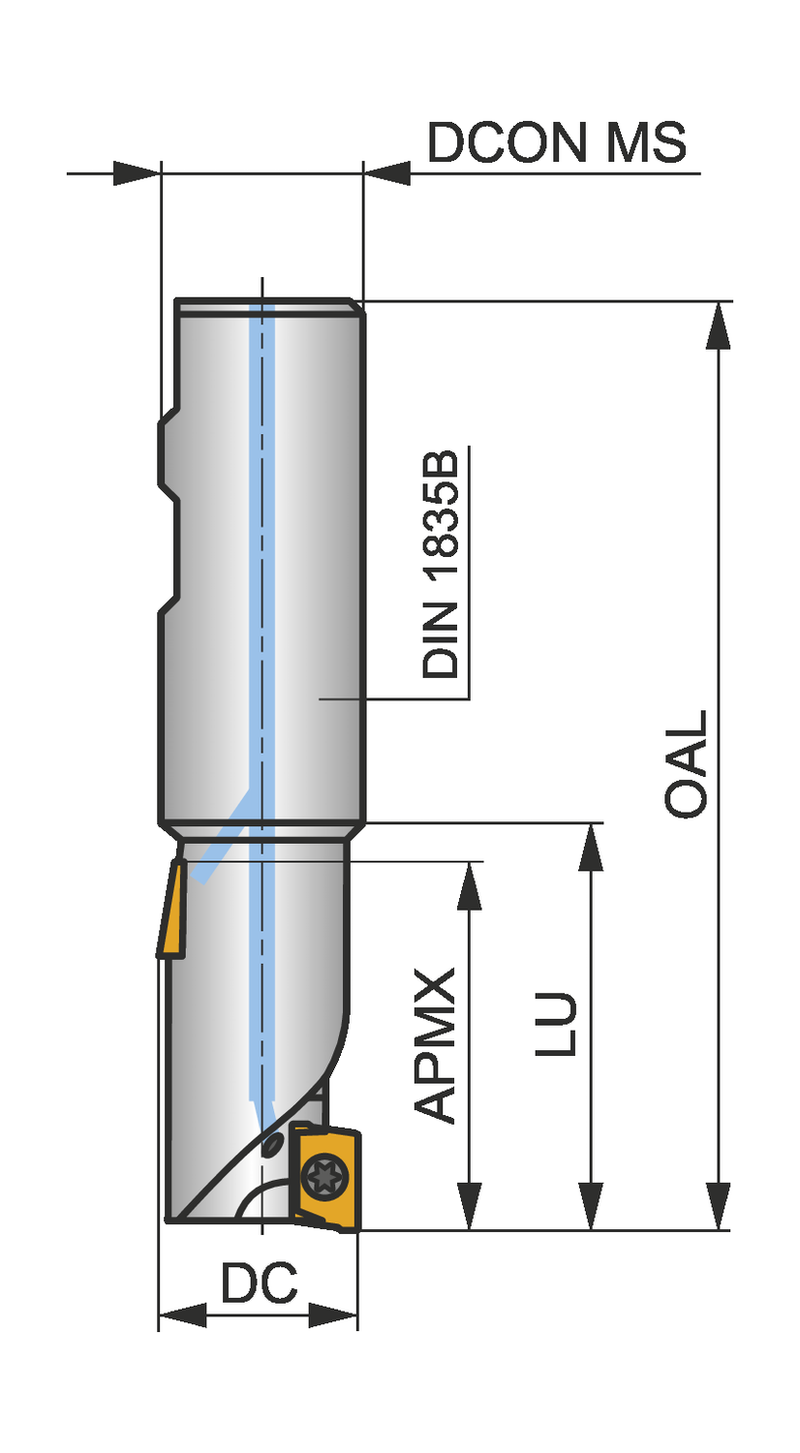

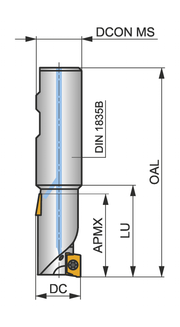

Dimensions
Cutting Diameter — in (DC)1.5"
Cutting Diameter — mm (DC)38.1 mm
Overall Length — in (OAL)5.295"
Overall Length — mm (OAL)134.0 mm
Usable Length — in (LU)2.756"
Usable Length — mm (LU)70.0 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.8 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SAD11E
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6790022
EAN3603602981134
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Déconseillé
S — High Temperature Alloys Déconseillé
H — Hardened Materials Déconseillé
File Type Download
150J3R276W125-ISAD11E220 — 3D Model STP Download
150J3R276W125-ISAD11E220 — 2D Model DXF Download
150J3R276W125-ISAD11E220 — Line Drawing PDF Download
