125A5R150W125-ISAD11E-C
125A5R150W125-ISAD11E-C
125A5R150W125-ISAD11E-C

125A5R150W125-ISAD11E-C

UGC DOR6790715
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$412.00 CAD - $412.00 CAD
$412.00 CAD
$412.00 CAD - $412.00 CAD
$412.00 CAD

Vendu en lots de : 1

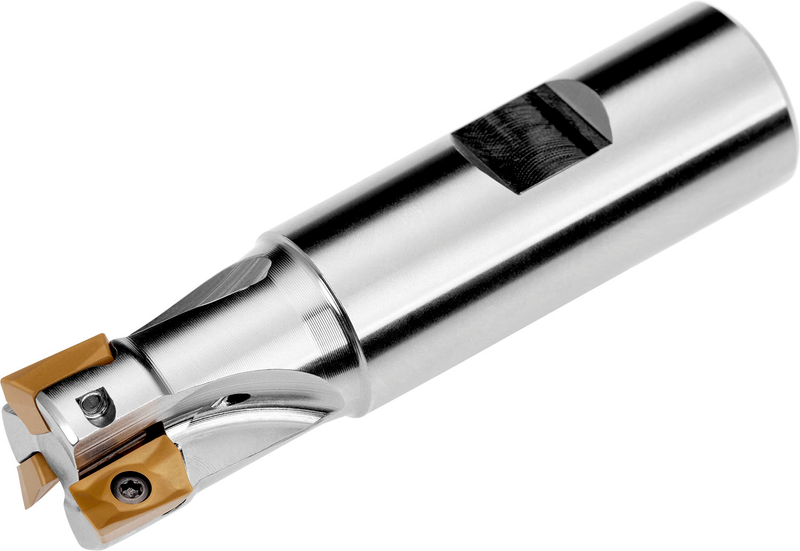

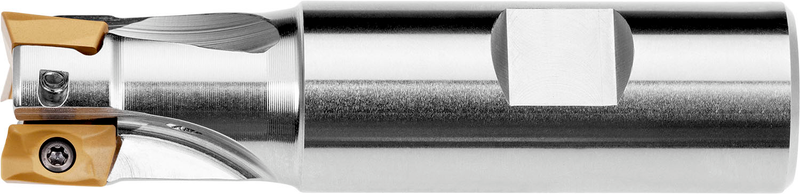

Fraise à épaulement à géométrie positive/négative utilisant 5 plaquettes simple face ADMX 11T3.. ou ADEX 11T3.., diamètre de coupe 1,250'' avec angle d'attaque de 90° et queue Weldon de 1,250'' selon DIN 1835B, longueur fonctionnelle 1,500'' et longueur totale 4,000'', arrosage central pour le fraisage en plongée, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en ramping, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressif avec une profondeur de coupe maximale de 0,354''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A5R150W125-ISAD11E-C
Product Number6790715
Product FamilyISAD11E

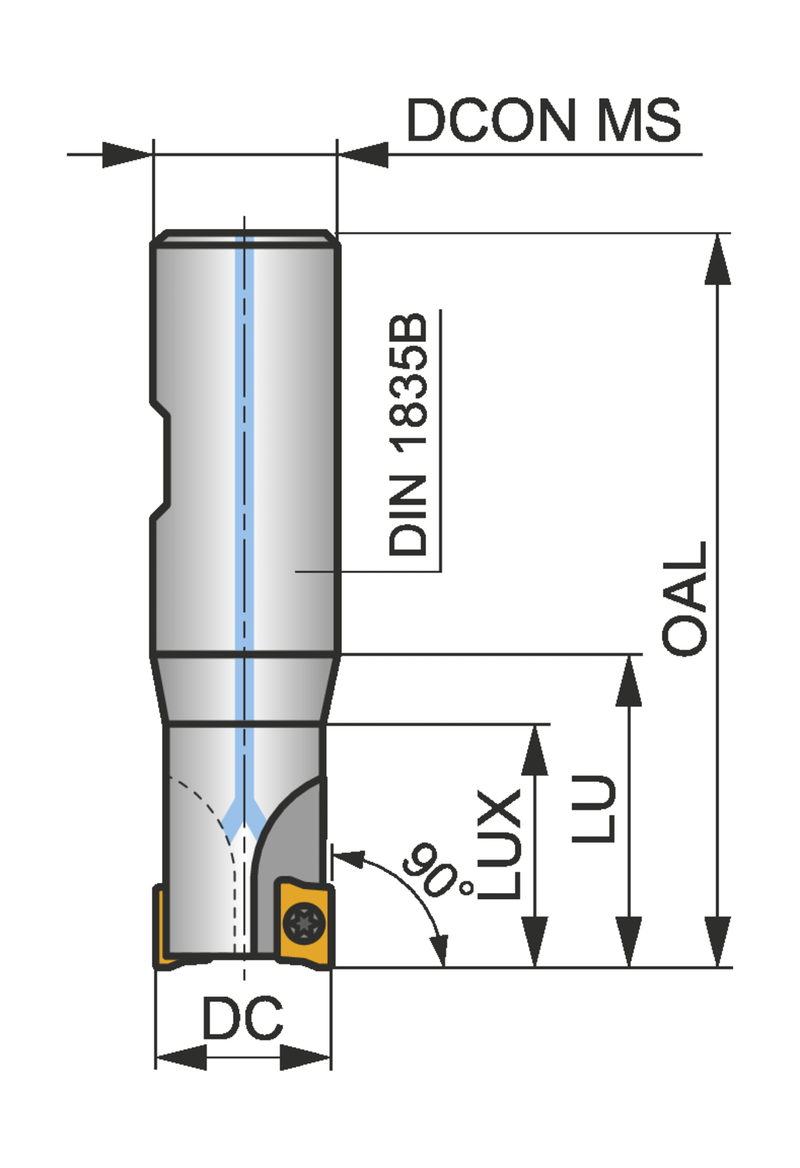

Dimensions
Cutting Diameter — in (DC)1.25"
Cutting Diameter — mm (DC)31.8 mm
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)102.0 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.8 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSAD11E
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6790715
EAN3603602984845
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Utilisation possible
File Type Download
125A5R150W125-ISAD11E-C — 3D Model STP Download
125A5R150W125-ISAD11E-C — 2D Model DXF Download
125A5R150W125-ISAD11E-C — Line Drawing PDF Download
