ADMX 11T304SR-M:M9325
ADMX 11T304SR-M:M9325

ADMX 11T304SR-M:M9325

UGC DOR6754538
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.96 CAD - $14.96 CAD
$14.96 CAD
$14.96 CAD - $14.96 CAD
$14.96 CAD

Vendu en lots de : 10

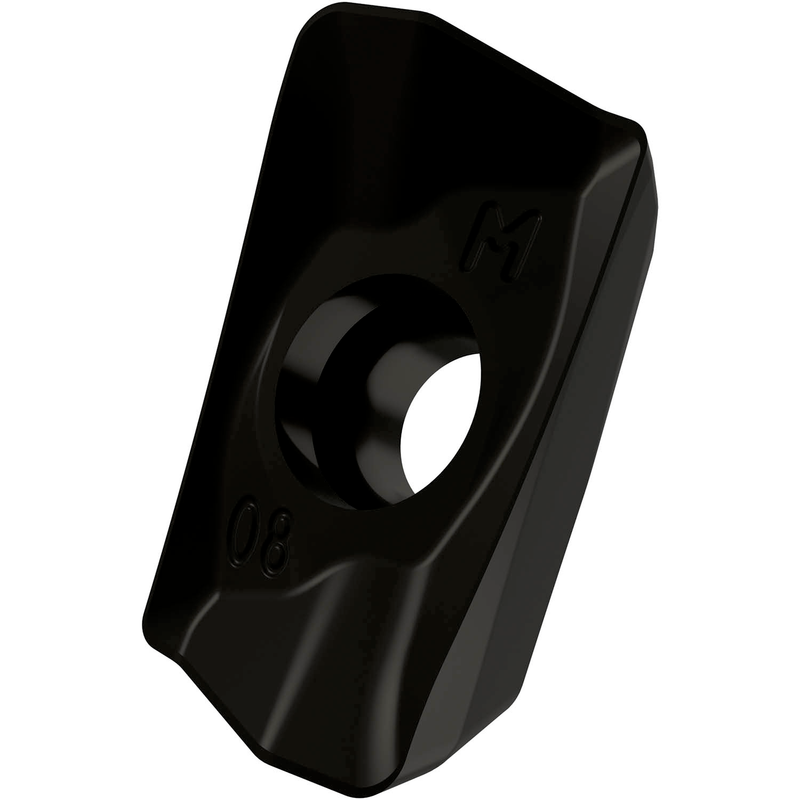

Plaquette de fraisage simple face ADMX 11T3, parallélogramme 85° pour une profondeur de coupe maximale de 9 mm, rayon de pointe de 0,4 mm, précision de positionnement selon la classe de tolérance ISO-M et géométrie M avec arêtes de coupe arrondies et facette, carbure WC-Co revêtu M9325 MT-CVD pour l'usinage de l'acier avec les fraises à épaulement SAD11E ou les fraises à épaulement à queue allongée J(T)-SAD11E

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ADMX 11T304SR-M:M9325
GradeM9325
Chipbreaker (CBMD)M
Product Number6754538
Product FamilyADMX 11

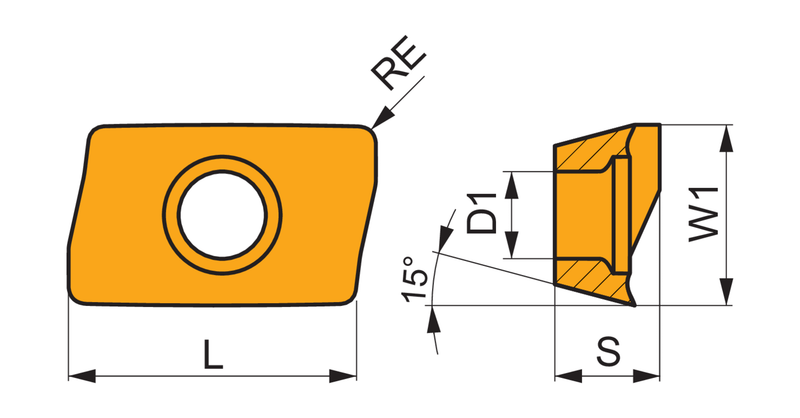

Insert Geometry
Insert DesignADMX
Insert Shape Code (SC)A - parallélogramme angle interne 85°
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number6754538
EAN3603602899040
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
File Type Download
ADMX 11T304SR-M:M9325 — Line Drawing PDF Download
