ADMX 11T308PR-R:M9325
ADMX 11T308PR-R:M9325

ADMX 11T308PR-R:M9325

UGC DOR6754539
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.96 CAD - $14.96 CAD
$14.96 CAD
$14.96 CAD - $14.96 CAD
$14.96 CAD

Vendu en lots de : 10

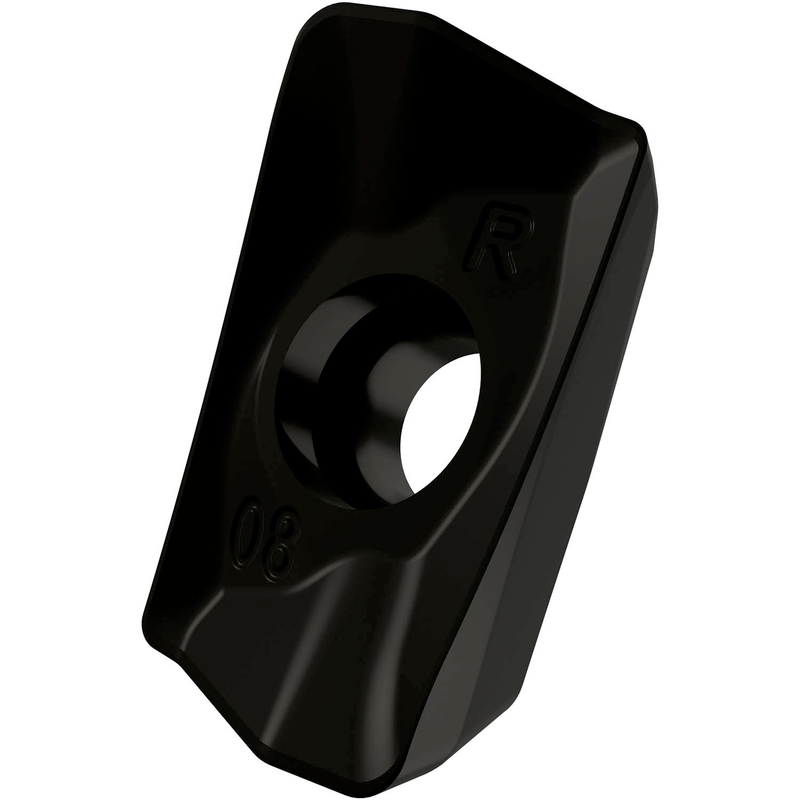

Plaquette de fraisage simple face ADMX 11T3, parallélogramme 85° pour une profondeur de coupe maximale de 9 mm (0,3543"), avec un rayon de bec de 0,8 mm (0,0315"), une précision de positionnement selon la classe de tolérance ISO M et une géométrie R avec arêtes de coupe arrondies et double chanfrein, en carbure WC-Co revêtu MT-CVD M9325 pour l'usinage de l'acier avec les fraises à épaulement SAD11E ou les fraises à épaulement à queue allongée J(T)-SAD11E

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ADMX 11T308PR-R:M9325
GradeM9325
Chipbreaker (CBMD)R
Product Number6754539
Product FamilyADMX 11

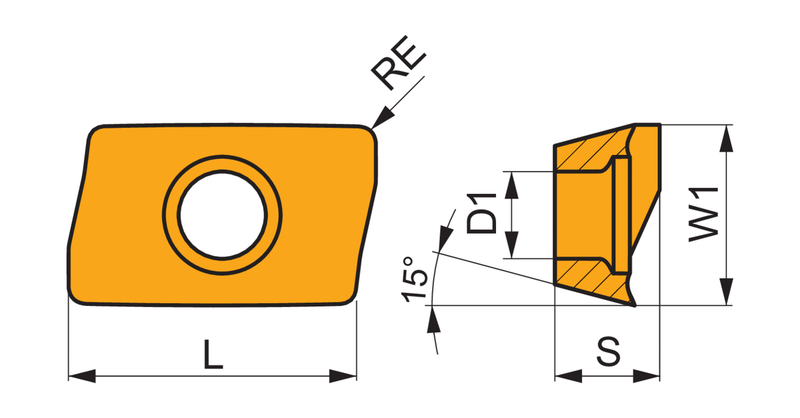

Insert Geometry
Insert DesignADMX
Insert Shape Code (SC)A - parallélogramme angle interne 85°
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number6754539
EAN3603602899057
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
H — Hardened Materials Usage possible
File Type Download
ADMX 11T308PR-R:M9325 — Line Drawing PDF Download
