ADEX 11T308SR-HF:M6330
ADEX 11T308SR-HF:M6330

ADEX 11T308SR-HF:M6330

UGC DOR7601275
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.69 CAD - $15.69 CAD
$15.69 CAD
$15.69 CAD - $15.69 CAD
$15.69 CAD

Vendu en lots de : 10

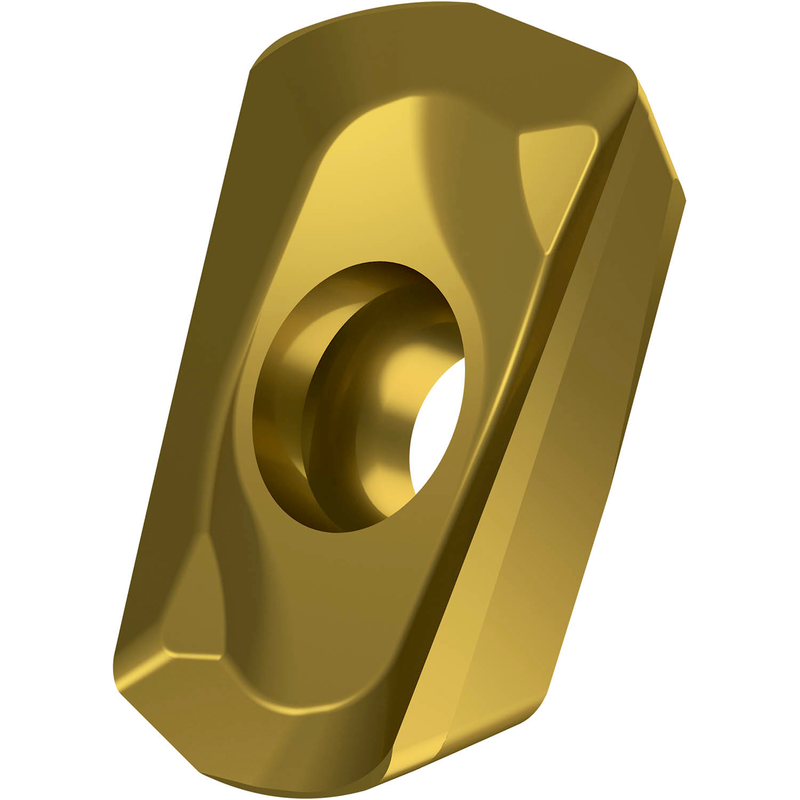

Plaquette de fraisage simple face ADEX 11T3, parallélogramme à 85° et conception à avance rapide pour une profondeur de coupe maximale de 0,6 mm, avec rayon de coin de 0,8 mm, une précision d'indexage selon la classe de tolérance ISO-E et une géométrie HF avec arêtes de coupe arrondies et facette, carbure WC-Co revêtu PVD M6330 dans la plage de grades ISO M20-M35 pour l'usinage de l'acier inoxydable avec des fraises à épaulement SAD11E

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ADEX 11T308SR-HF:M6330
GradeM6330
Chipbreaker (CBMD)HF
Product Number7601275
Product FamilyADEX 11-HF

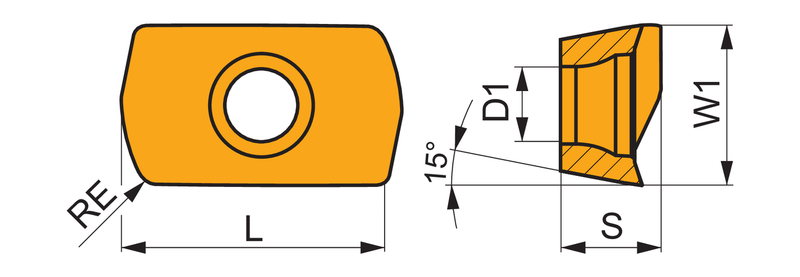

Insert Geometry
Insert DesignADEX
Insert Shape Code (SC)A - parallélogramme angle compris 85°
Insert Thickness — in (S)0.15"
Insert Thickness — mm (S)3.82 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.024"
Depth of Cut Max — mm (APMX)0.6 mm
Tool Information
Reference Numbers
EDP Number7601275
EAN3603603520042
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
File Type Download
ADEX 11T308SR-HF:M6330 — Line Drawing PDF Download
