20A2R026M10-SAD11E-C
20A2R026M10-SAD11E-C
20A2R026M10-SAD11E-C

20A2R026M10-SAD11E-C

UGC DOR6759678
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$282.00 CAD - $282.00 CAD
$282.00 CAD
$282.00 CAD - $282.00 CAD
$282.00 CAD

Vendu en lots de : 1

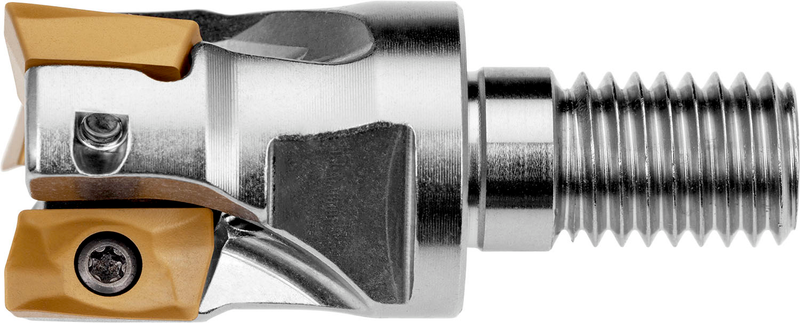

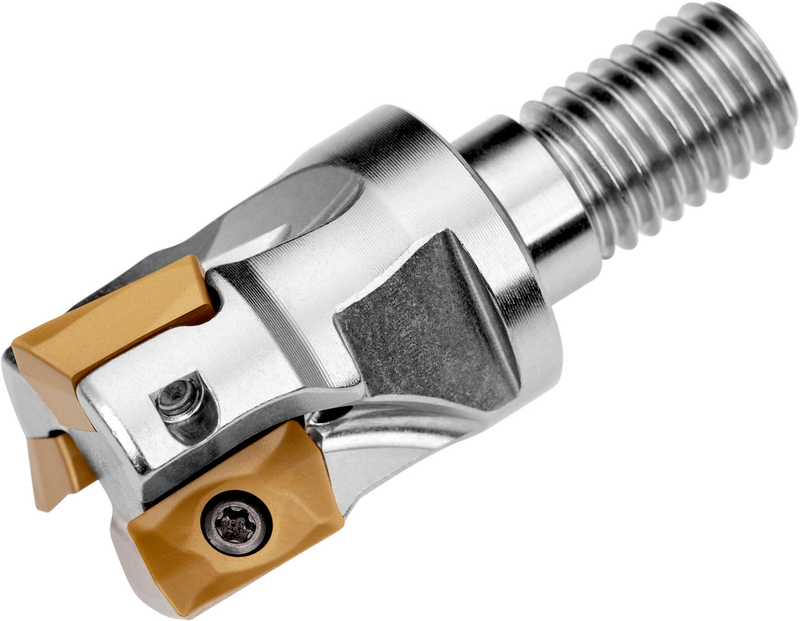

Fraise à épaulement à géométrie positive/négative utilisant 2 plaquettes ADMX 11T3.. ou ADEX 11T3.. simple face, diamètre de coupe 20 mm avec un angle d'attaque de 90° et une queue filetée M10 pour porte-outils modulaires standards, longueur de dépassement de 26 mm, arrosage central pour le fraisage de forme, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, l'interpolation hélicoïdale, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 9,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20A2R026M10-SAD11E-C
Product Number6759678
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

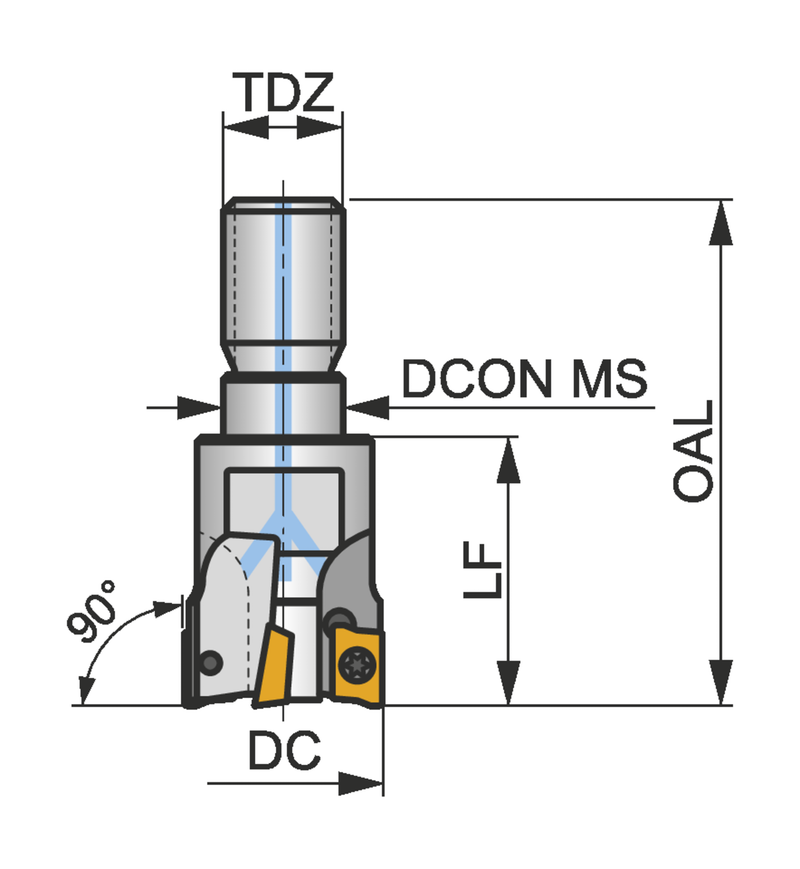

Dimensions
Cutting Diameter — in (DC)0.787"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)1.772"
Overall Length — mm (OAL)45.0 mm
Functional Length — mm (LF)26.0 mm
Connection Dia. — in (DCON)0.433"
Connection Dia. — mm (DCON)11.0 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M10
Tool Information
Tool DesignSAD11E
ShankRaccord fileté
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6759678
EAN3603602950246
File Type Download
20A2R026M10-SAD11E-C — 3D Model STP Download
20A2R026M10-SAD11E-C — 2D Model DXF Download
20A2R026M10-SAD11E-C — Line Drawing PDF Download
