25A3R042B25-SAD11E-C
25A3R042B25-SAD11E-C
25A3R042B25-SAD11E-C

25A3R042B25-SAD11E-C

UGC DOR6760197
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$340.00 CAD - $340.00 CAD
$340.00 CAD
$340.00 CAD - $340.00 CAD
$340.00 CAD

Vendu en lots de : 1

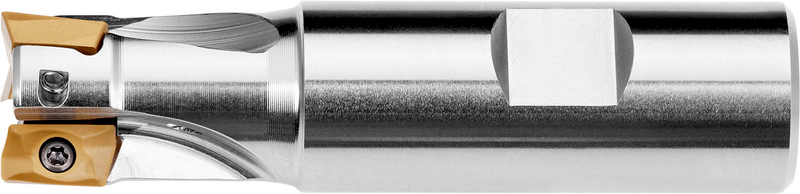

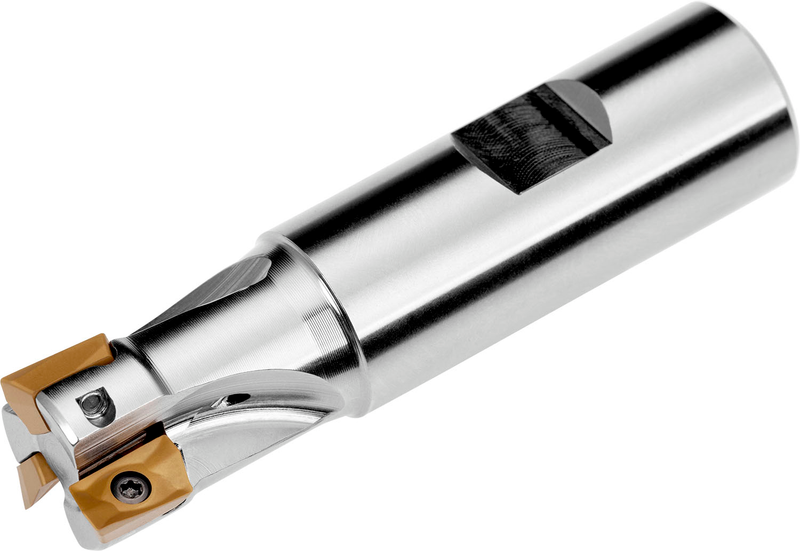

Fraise à épaulement à géométrie positive/négative utilisant 3 plaquettes simple face ADMX 11T3.. ou ADEX 11T3.., diamètre de coupe 25mm avec un angle d'attaque de 90° et une queue Weldon de 25mm selon DIN 1835B, longueur fonctionnelle de 42mm et longueur totale de 98mm, arrosage central pour le fraisage en plongée, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en ramping, le fraisage hélicoïdal, le fraisage en piqué et le fraisage en piqué progressif avec une profondeur de coupe maximale de 9,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25A3R042B25-SAD11E-C
Product Number6760197
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

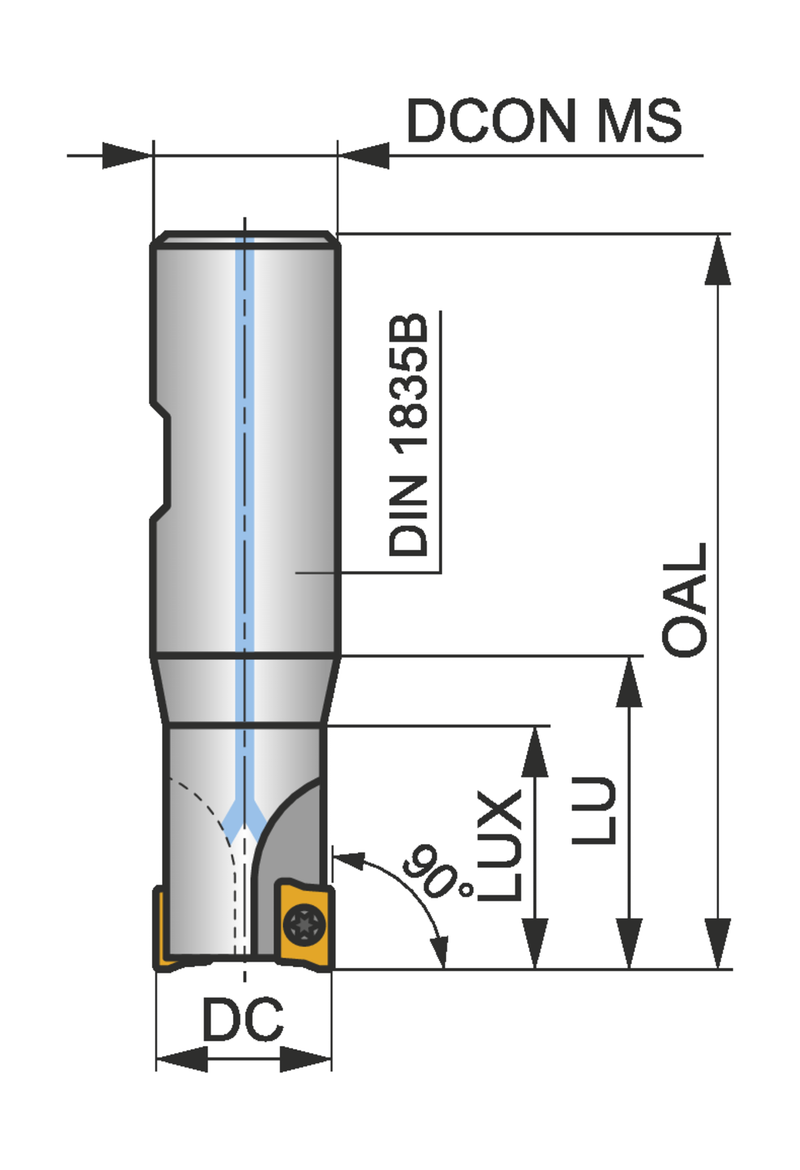

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)3.858"
Overall Length — mm (OAL)98.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSAD11E
ShankQueue Weldon DIN 1835B
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760197
EAN3603602955432
File Type Download
25A3R042B25-SAD11E-C — 3D Model STP Download
25A3R042B25-SAD11E-C — 2D Model DXF Download
25A3R042B25-SAD11E-C — Line Drawing PDF Download
