63A06R-S90AD11E-C
63A06R-S90AD11E-C
63A06R-S90AD11E-C

63A06R-S90AD11E-C

UGC DOR6760202
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$597.00 CAD - $597.00 CAD
$597.00 CAD
$597.00 CAD - $597.00 CAD
$597.00 CAD

Vendu en lots de : 1

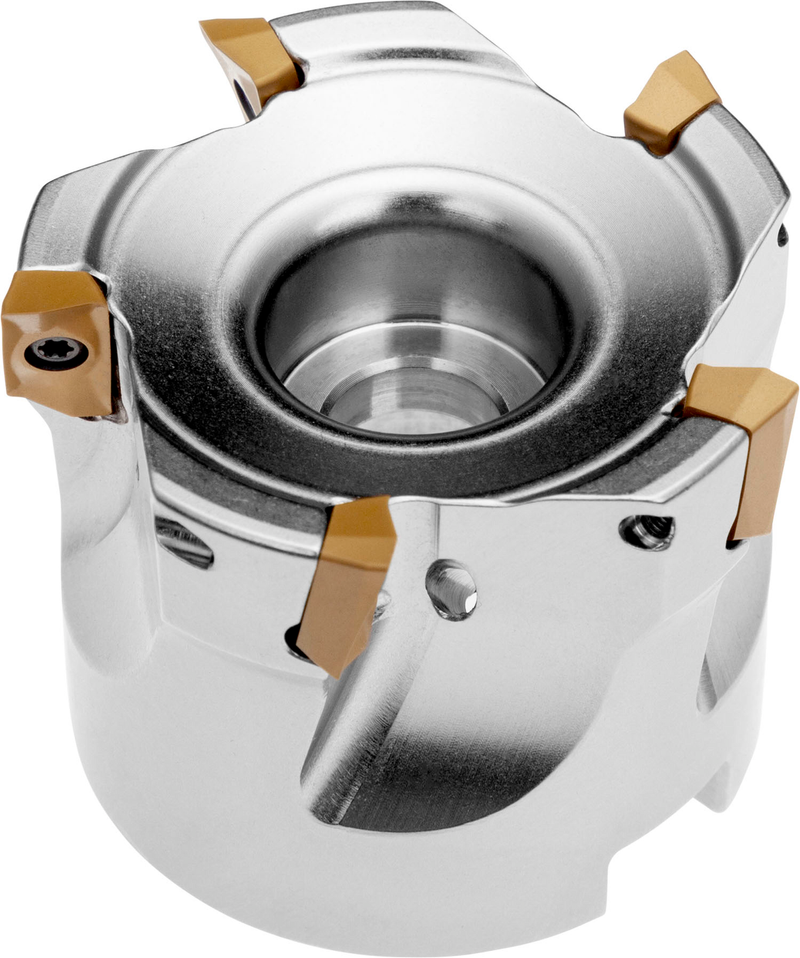

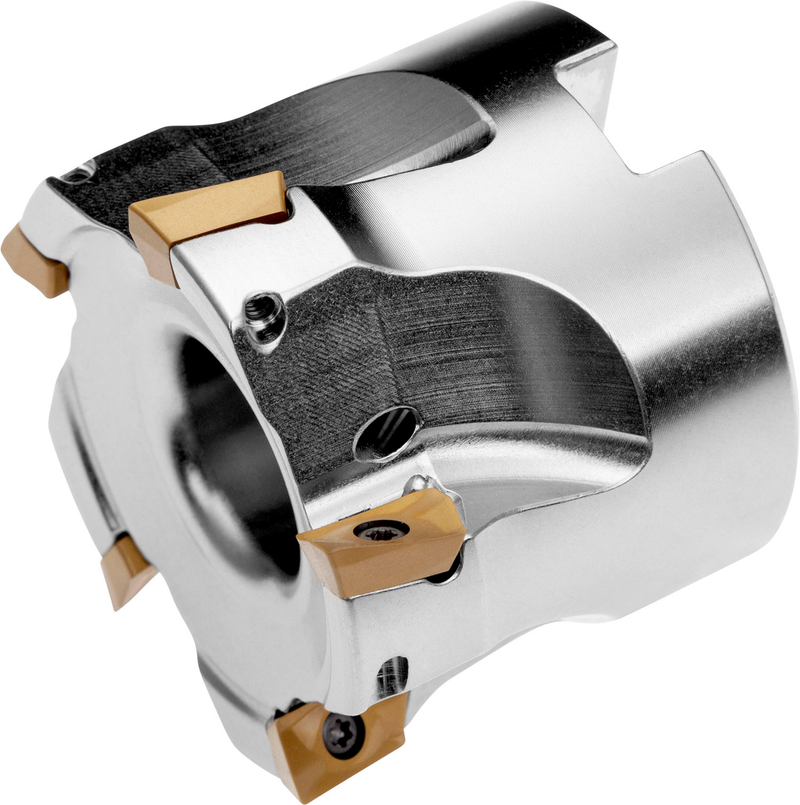

Fraise à épaule avec géométrie positive/négative qui utilise 6 plaquettes ADMX 11T3.. ou ADEX 11T3.. simple face, diamètre de coupe 63mm avec angle d'attaque de 90° et alésage de raccordement de 22mm selon DIN 8030-A, longueur de dépassement de 40mm, arrosage central et pas différentiel pour le fraisage en copiage, le fraisage d'épaulement peu profond, le fraisage de rainure peu profond, l'usinage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 9,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A06R-S90AD11E-C
Product Number6760202
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

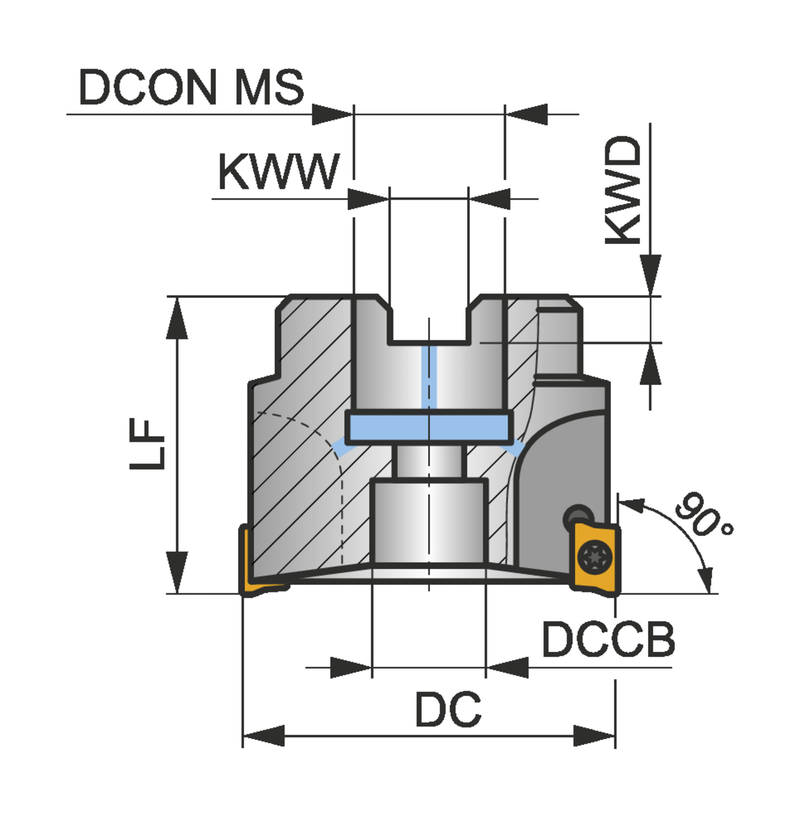

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSAD11E
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760202
EAN3603602955487
File Type Download
63A06R-S90AD11E-C — 3D Model STP Download
63A06R-S90AD11E-C — 2D Model DXF Download
63A06R-S90AD11E-C — Line Drawing PDF Download
