32A5R042B32-SAD11E-C
32A5R042B32-SAD11E-C
32A5R042B32-SAD11E-C

32A5R042B32-SAD11E-C

UGC DOR6760209
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$412.00 CAD - $412.00 CAD
$412.00 CAD
$412.00 CAD - $412.00 CAD
$412.00 CAD

Vendu en lots de : 1

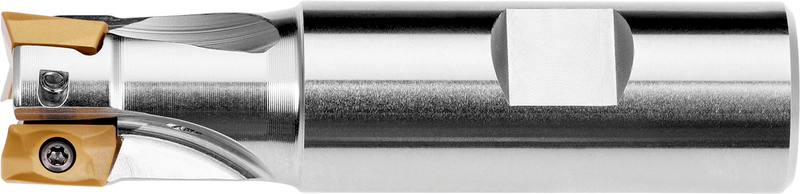

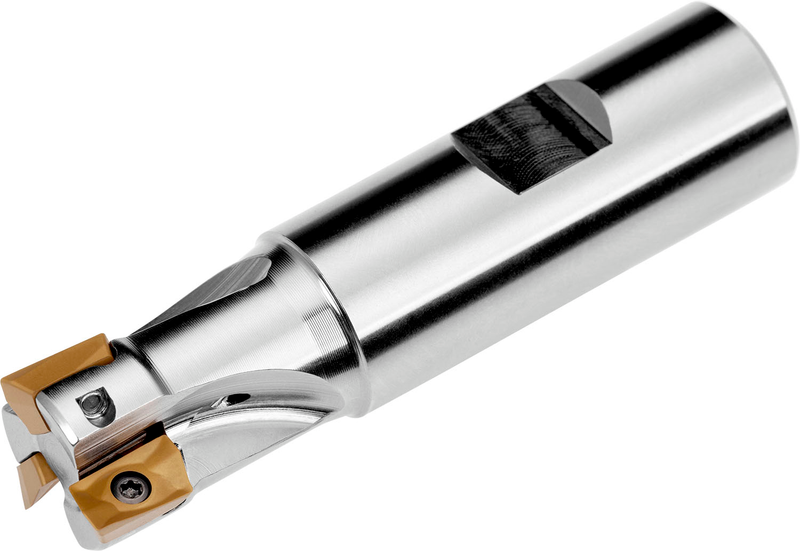

Fraise à épaulement à géométrie positive/négative qui utilise 5 plaquettes simple face ADMX 11T3... ou ADEX 11T3..., diamètre de coupe 32 mm avec angle d'attaque de 90° et queue Weldon de 32 mm selon DIN 1835B, longueur fonctionnelle de 42 mm et longueur totale de 102 mm, lubrification interne, pour le copiage, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 9,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32A5R042B32-SAD11E-C
Product Number6760209
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

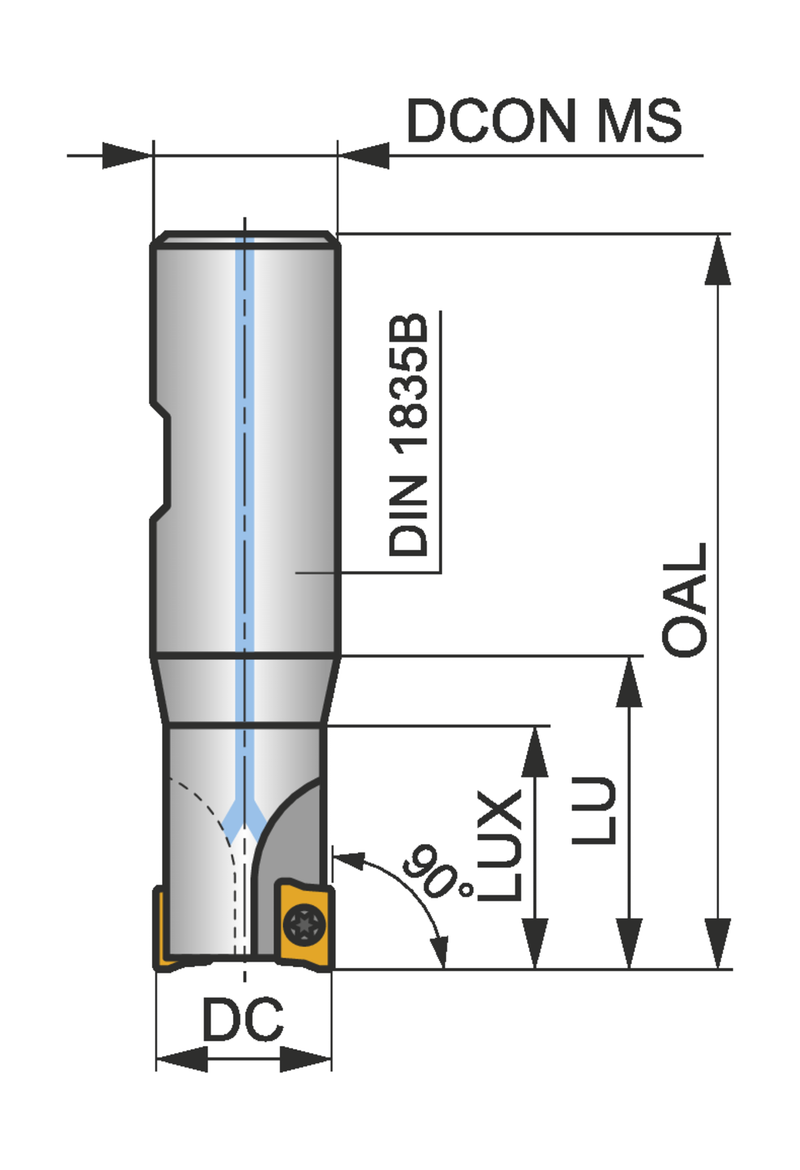

Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)4.016"
Overall Length — mm (OAL)102.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSAD11E
ShankQueue Weldon DIN 1835B
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760209
EAN3603602955555
File Type Download
32A5R042B32-SAD11E-C — 3D Model STP Download
32A5R042B32-SAD11E-C — 2D Model DXF Download
32A5R042B32-SAD11E-C — Line Drawing PDF Download
