18A2R029A20-SAD11E-C
18A2R029A20-SAD11E-C
18A2R029A20-SAD11E-C

18A2R029A20-SAD11E-C

UGC DOR6760318
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$291.00 CAD - $291.00 CAD
$291.00 CAD
$291.00 CAD - $291.00 CAD
$291.00 CAD

Vendu en lots de : 1

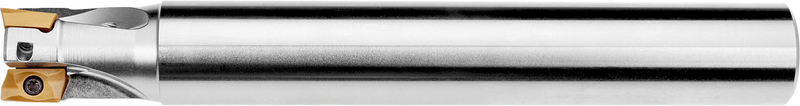

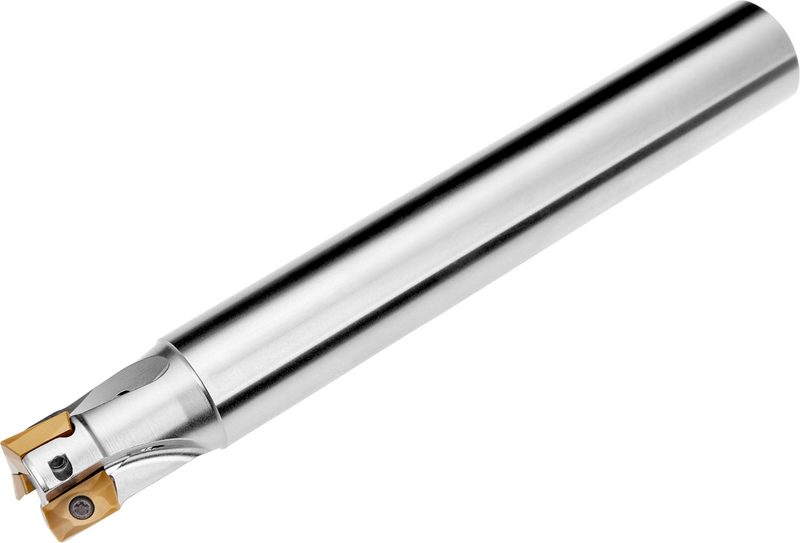

Fraise à épaulement à géométrie positive/négative utilisant 2 plaquettes simple face ADMX 11T3.. ou ADEX 11T3.., diamètre de coupe 18mm avec angle d'attaque de 90° et queue cylindrique de 20mm conforme à la norme DIN 1835A, longueur fonctionnelle de 29mm et longueur totale de 150mm, arrosage par l'intérieur pour le copiage, le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 9,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)18A2R029A20-SAD11E-C
Product Number6760318
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

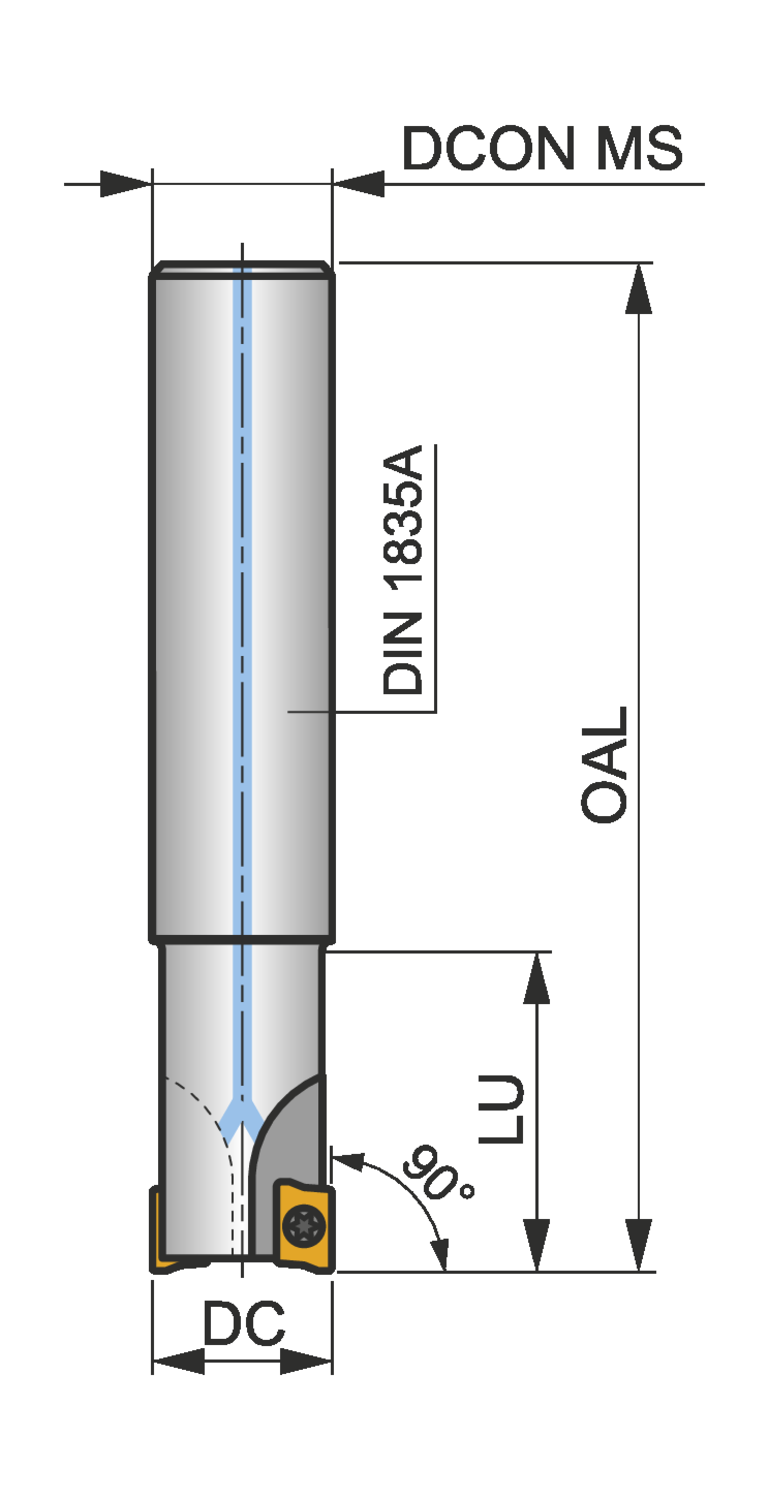

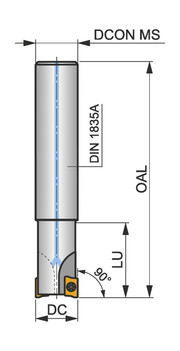

Dimensions
Cutting Diameter — in (DC)0.709"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)5.906"
Overall Length — mm (OAL)150.0 mm
Usable Length — mm (LU)29.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSAD11E
ShankQueue cylindrique DIN 1835A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760318
EAN3603602956644
File Type Download
18A2R029A20-SAD11E-C — 3D Model STP Download
18A2R029A20-SAD11E-C — 2D Model DXF Download
18A2R029A20-SAD11E-C — Line Drawing PDF Download
