075A2R276C075-ISAD11E-C
075A2R276C075-ISAD11E-C
075A2R276C075-ISAD11E-C

075A2R276C075-ISAD11E-C

UGC DOR6790700
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$301.00 CAD - $301.00 CAD
$301.00 CAD
$301.00 CAD - $301.00 CAD
$301.00 CAD

Vendu en lots de : 1

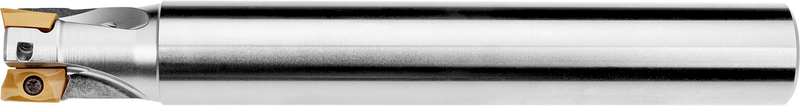

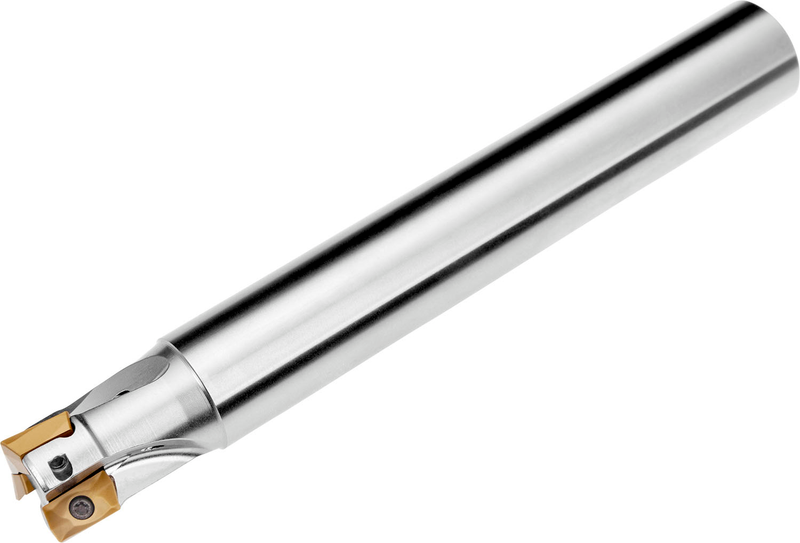

Fraise à épaule à géométrie positive/négative qui utilise 2 plaquettes simple face ADMX 11T3.. ou ADEX 11T3.., diamètre de coupe 0,750'', angle d'approche 90° et queue cylindrique 0,750'' selon DIN 1835A, longueur fonctionnelle 2,756'' et longueur totale 5,906'', arrosage interne pour le copiage, le fraisage d'épaulement peu profond, le fraisage de rainure peu profond, l'interpolation hélicoïdale, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 0,354''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)075A2R276C075-ISAD11E-C
Product Number6790700
Product FamilyISAD11E

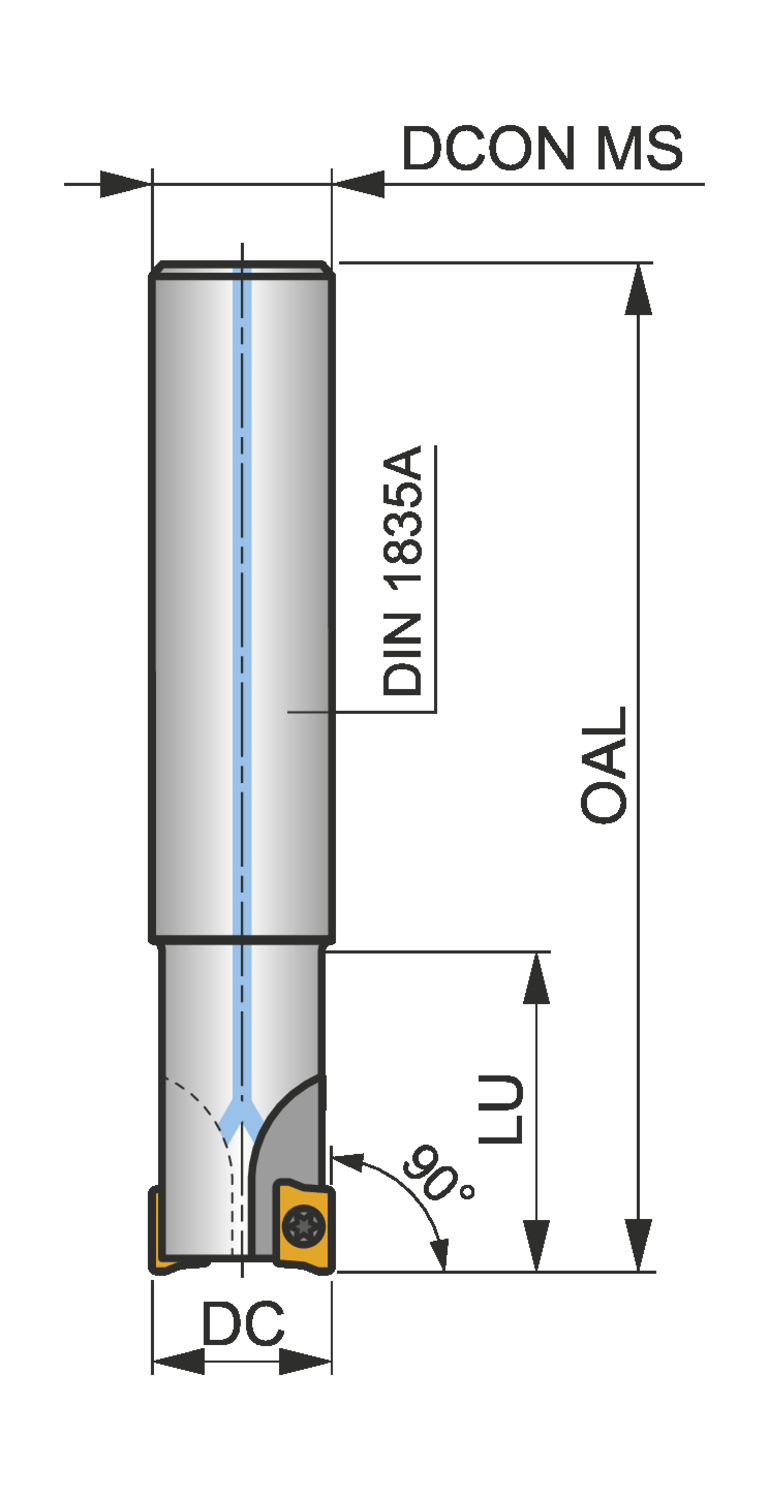

Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.1 mm
Overall Length — in (OAL)5.906"
Overall Length — mm (OAL)150.0 mm
Usable Length — in (LU)2.756"
Usable Length — mm (LU)70.0 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSAD11E
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6790700
EAN3603602984692
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Utilisation possible
File Type Download
075A2R276C075-ISAD11E-C — 3D Model STP Download
075A2R276C075-ISAD11E-C — 2D Model DXF Download
075A2R276C075-ISAD11E-C — Line Drawing PDF Download
