22A3R029A20-SAD11E-C
22A3R029A20-SAD11E-C
22A3R029A20-SAD11E-C

22A3R029A20-SAD11E-C

UGC DOR6923283
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$316.00 CAD - $316.00 CAD
$316.00 CAD
$316.00 CAD - $316.00 CAD
$316.00 CAD

Vendu en lots de : 1

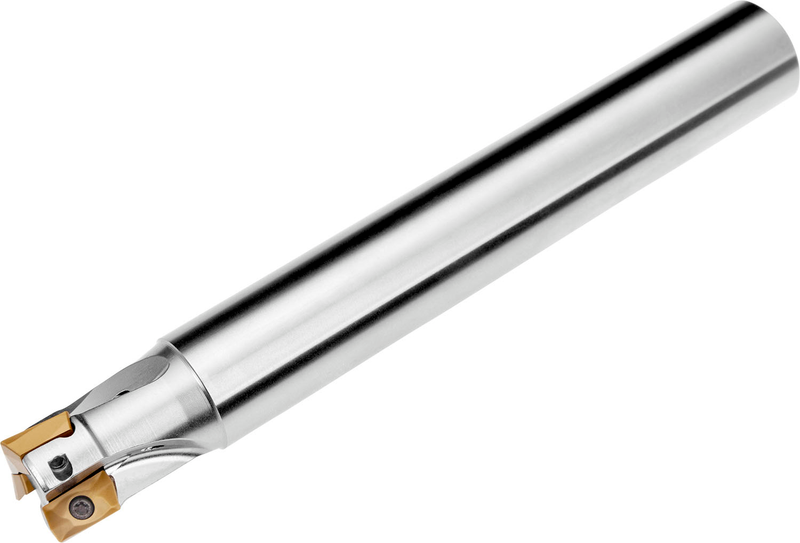

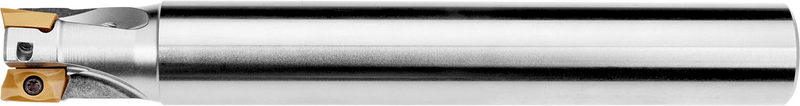

Fraise à épaulement à géométrie positive/négative qui utilise 3 plaquettes simple face ADMX 11T3... ou ADEX 11T3..., diamètre de coupe de 22 mm avec un angle d'attaque de 90° et une queue cylindrique de 20 mm selon DIN 1835A, une longueur utile de 29 mm et une longueur totale de 200 mm, arrosage central pour le fraisage en copie, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, l'usinage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 9,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)22A3R029A20-SAD11E-C
Product Number6923283
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

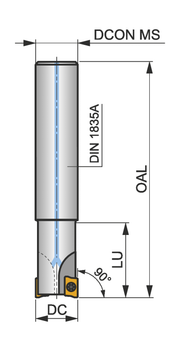

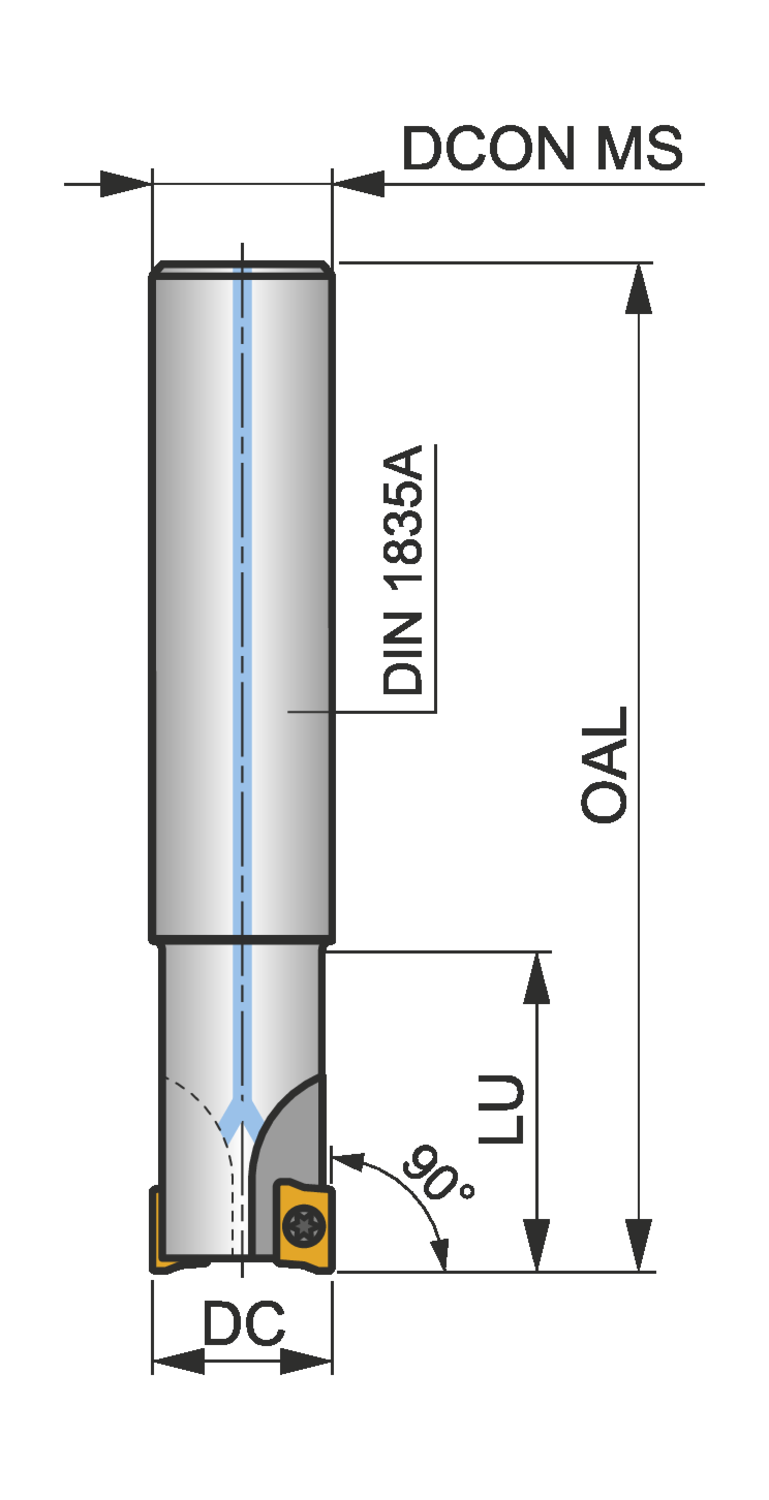

Dimensions
Cutting Diameter — in (DC)0.866"
Cutting Diameter — mm (DC)22.0 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Usable Length — mm (LU)29.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSAD11E
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6923283
EAN3603603078017
File Type Download
22A3R029A20-SAD11E-C — 3D Model STP Download
22A3R029A20-SAD11E-C — 2D Model DXF Download
22A3R029A20-SAD11E-C — Line Drawing PDF Download
