150A3R160W125-ISAD16E-C
150A3R160W125-ISAD16E-C

150A3R160W125-ISAD16E-C

UGC DOR6798480
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$418.00 CAD - $418.00 CAD
$418.00 CAD
$418.00 CAD - $418.00 CAD
$418.00 CAD

Vendu en lots de : 1

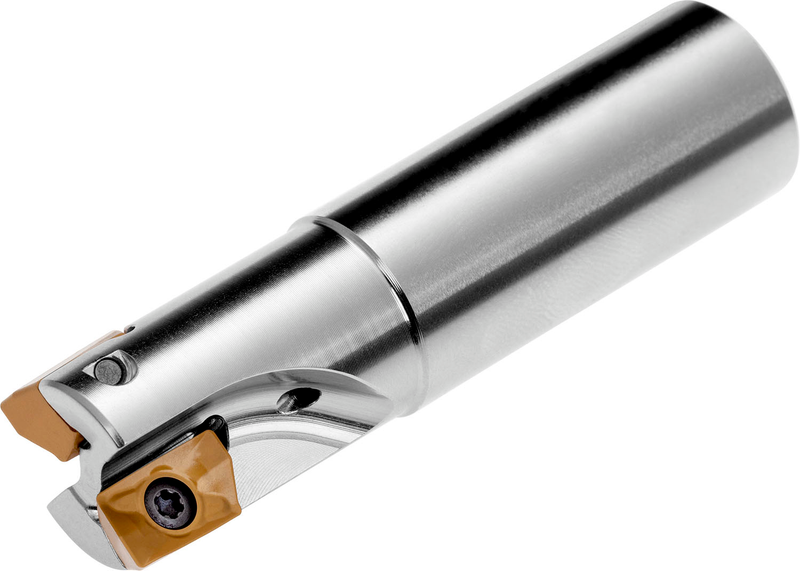

Fraise à épaulement à géométrie positive/négative qui utilise 3 plaquettes simple-face ADMX 1606.. ou ADEX 1606.., diamètre de coupe 1.500'' avec angle d'attaque de 90° et queue Weldon de 1.250'' selon DIN 1835B, longueur fonctionnelle de 1.600'' et longueur totale de 4.350'', arrosage central pour le fraisage en copiage, fraisage d'épaulement peu profond, fraisage de fente peu profonde, ramping, fraisage hélicoïdal, fraisage en plongée et fraisage progressif en plongée avec une profondeur de coupe maximale de .512''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)150A3R160W125-ISAD16E-C
Product Number6798480
Product FamilyISAD16E

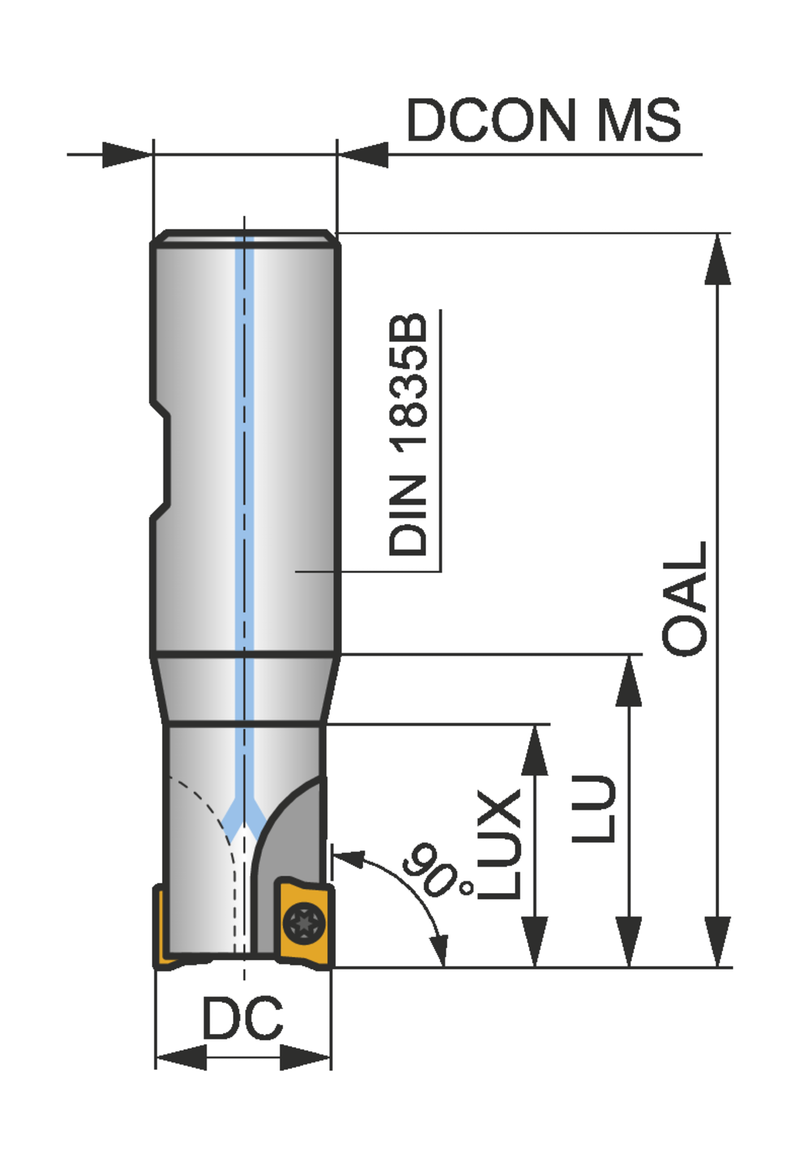

Dimensions
Cutting Diameter — in (DC)1.5"
Cutting Diameter — mm (DC)38.1 mm
Overall Length — in (OAL)4.35"
Overall Length — mm (OAL)110.0 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.8 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSAD16E
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6798480
EAN3603602991157
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Utilisation possible
File Type Download
150A3R160W125-ISAD16E-C — 3D Model STP Download
150A3R160W125-ISAD16E-C — 2D Model DXF Download
150A3R160W125-ISAD16E-C — Line Drawing PDF Download
