40A4R043M16-SAD16E-C
40A4R043M16-SAD16E-C
40A4R043M16-SAD16E-C

40A4R043M16-SAD16E-C

UGC DOR6760168
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$398.00 CAD - $398.00 CAD
$398.00 CAD
$398.00 CAD - $398.00 CAD
$398.00 CAD

Vendu en lots de : 1

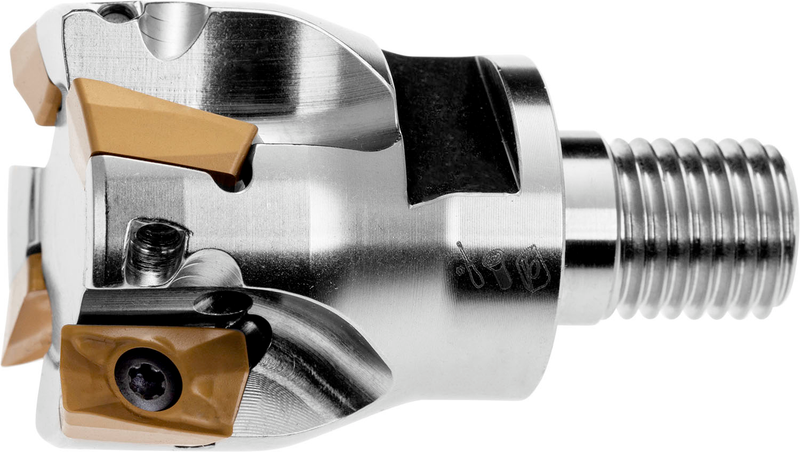

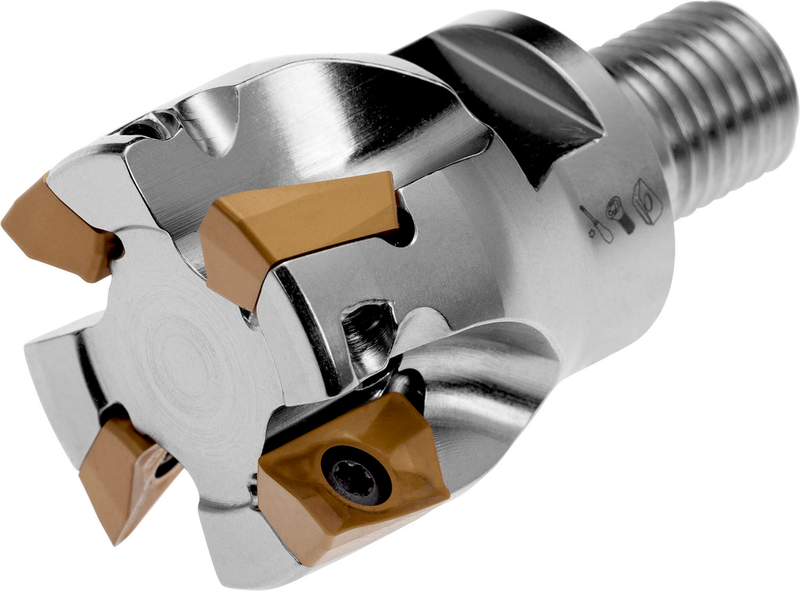

Fraise à épaulement à géométrie positive/négative utilisant 4 plaquettes simple face ADMX 1606... ou ADEX 1606..., diamètre de coupe 40 mm avec un angle d'attaque de 90° et une queue filetée M16 pour porte-outils modulaires standard, longueur en porte-à-faux de 43 mm, arrosage central pour le fraisage en copiage, le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes, le fraisage en ramping, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressif avec une profondeur de coupe maximale de 13,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40A4R043M16-SAD16E-C
Product Number6760168
Product FamilySAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)13.0 mm

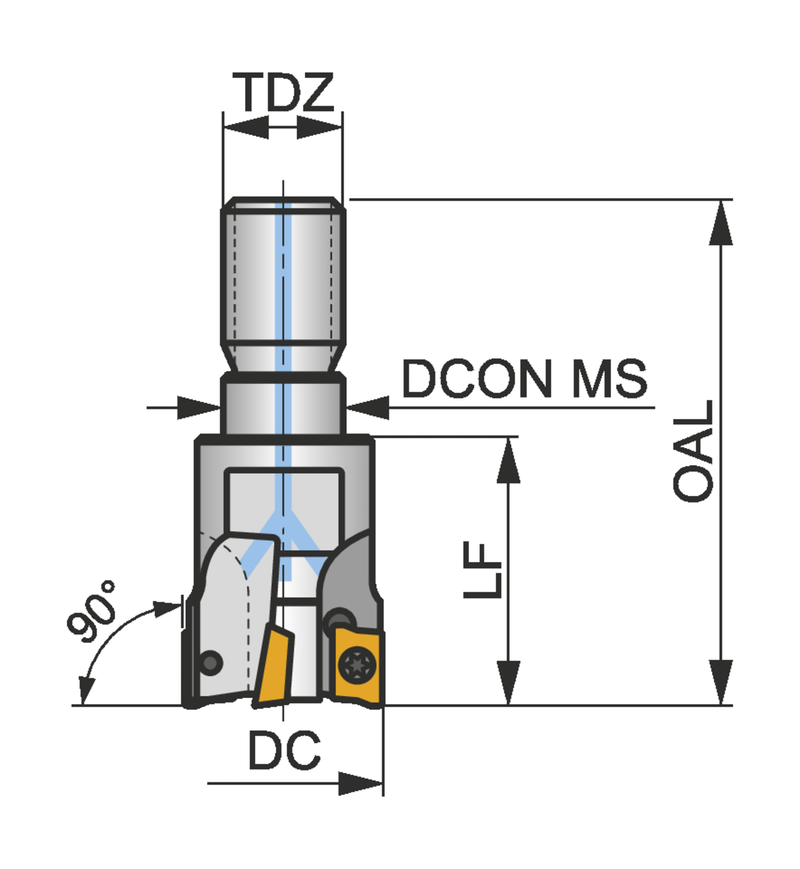

Dimensions
Cutting Diameter — in (DC)1.575"
Cutting Diameter — mm (DC)40.0 mm
Overall Length — in (OAL)2.598"
Overall Length — mm (OAL)66.0 mm
Functional Length — mm (LF)43.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSAD16E
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760168
EAN3603602955142
File Type Download
40A4R043M16-SAD16E-C — 3D Model STP Download
40A4R043M16-SAD16E-C — 2D Model DXF Download
40A4R043M16-SAD16E-C — Line Drawing PDF Download
