40A3R050B32-SAD16E-C
40A3R050B32-SAD16E-C

40A3R050B32-SAD16E-C

UGC DOR6760171
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$418.00 CAD - $418.00 CAD
$418.00 CAD
$418.00 CAD - $418.00 CAD
$418.00 CAD

Vendu en lots de : 1

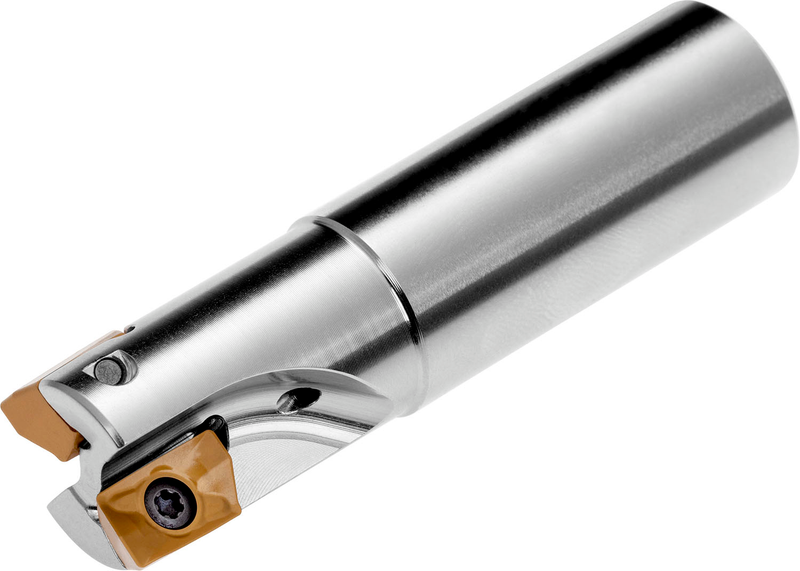

Fraise à épaulement à géométrie positive/négative qui utilise 3 plaquettes simple-face ADMX 1606.. ou ADEX 1606.., diamètre de coupe de 40 mm avec un angle d'attaque de 90° et une queue Weldon de 32 mm selon DIN 1835B, longueur fonctionnelle de 50 mm et longueur totale de 110 mm, arrosage par l'intérieur pour le fraisage de forme, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 13,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40A3R050B32-SAD16E-C
Product Number6760171
Product FamilySAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)13.0 mm

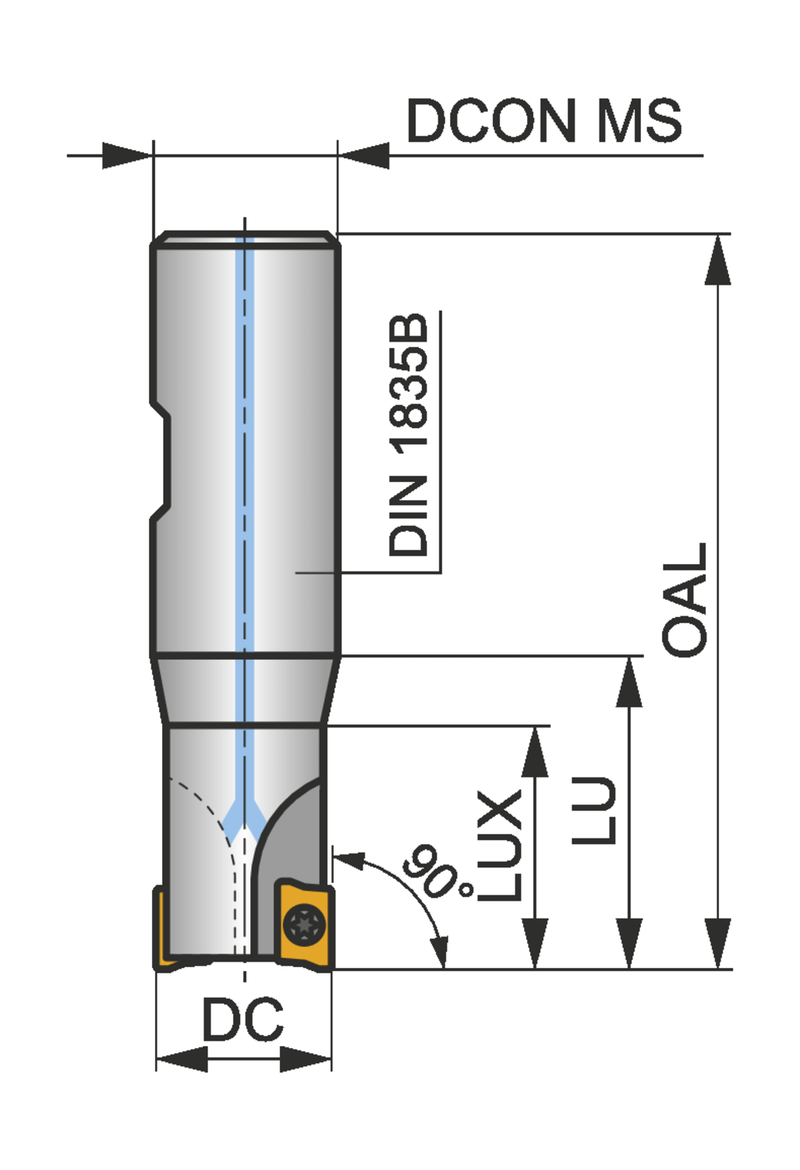

Dimensions
Cutting Diameter — in (DC)1.575"
Cutting Diameter — mm (DC)40.0 mm
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSAD16E
ShankQueue Weldon DIN 1835B
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760171
EAN3603602955173
File Type Download
40A3R050B32-SAD16E-C — 3D Model STP Download
40A3R050B32-SAD16E-C — 2D Model DXF Download
40A3R050B32-SAD16E-C — Line Drawing PDF Download
