300A05R-IS90AD16E-C
300A05R-IS90AD16E-C
300A05R-IS90AD16E-C

300A05R-IS90AD16E-C

UGC DOR6798487
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$724.00 CAD - $724.00 CAD
$724.00 CAD
$724.00 CAD - $724.00 CAD
$724.00 CAD

Vendu en lots de : 1

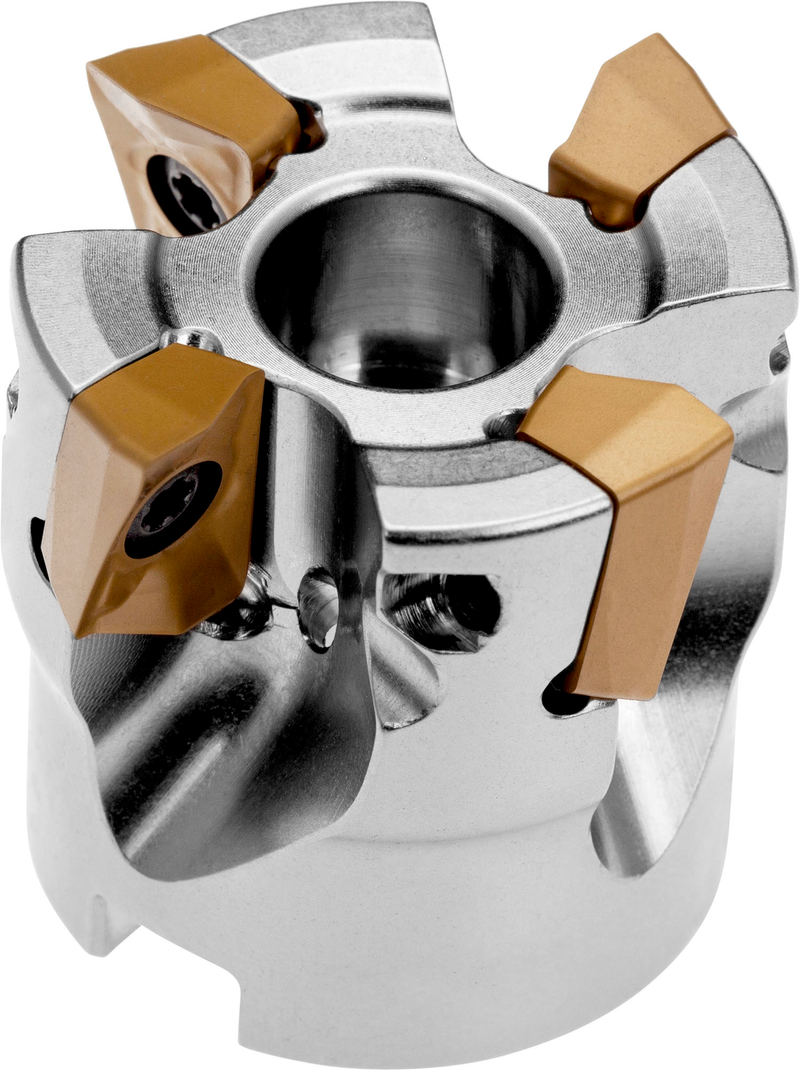

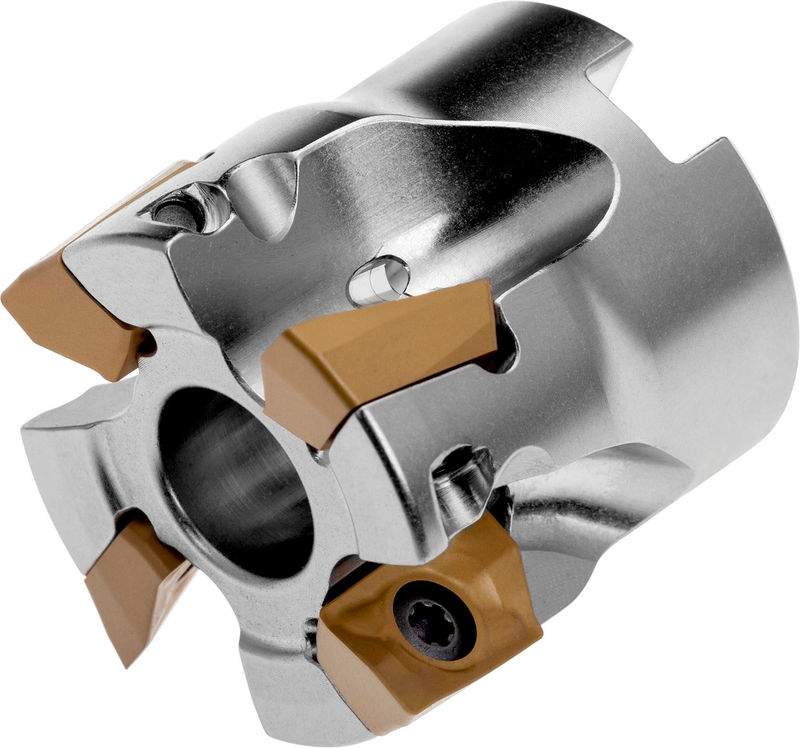

Fraise à épaulement à géométrie positive/négative qui utilise 5 plaquettes simple face ADMX 1606... ou ADEX 1606..., diamètre de coupe de 3.000'' avec un angle d'attaque de 90° et un alésage de raccordement de 1.000'' selon DIN 8030-A, une longueur de dépassement de 1.969'', un arrosage par l'intérieur pour le fraisage en plongée, le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage par plongées successives et le fraisage en plongée progressive avec une profondeur de coupe maximale de 0.512''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)300A05R-IS90AD16E-C
Product Number6798487
Product FamilyISAD16E

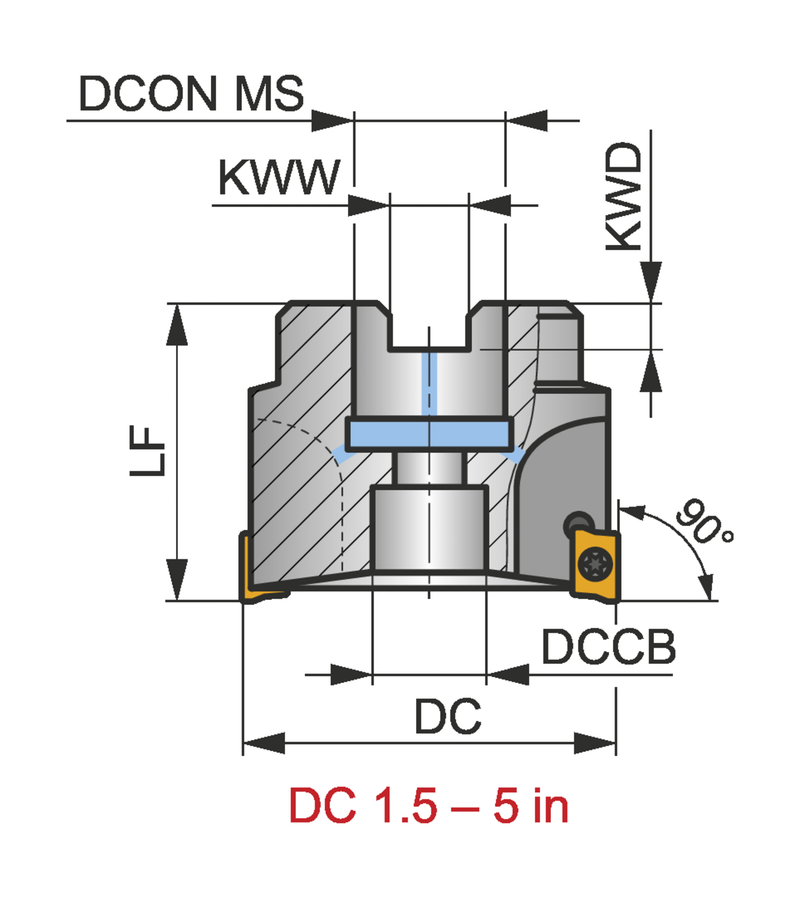

Dimensions
Cutting Diameter — in (DC)3.0"
Cutting Diameter — mm (DC)76.2 mm
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.01 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSAD16E
ShankFraise-cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6798487
EAN3603602991225
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Utilisation possible
File Type Download
300A05R-IS90AD16E-C — 3D Model STP Download
300A05R-IS90AD16E-C — 2D Model DXF Download
300A05R-IS90AD16E-C — Line Drawing PDF Download
