16A2R032B16-SAP10D-C
16A2R032B16-SAP10D-C
16A2R032B16-SAP10D-C

16A2R032B16-SAP10D-C

UGC DOR6758364
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$454.00 CAD - $454.00 CAD
$454.00 CAD
$454.00 CAD - $454.00 CAD
$454.00 CAD

Vendu en lots de : 1

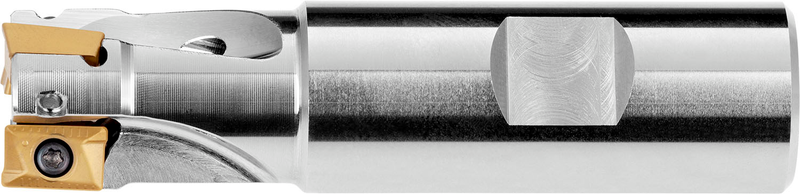

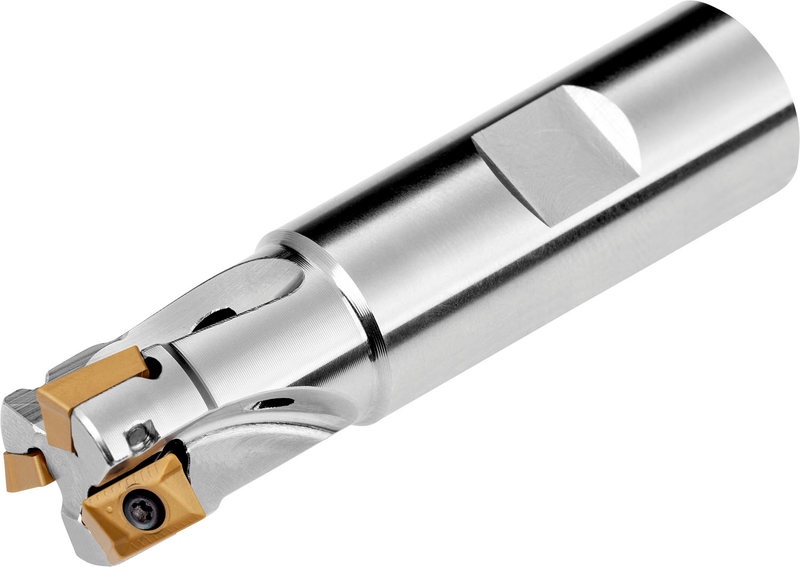

Fraise à épaulement à géométrie double positive qui utilise 2 inserts simple face APKT 1003.., diamètre de coupe de 16 mm avec un angle d'attaque de 90° et un manche Weldon de 16 mm selon DIN 1835B, longueur totale de 80 mm, arrosage central pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 9,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)16A2R032B16-SAP10D-C
Product Number6758364
Product FamilySAP10D
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

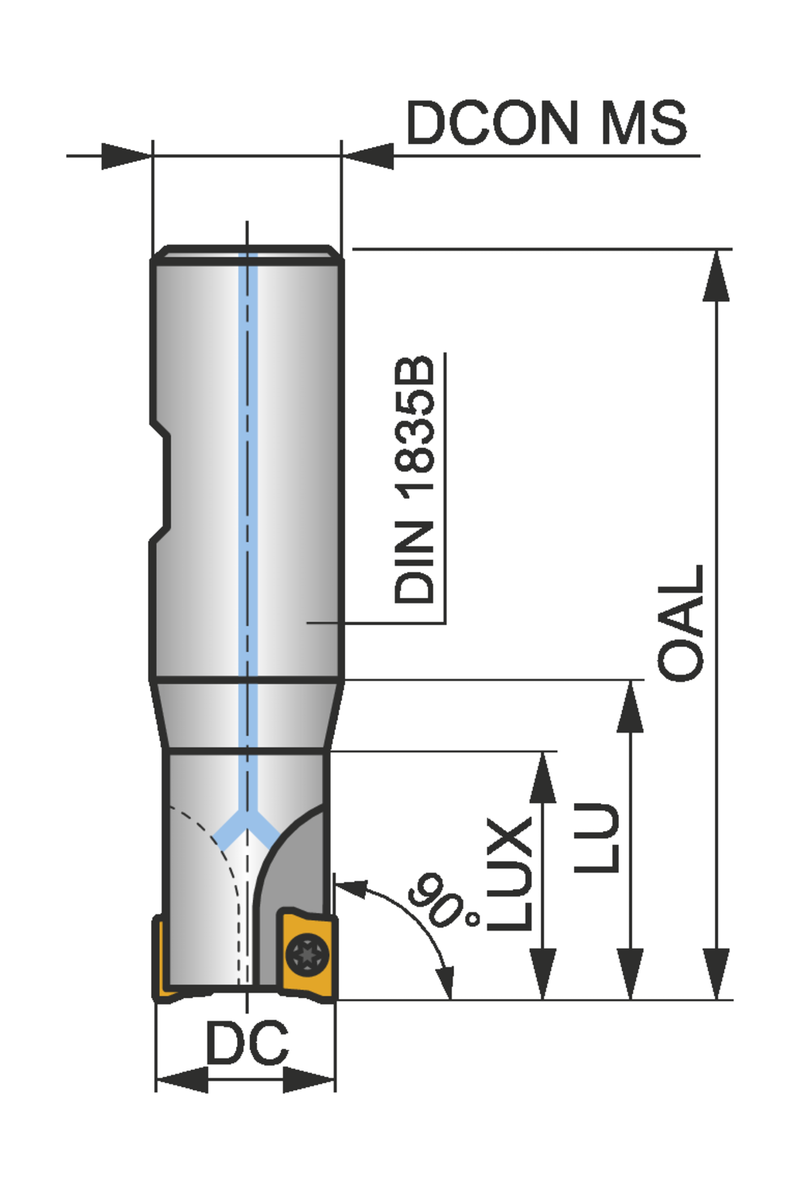

Dimensions
Cutting Diameter — in (DC)0.63"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.15"
Overall Length — mm (OAL)80.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSAP10D
ShankQueue cylindrique avec méplat DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6758364
EAN3603602937100
File Type Download
16A2R032B16-SAP10D-C — 3D Model STP Download
16A2R032B16-SAP10D-C — 2D Model DXF Download
16A2R032B16-SAP10D-C — Line Drawing PDF Download
