80B7R-S90AP16D
80B7R-S90AP16D
80B7R-S90AP16D

80B7R-S90AP16D

UGC DOR6757028
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,169.00 CAD - $1,169.00 CAD
$1,169.00 CAD
$1,169.00 CAD - $1,169.00 CAD
$1,169.00 CAD

Vendu en lots de : 1

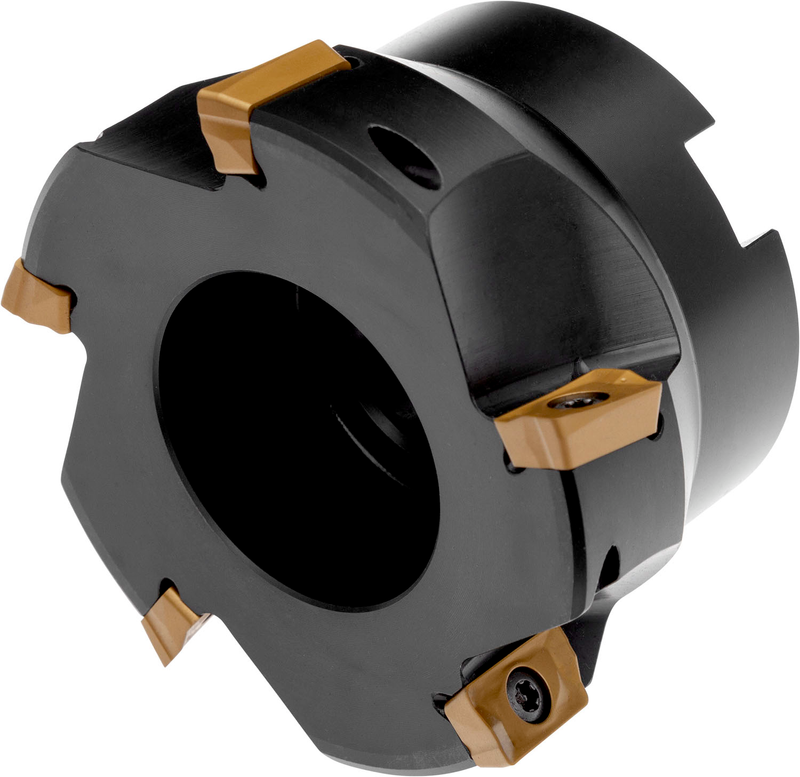

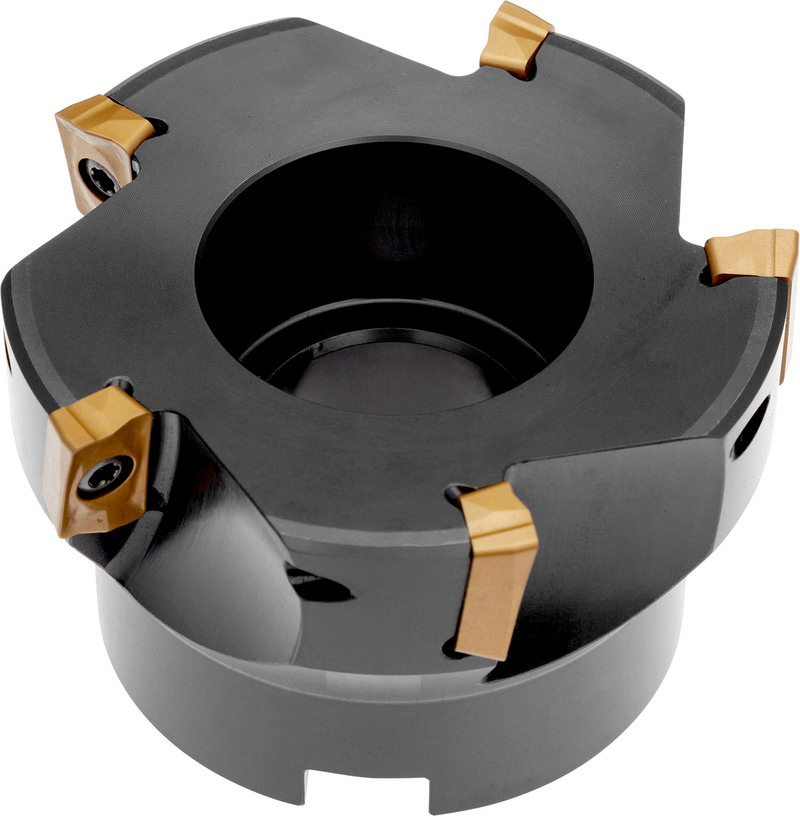

Fraise à épaule à géométrie positive/négative qui utilise 7 plaquettes simple face APKT 1604... ou APET 1604..., diamètre de coupe 80mm avec un angle d'attaque de 90° et un alésage de connexion de 27mm selon DIN 8030-B, une longueur de dépassement de 50mm et un pas différentiel pour le fraisage d'épaulement peu profond, le fraisage de fentes peu profondes, l'interpolation hélicoïdale, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 13,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80B7R-S90AP16D
Product Number6757028
Product FamilySAP16D
Insert Geometry
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Overall Length — in (OAL)1.969"
Overall Length — mm (OAL)50.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)7
Tool Information
Tool DesignSAP16D
ShankFraise à surfacer-planer DIN 8030 B
Direction of ToolD'accord
Reference Numbers
EDP Number6757028
EAN3603602923943
File Type Download
80B7R-S90AP16D — Line Drawing PDF Download
