32E5R120A32-SBN10-C
32E5R120A32-SBN10-C
32E5R120A32-SBN10-C

32E5R120A32-SBN10-C

UGC DOR7259721
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$439.00 CAD - $439.00 CAD
$439.00 CAD
$439.00 CAD - $439.00 CAD
$439.00 CAD

Vendu en lots de : 1

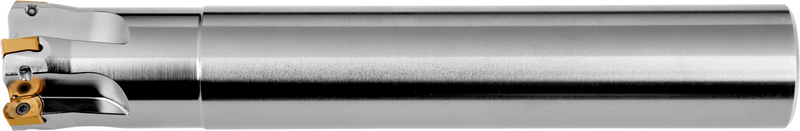

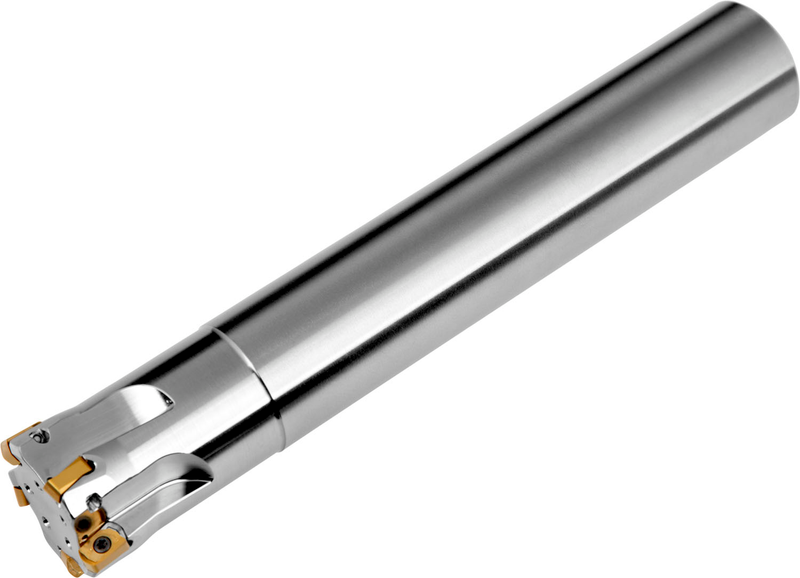

Fraise à avance élevée avec géométrie positive/négative qui utilise 5 inserts BNGX 10T3... ou ANHX 10T3..., diamètre de coupe 32 mm avec un angle d'approche de 20° et un manche cylindrique de 32 mm selon DIN 1835A, longueur fonctionnelle de 120 mm et longueur totale de 200 mm, arrosage interne et pas différentiel pour le fraisage de face, le fraisage de forme, le fraisage d'épaulement peu profond, le ramping, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32E5R120A32-SBN10-C
Product Number7259721
Product FamilySBN10
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm

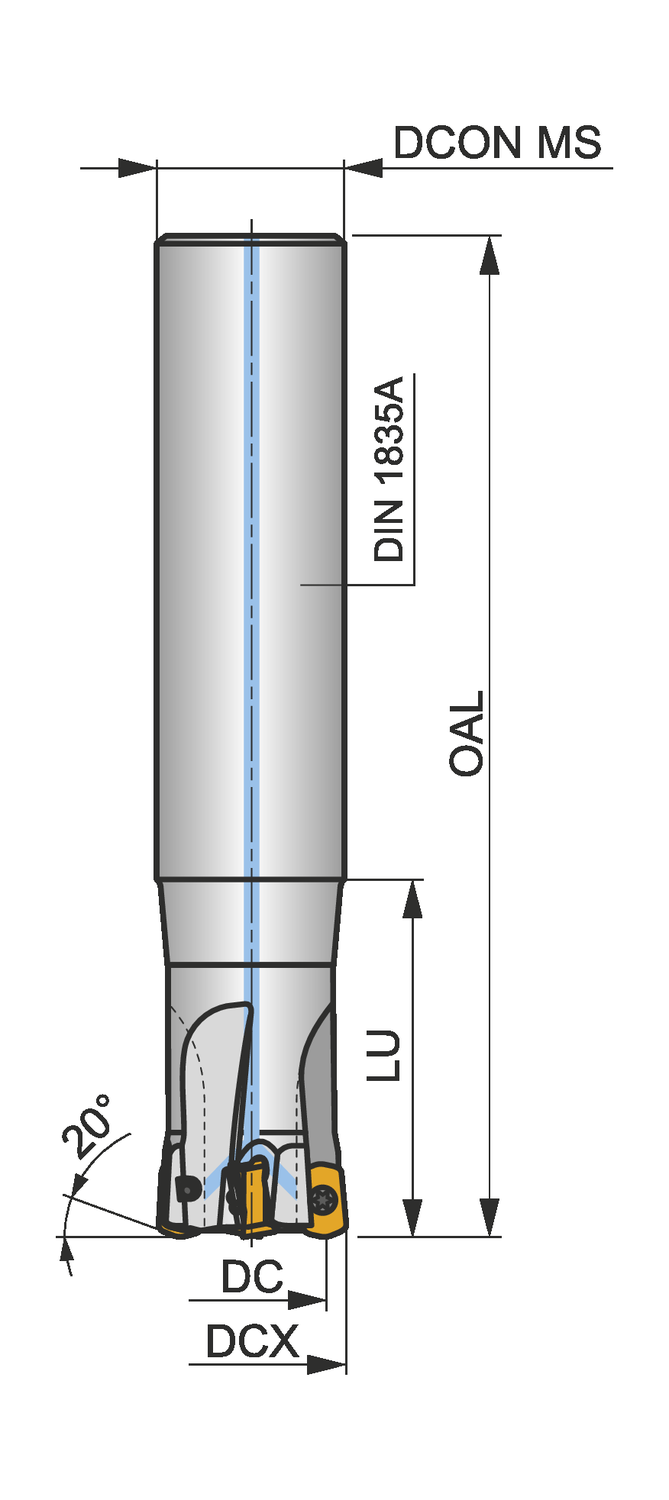

Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Usable Length — mm (LU)120.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSBN10
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7259721
EAN3603603229051
File Type Download
32E5R120A32-SBN10-C — 3D Model STP Download
32E5R120A32-SBN10-C — 2D Model DXF Download
32E5R120A32-SBN10-C — Line Drawing PDF Download
