35E6R050A32-SBN10-C
35E6R050A32-SBN10-C
35E6R050A32-SBN10-C

35E6R050A32-SBN10-C

UGC DOR7452551
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$461.00 CAD - $461.00 CAD
$461.00 CAD
$461.00 CAD - $461.00 CAD
$461.00 CAD

Vendu en lots de : 1

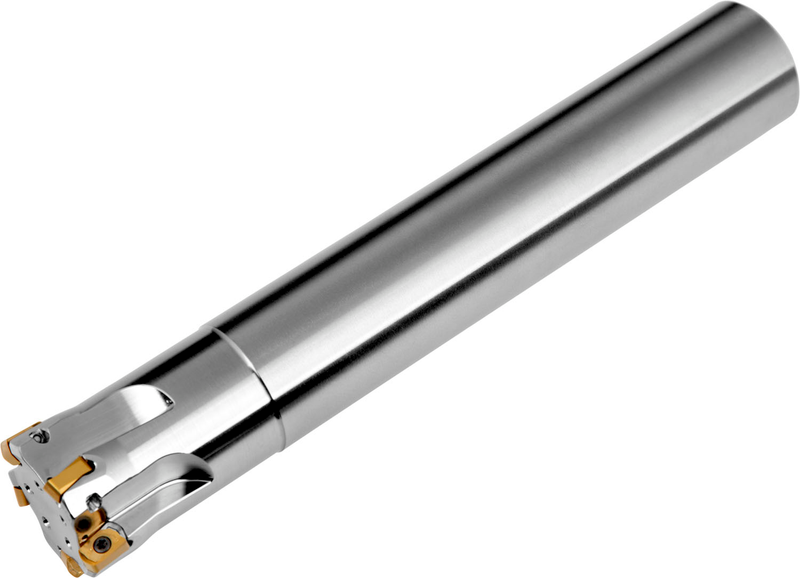

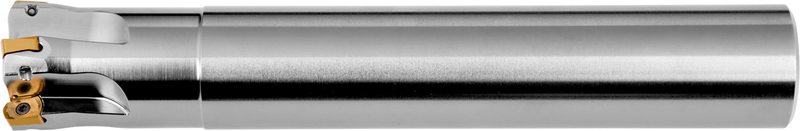

Fraise à avance rapide à géométrie positive/négative utilisant 6 plaquettes BNGX 10T3.. ou ANHX 10T3.., diamètre de coupe 35 mm avec angle d'attaque de 20° et queue cylindrique de 32 mm selon DIN 1835A, longueur fonctionnelle de 50 mm et longueur totale de 200 mm, avec arrosage par l'intérieur et pas différentiel pour le surfaçage, la copie, le fraisage d'épaulements peu profonds, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)35E6R050A32-SBN10-C
Product Number7452551
Product FamilySBN10
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm

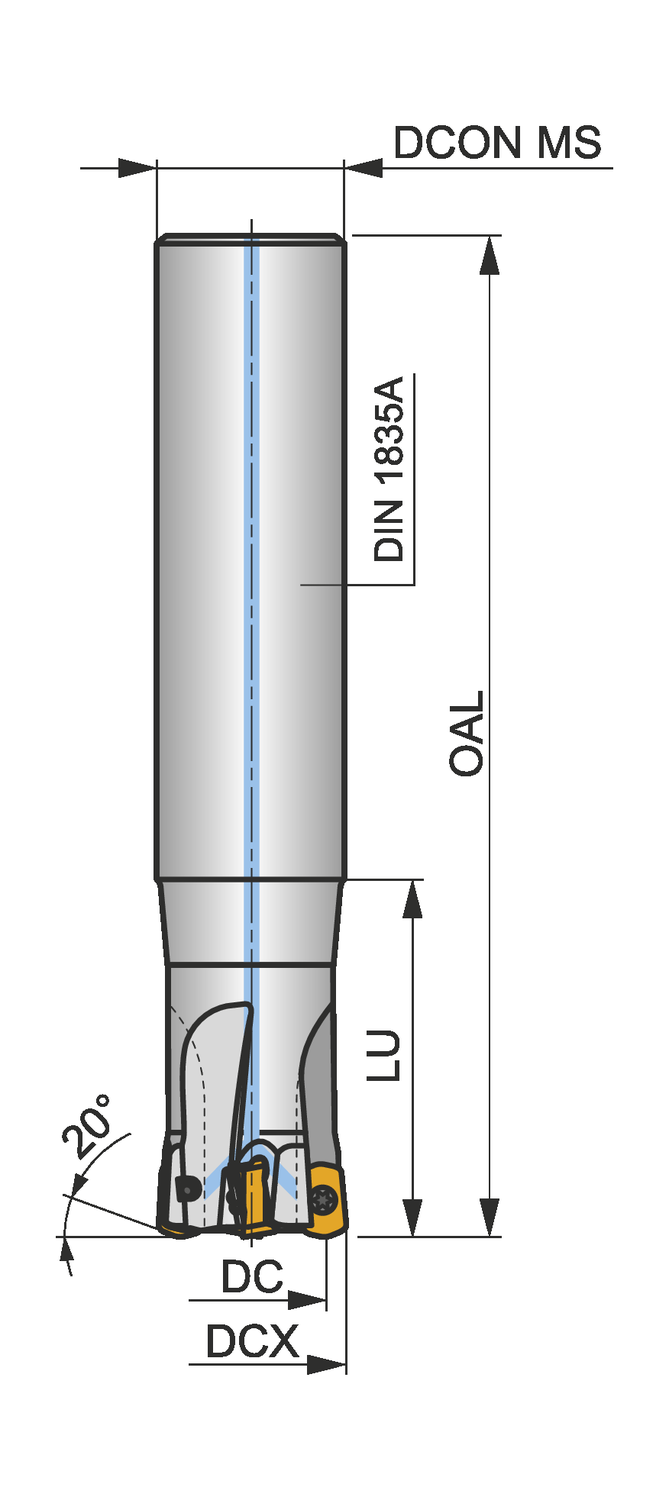

Dimensions
Cutting Diameter — in (DC)1.118"
Cutting Diameter — mm (DC)28.4 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSBN10
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7452551
EAN3603603388147
File Type Download
35E6R050A32-SBN10-C — 3D Model STP Download
35E6R050A32-SBN10-C — 2D Model DXF Download
35E6R050A32-SBN10-C — Line Drawing PDF Download
