25E4R033M12-SBN10-C
25E4R033M12-SBN10-C
25E4R033M12-SBN10-C

25E4R033M12-SBN10-C

UGC DOR7452554
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$365.00 CAD - $365.00 CAD
$365.00 CAD
$365.00 CAD - $365.00 CAD
$365.00 CAD

Vendu en lots de : 1

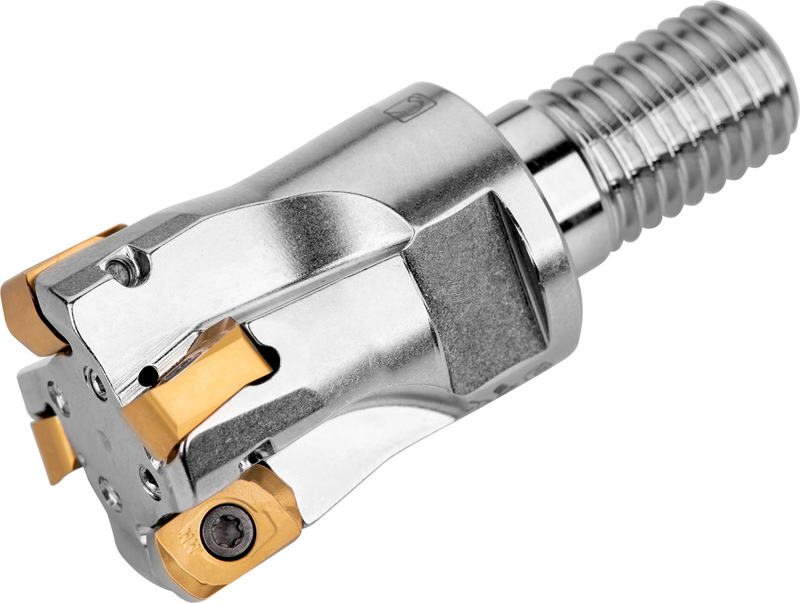

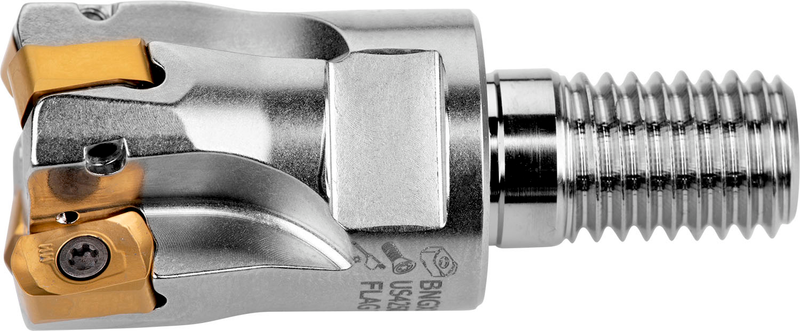

Fraise grande avance avec géométrie positive/négative qui utilise 4 plaquettes BNGX 10T3.. ou ANHX 10T3.., diamètre de coupe 25mm avec un angle d'approche de 20° et une queue filetée M12 pour porte-outils modulaires standards, longueur de dépassement de 33mm, arrosage central et pas différentiel pour le surfaçage, la copie, le fraisage d'épaulement peu profond, le ramping, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif avec une profondeur de coupe maximale de 1.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25E4R033M12-SBN10-C
Product Number7452554
Product FamilySBN10
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm
Dimensions
Cutting Diameter — in (DC)0.724"
Cutting Diameter — mm (DC)18.4 mm
Overall Length — in (OAL)2.165"
Overall Length — mm (OAL)55.0 mm
Functional Length — mm (LF)33.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)M12
Tool Information
Tool DesignSBN10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7452554
EAN3603603388178
File Type Download
25E4R033M12-SBN10-C — 3D Model STP Download
25E4R033M12-SBN10-C — 2D Model DXF Download
25E4R033M12-SBN10-C — Line Drawing PDF Download
