50A07R-SMOBN10-C
50A07R-SMOBN10-C
50A07R-SMOBN10-C

50A07R-SMOBN10-C

UGC DOR8258997
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$572.00 CAD - $572.00 CAD
$572.00 CAD
$572.00 CAD - $572.00 CAD
$572.00 CAD

Vendu en lots de : 1

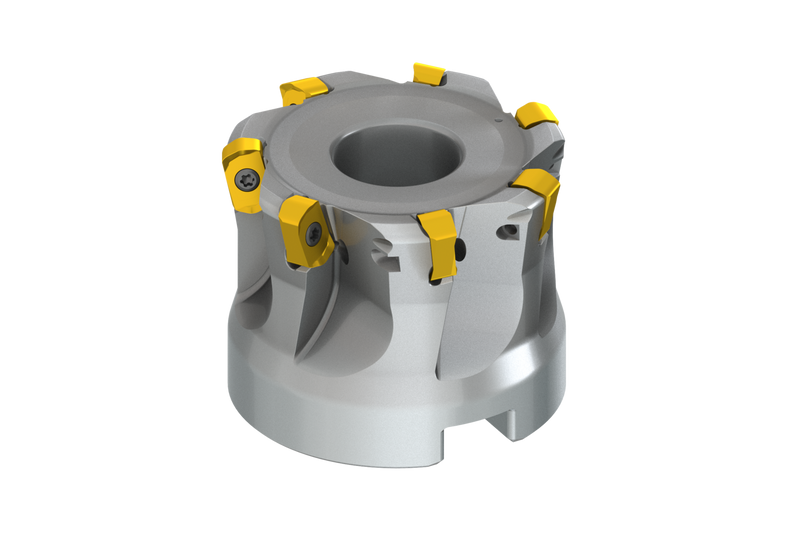

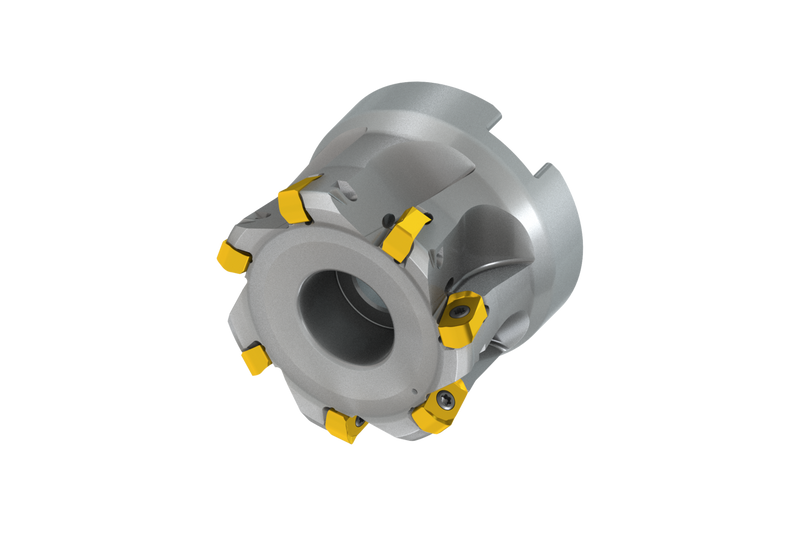

Fraise grande avance à double géométrie négative utilisant 7 plaquettes BNGX 10T3, diamètre de coupe de 45 mm à 50 mm maximum avec un angle d'approche de 29° et un alésage de connexion de 22 mm selon la norme DIN 8030-A, 40 mm fonctionnels et arrosage central, pas différentiel pour le surfaçage, le fraisage d'épaulement peu profond, le fraisage en plongée, le fraisage de copiage, l'usinage en rampe, le fraisage en plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 1 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50A07R-SMOBN10-C
Product Number8258997
Product FamilySBN10
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm

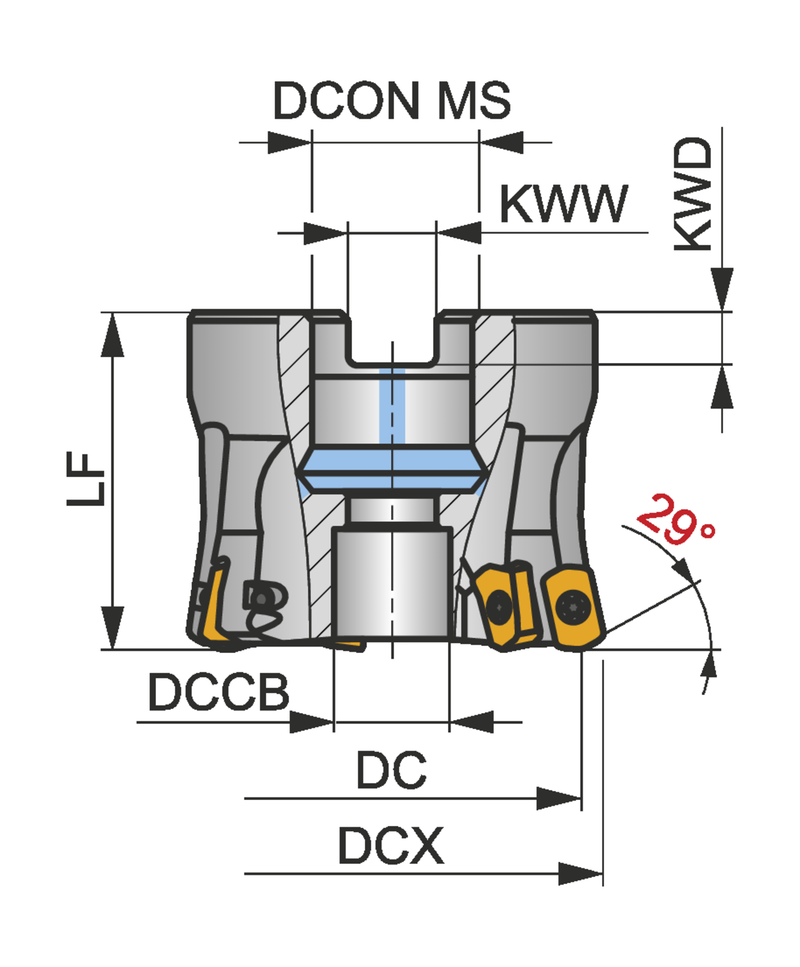

Dimensions
Cutting Diameter — in (DC)1.772"
Cutting Diameter — mm (DC)45.0 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)7
Tool Information
Tool DesignSBN10
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8258997
EAN3603604031295
File Type Download
50A07R-SMOBN10-C — 3D Model STP Download
50A07R-SMOBN10-C — 2D Model DXF Download
50A07R-SMOBN10-C — Line Drawing PDF Download
