200A08R-ISMOBN10-C
200A08R-ISMOBN10-C
200A08R-ISMOBN10-C

200A08R-ISMOBN10-C

UGC DOR8259015
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$594.00 CAD - $594.00 CAD
$594.00 CAD
$594.00 CAD - $594.00 CAD
$594.00 CAD

Vendu en lots de : 1

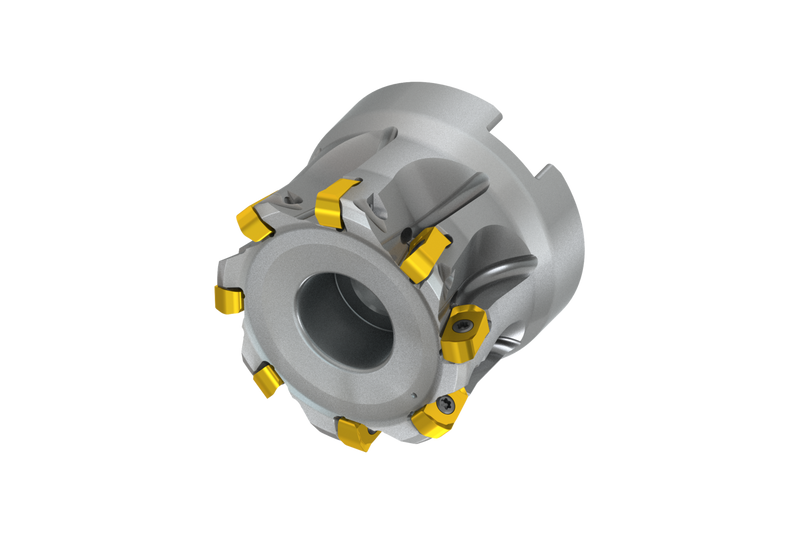

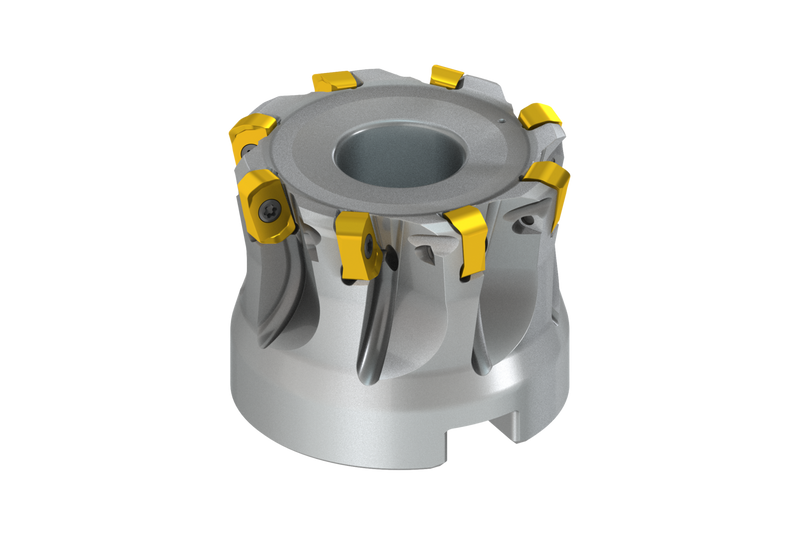

Fraise à avance rapide avec géométrie double négative qui utilise 8 plaquettes BNGX 10T3..., diamètre de coupe de 1,800" à 2,000" maximum avec un angle d'attaque de 29° et un alésage de raccordement de 0,750" selon DIN 8030-A, 1,575" fonctionnel et, arrosage centralisé et pas différentiel pour le surfaçage, le fraisage d'épaulement profond, le fraisage en plongée, le fraisage de rainures peu profondes, le fraisage de copiage, le fraisage en rampe, le fraisage en plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 0,039"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200A08R-ISMOBN10-C
Product Number8259015
Product FamilyISBN10

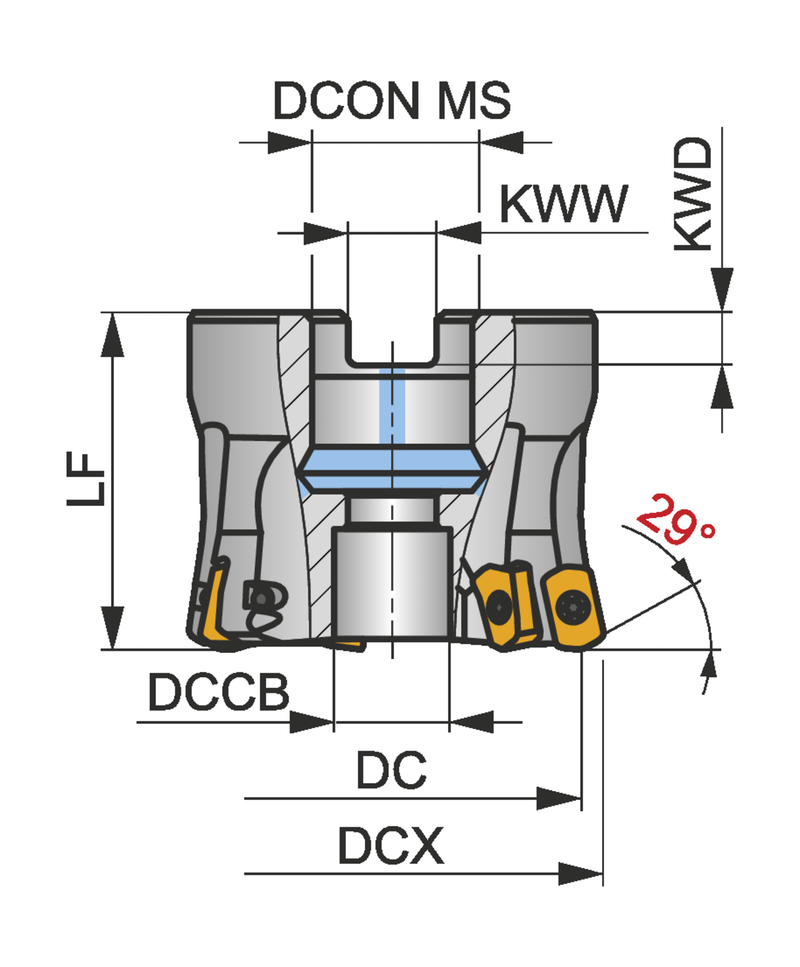

Dimensions
Cutting Diameter — in (DC)1.803"
Cutting Diameter — mm (DC)45.8 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSBN10
ShankFraise-scie DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8259015
EAN3603604031349
File Type Download
200A08R-ISMOBN10-C — 3D Model STP Download
200A08R-ISMOBN10-C — 2D Model DXF Download
200A08R-ISMOBN10-C — Line Drawing PDF Download
