E472M10
E472M10
E472M10

E472M10

UGC DOR6554535
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$74.04 CAD - $74.04 CAD
$74.04 CAD
$74.04 CAD - $74.04 CAD
$74.04 CAD

Vendu en lots de : 1

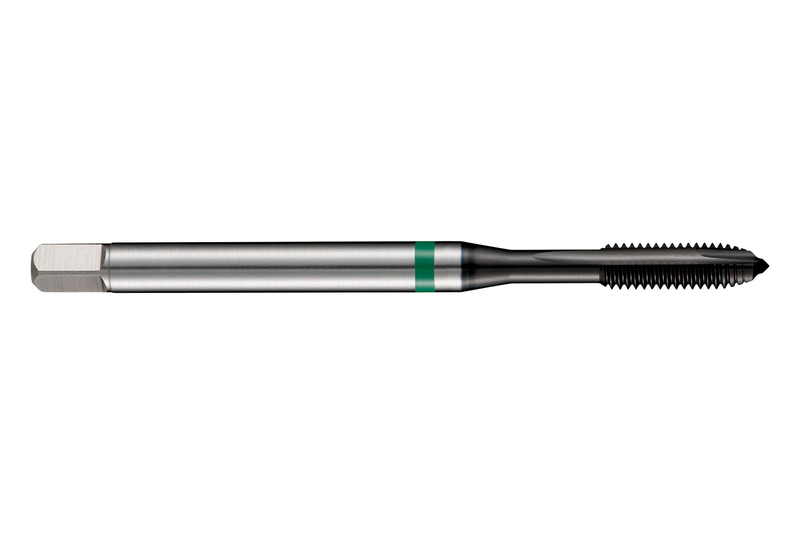

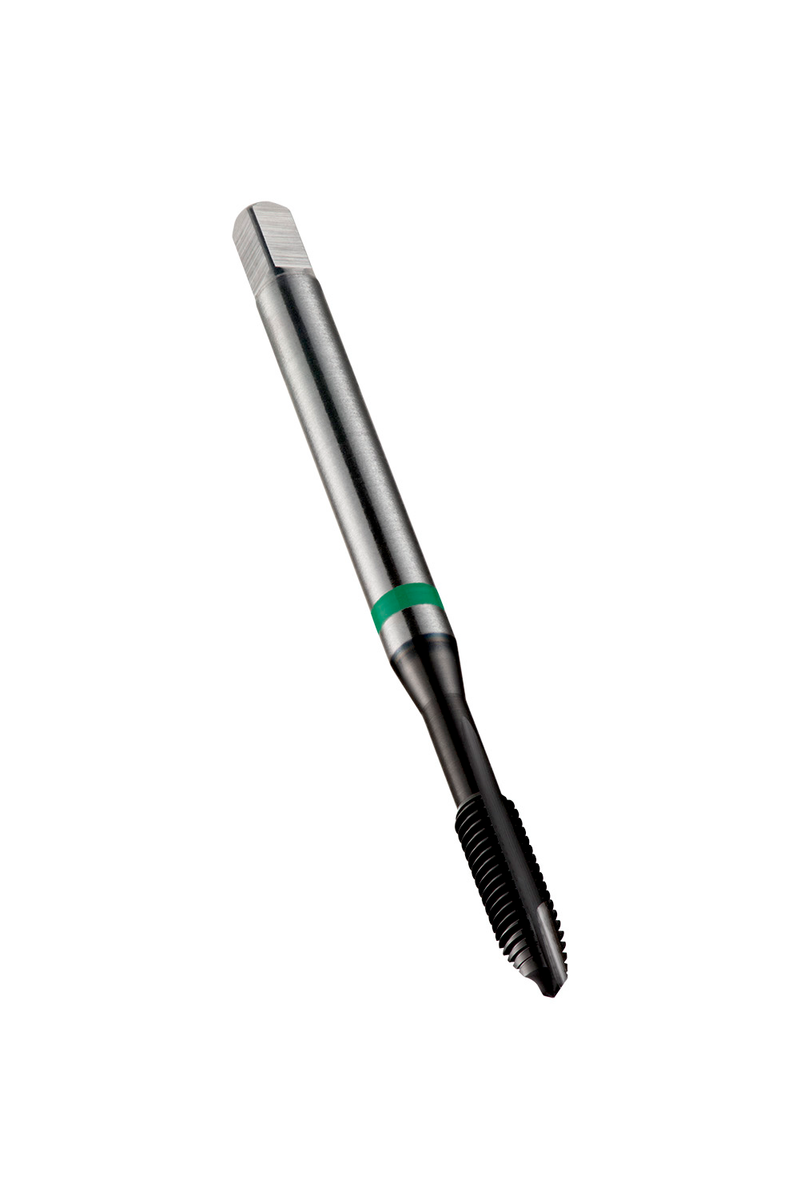

Taraud machine Green Shark à pointe spirale avec entrée B à 3.5-5 filets, pour filetage ISO-métrique M10 au pas de 1,50 mm et classe de tolérance 6H, dimensions selon la norme DIN 371 avec queue de 10,0 mm et carré d'entraînement de 8,0 mm, en HSS-E (acier rapide fritté) avec revêtement Super-B pour le taraudage de trous débouchants jusqu'à 2,5xD dans l'aluminium moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E472M10
GradeSUPER-B
Product Number6554535
Product FamilyE472
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.5354"
Usable Length — mm (LU)39.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number46554535
EAN7320760674765
File Type Download
E472M10 — Line Drawing PDF Download
