100A12R-S45HN06C-C
100A12R-S45HN06C-C
100A12R-S45HN06C-C

100A12R-S45HN06C-C

UGC DOR6760274
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,319.00 CAD - $1,319.00 CAD
$1,319.00 CAD
$1,319.00 CAD - $1,319.00 CAD
$1,319.00 CAD

Vendu en lots de : 1

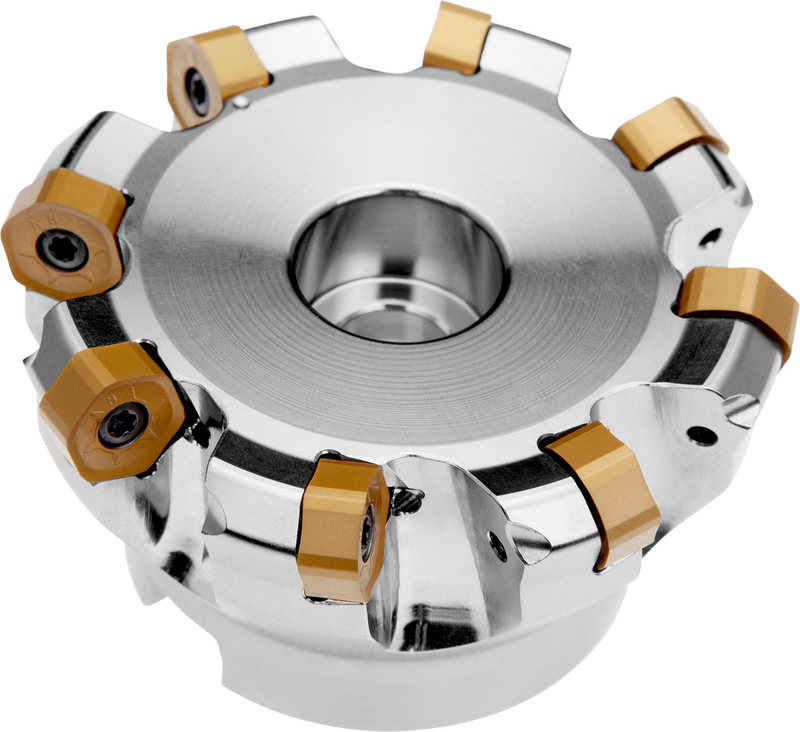

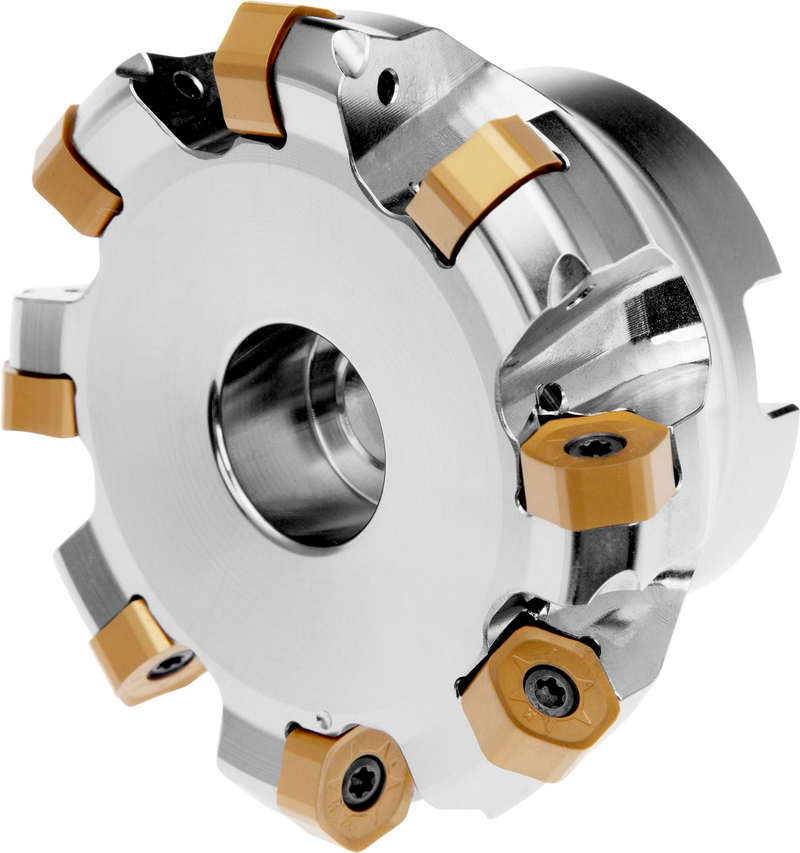

Fraise à surfacer avec géométrie double négative qui utilise 12 plaquettes double face HNGX 0604AN... ou XNGX 0604AN..., diamètre de coupe de 100 à 107,1 mm maximum avec un angle d'attaque de 45° et un alésage de raccordement de 32 mm selon DIN 8030-A, longueur en porte-à-faux de 50 mm, arrosage central et pas différentiel pour le surfaçage, le fraisage en plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 3,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A12R-S45HN06C-C
Product Number6760274
Product FamilySHN06C
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

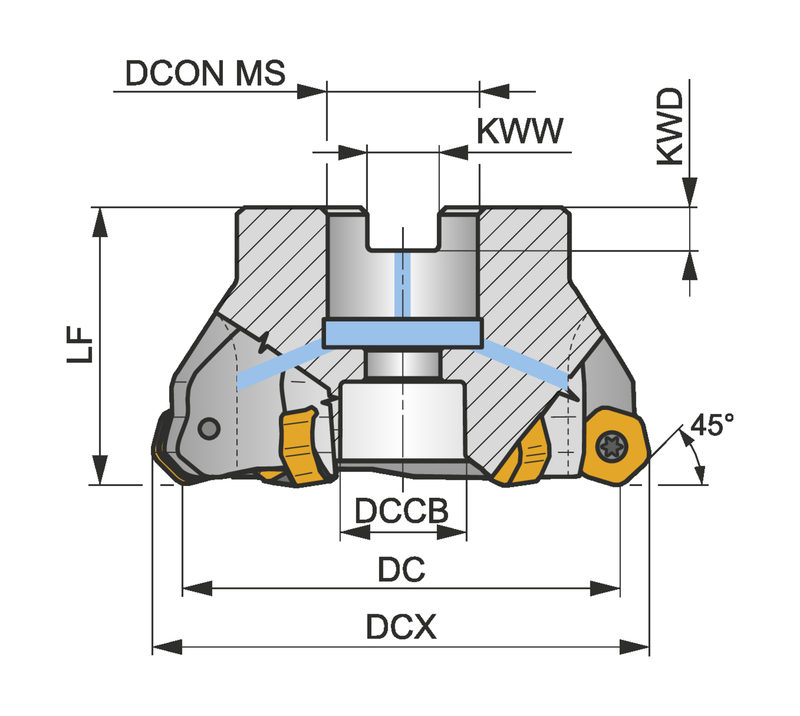

Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)12
Tool Information
Tool DesignSHN06C
ShankFraise-disque DIN 8030 A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760274
EAN3603602956200
File Type Download
100A12R-S45HN06C-C — 3D Model STP Download
100A12R-S45HN06C-C — 2D Model DXF Download
100A12R-S45HN06C-C — Line Drawing PDF Download
