300A07R-IS45HN06C-C
300A07R-IS45HN06C-C
300A07R-IS45HN06C-C

300A07R-IS45HN06C-C

UGC DOR6792951
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$973.00 CAD - $973.00 CAD
$973.00 CAD
$973.00 CAD - $973.00 CAD
$973.00 CAD

Vendu en lots de : 1

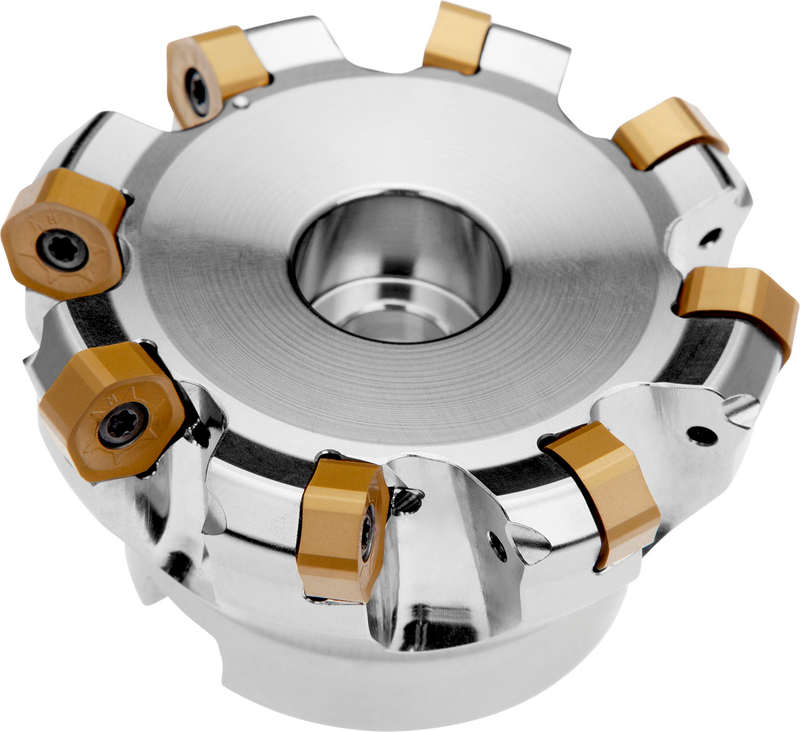

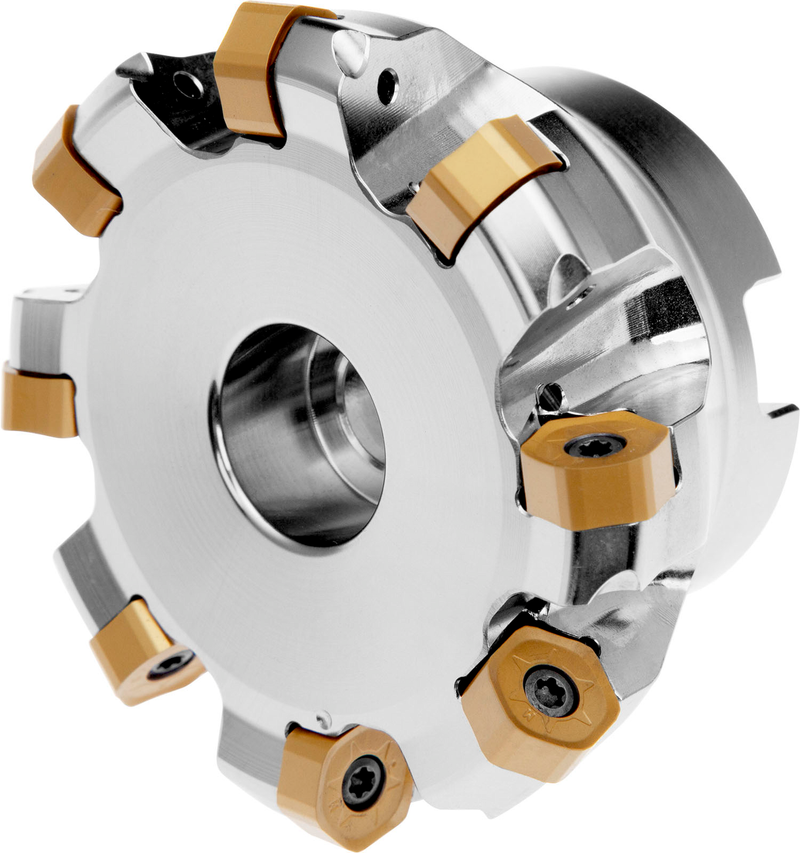

Fraise à surfacer à géométrie double négative qui utilise 7 plaquettes double face HNGX 0604AN.. ou XNGX 0604AN.., diamètre de coupe de 3.000 à 3.268" maximum avec un angle d'attaque de 45° et un alésage de connexion de 1.000" conformément à la norme DIN 8030-A, longueur de dépassement de 1.969", arrosage interne pour le surfaçage, l'usinage en ramping, le fraisage par plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 0.118"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)300A07R-IS45HN06C-C
Product Number6792951
Product FamilyISHN06C

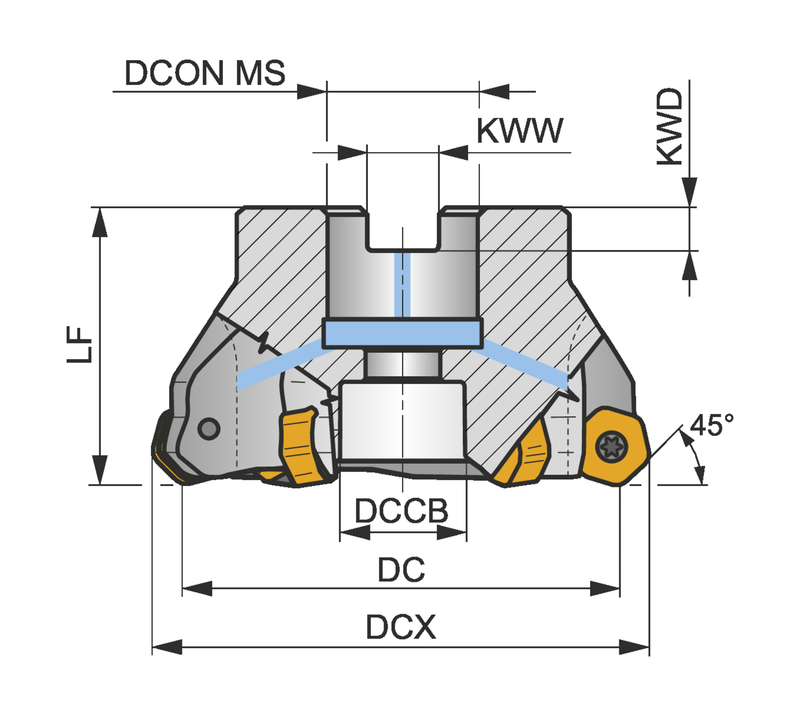

Dimensions
Cutting Diameter — in (DC)3.0"
Cutting Diameter — mm (DC)76.2 mm
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.01 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)7
Tool Information
Tool DesignSHN06C
ShankFraise à surfacer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6792951
EAN3603602989109
File Type Download
300A07R-IS45HN06C-C — 3D Model STP Download
300A07R-IS45HN06C-C — 2D Model DXF Download
300A07R-IS45HN06C-C — Line Drawing PDF Download
